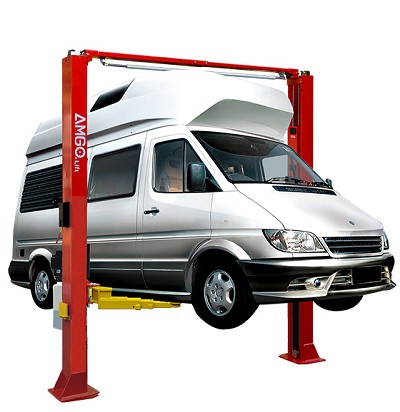

Amgo OHX-10 - 10,000-lbs Capacity Overhead 2 Post Car Lift at ToolPan

Product Features & Benefits
WARNING: California’s Proposition 65

Ready to lift smarter and load easier? The Amgo OHX-10 Overhead Two-Post Car Lift brings serious shop muscle with a 10,000-lb capacity and a versatile Super-Asymmetric design that lets you load vehicles in either asymmetric or symmetric configurations—whatever fits the job best. The overhead setup keeps the floor clear, while the single-point safety release lets you unlock both columns at once for quick, smooth operation. Strong, flexible, and built for busy bays, the Amgo OHX-10 makes lifting everything from compact cars to larger vehicles feel effortless and confidence-boosting.

10,000lbs capacity.
Dual hydraulic direct-drived cylinders made on high standard.
"Super-Asymmetric" to load different vehicles in an asymmetric or symmetric configuration.
Single point safety release, allows the operator to disengage both columns simultaneously.
Self lubricating UHMW Polyethylene sliders and bronze bushings.
Clear floor design, provides unobstructed floor use.
Single piece column allowing for easier installation.
Stackable rubber pads and 1.5", 2.5", 5".
Optional Width Adjustable Kit.(Not Included) Part #21004.
Manufacturer Warranty:

2 Years on Electrical Components
3 Years on Hydraulics
5 Years on Steel Lifting Structure

AMGO OHX-10 is well known for its excellent performance in elaborately structure. It boasts 10,000 lbs capacity, is built with single-piece column, split-structure top beam and extremely long carriages that ensuring easier installation and easier maintenance. Suitable for workshop and garage over 12ft, it offers width extension as option, and features AMGO Super Asymmetric technology for added convenience during loading.

Specifications:

Lifting Capacity: 10,000 lbs
Max. Lifting Height (Without Extension Adapters): 71 15/32"
Max. Lifting Height (With Extension Adapters): 80 15/32"
Overall Height: 144"
Overall Width: 134 15/16" (140 7/8" with Adjustable Width Kit)
Drive-Thru Clearance: 100 3/16" (106 3/32" with Adjustable Width Kit)
Width Between Columns: 112 19/32" (118 1/2" with Adjustable Width Kit)
Minimum Pad Height: 3 3/8"
Lifting Time: 57 S
Motor: 2 HP, 220V/60Hz, Single Phase
Gross Weight: 1,612 lbs
Shipping Dimension: 145-1/16" L X 17-3/4" W X 33" H
