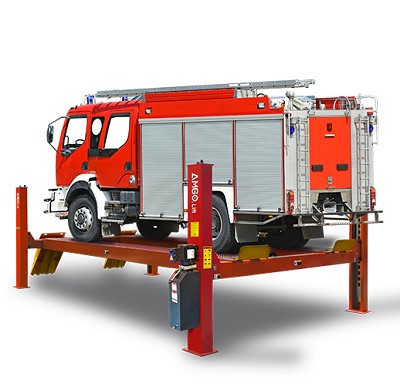

Amgo PRO-30 - 30,000-lbs Capacity Super-Duty Truck 4 Post Lift at ToolPan

Product Features & Benefits
WARNING: California’s Proposition 65

Need to lift the biggest vehicles in your fleet without breaking a sweat? The Amgo PRO-30 Super-Duty 4-Post Truck Lift is built to handle serious lifting with confidence, boasting a massive 30,000-lb capacity for construction equipment, municipal trucks, and heavy commercial vehicles. Multiple primary safety locks and a cable-slack protection system keep every lift secure and stable, even under extreme loads. Strong, reliable, and ready for the toughest jobs, the PRO-30 turns oversized vehicles into everyday work—no stress, just smooth, powerful lifting.

30,000 lbs capacity.
AMGO ETL certified power unit comes as standard.
Mechanical self-locking safety device with air-driven lock release.
Both primary multiple safety locks and cable-slack protection system are equipped as standard.
Cable-driven, utilizing aircraft standard high quality cables.
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
Non-skid diamond platforms.
Manufacturer Warranty:

2 Years on Electrical Components
3 Years on Hydraulics
5 Years on Steel Lifting Structure

The AMGO super duty series offers a sturdy oversized build and advanced dual-safety systems, ensuring the optimum lifting and minimum maintenance required. The PRO-30 has a 30,000lbs capacity, incorporates spacious non-skid diamond platforms, is ideal for servicing sizeable vehicles such as construction, municipal, and commercial vehicles.

Specifications:

Lifting Capacity: 30,000 lbs
Lifting Time: 133s
Overall Length (Inc Ramps): 307 1/8"
Overall Length (No Ramps): 256 7/16"
Overall Width: 149 3/8"
Width Between Columns: 131 13/16"
Max. Lifting Height: 74 13/16"
Max. Lock Height to top of runway: 71 11/16"
Overall Height: 91 13/16"
Minimum Height: 10 7/16"
Max. Underneath Height: 65 7/8"
Max. Lock Underneath runway: 62 3/4"
Drive-Thru Clearance: 117 13/16"
Width Between Runways: 44 7/8" - 54 3/4"
Outside Edge of Runways: 92 15/16" - 102 3/4"
Gross Weight: 5,461 lbs
Motor: 2,0HP, 220V / 60Hz, Single Phase
Shipping Dimension: 317 1/2" L X 24 1/2" W X 39 1/2" H
