• 12,000 LB. Capacity
• Commercial Grade

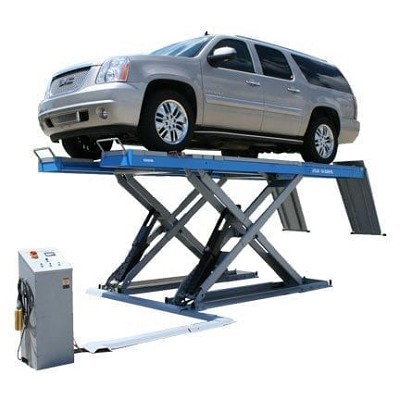

• Scissor Alignment Lift
• Built in Slip Plates and Alignment Turntables Included
• Turntable Covers Included
• Open Center Design for Easy Access
• Air-Operated Single Point Lock Release (External Air Supply Required)
• Airline Kit Included
• Rear Cross Beam for Extra Stability Included
• Extra Long 72" Ramps Standard
• Precise Platform Leveling Accuracy
• Separate Self-Contained Control Panel
• Emergency Manual Pump for Lowering
• 19 Locking Positions
• CE Certified
• Can be Surface Mounted or Flush Mounted
• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• 2 Year Structural/1 Year Hydraulic Manufacturer Warranty
• Shipping Weight: 5,000 lb.

Atlas® 12ASL-N Alignment Scissor Lift Specifications:

• Lifting Capacity: 12,000 LB
• Lifting Height: 84 1/4" (7' 1/4") (Surface Mounted)
• Lowered Height: 11 1/2"
• Overall Width: 86 3/8" (7' 2 3/8")
• Overall Length with Approach Ramps: 250" (20' 10")
• Overall Length without Approach Ramps: 197" (16' 5")
• Approach Ramp Length: 72" (6')
• 4-Wheel Alignment Wheelbase: Max. 168 in.Min. 90 in.
• 2-Wheel Alignment Wheelbase: Max. 172 in.Min. 86 in.
• Runway Width including Rail: 23 3/4" (1' 11 3/4")
• Width Between Runways: 39 1/4"
• Width Between Runway Rails: 34 3/8"
• Air Requirement: 90-120 PSI
• Motor/Electrical Requirement: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 5,000 lbs.
• Requires a minimum of 6" of concrete with a 3000 psi. rating
