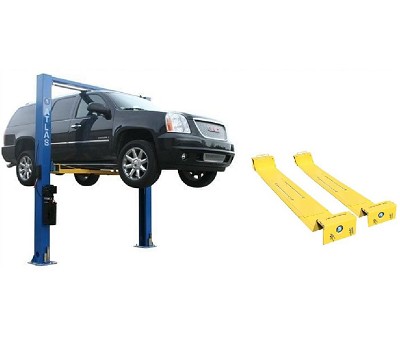

Atlas 9OHSC-COMBO 2-Post Lift & Lawn Mower Adapter Combo at ToolPan

Single piece columns and extra-long carriages to ensure years of trouble free service.
The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.
9,000 lb. Capacity
Overhead, Open-Floor Lift
Overall Height: 142" (11' 10")
3-Stage Front Arms/2-Stage Rear Arms
Automatic Arm Restraints
Single-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Drive Cylinders
Free 12 Piece Truck Adapter Set
Mounting Hardware Included
Manufacturer Warranty:

2 Years for Hydraulic (Parts Only- No Labor)
5 Years Lifting Structure

The 9OHSC incorporates a single piece 11' 10” formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle.

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or “Mr. Homeowners” who demand the highest quality at the absolute best price.
Engineered and manufactured to lift vehicles ranging from Small Cars to a Suburban®.

Atlas 9OHSC Two-Post Lift Specifications:

Capacity: 9,000 LB.
Overall Height: 142" (11' 10")
Overall Floor Width: 133 1/2" (11' 1-1/2")
Outside Column to Outside Column: 125 1/2" (10' 5-1/2")
Maximum Lift Height (Without Adapters): 76 3/4"
Maximum Lift Height (With Adapters): 87 3/4"
Minimum Arm Height: 4"
Inside Column: 109 1/2” (9' 1-1/2”)
Drive Thru: 100 1/2” (8' 4-1/2”)
Column Size: 8" x 9 3/8"
Column Thickness of Steel: 5mm
Base Of Lift: 16 3/4" x 17 3/4"
Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 1,430 LBS.
Adapter Heights: 4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size: 1.5”
Requires a minimum of 4" of concrete with a 3000 psi. rating

The Atlas LMA Lawn Mower Adapter Specifications (VARY BY LIFT AND WHEELBASE):

Capacity: Up to 5,000 lbs
Adjusts in Width: 8' to 11'
Wheel Base: 32" to 90"
Wheel Well Width: 12"
Thickness of Steel: 3/16"
Shipping Weight: 600 lbs.
Will fit lift arms up to 5 1/2" wide

Atlas Equipment 9OHSC-COMBO - 9,000 lb. Capacity Overhead 2-Post Auto Lift & Lawn Mower Adapter Combo

Part #: ATEATTD-9OHSC-COMBO

Availability: In Stock

Atlas Equipment 9OHSC - 9,000 lb. Capacity Overhead 2-Post Auto Lift & Lawn Mower Adapter Comb

Retail Price:$9,098.25

Your Savings:$3,899.25(43%)

Our Price: $5,199.00
