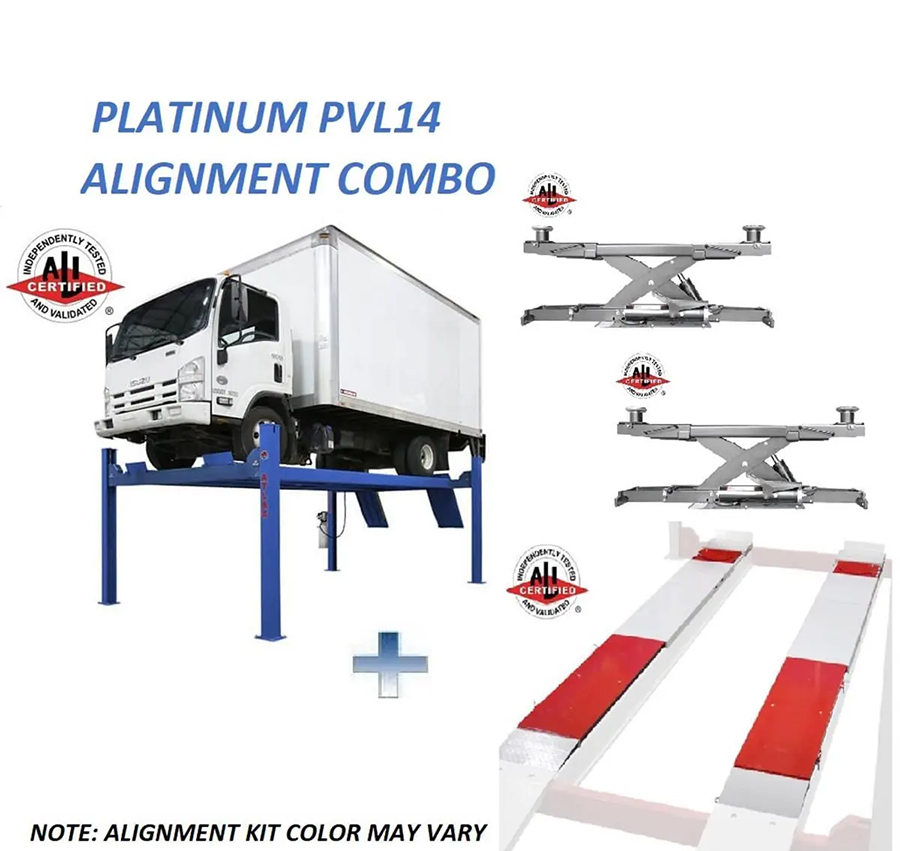

• This ALI Certified Combo Includes:
• PVL14 14,000 lb. 4 Post Lift
• Two RJ7000 Rolling Jacks
• Slip Plates
• Turntables
• Turntables and slip plates can be removed and added when needed
• Heavy Duty, Commercial Grade
• Lift is Extra Tall, Extra Wide & Extra Long
• Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)
• Mounting Hardware Included
• Jacks are Air Over Hydraulic operated
• Truck Adapter Set for each Jack Included
• One Year Manufacturer Warranty (Parts Only, No Labor)

The Atlas® Platinum PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles.

The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

The Atlas® Platinum PVL14 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.

This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

This combo package also includes two of the the popular Atlas® Platinum RJ7000 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Atlas® PVL14 Specifications:

• Capacity: 14,000 lb.
• Lifting Height: 76 1/2" (6' 4 1/2")
• Overall Width Of Columns (Without Motor): 131 3/4" (10' 11 3/4")
• Overall Width Of Columns (With Motor): 140 1/2" (11' 8 1/2")
• Overall Length With Approach Ramp: 251 1/2" (20' 11 1/2")
• Length Between Columns: 196" (16' 4")
• Runway Length: 205 1/2" (17' 1 1/2")
• Runway Width: 20"
• Thickness Of Runway: 7"
• Width Between Runways: 42 3/4" (w/ Rail 39 1/4")
• Outside Runway To Outside Runway: 83 1/8" (6' 11 1/8")
• Clearance Under Runways: 69 1/2" (5' 9 1/2")
• Clearance Between Columns: 116 3/8" (9' 8 3/8")
• Height Of Columns: 92 1/2" (7' 8 1/2")
• Maximum Wheel Base: 195" (16' 3")
• Drive Thru: 94 1/2" (7' 10 1/2")
• Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Motor/Electrical Requirement: 220 volt single (1) phase.(A 30 amp breaker is recommended)
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight: 2,800 LBS.
• Requires a minimum of 6" of concrete with a 3000 psi. rating

The Atlas® Platinum RJ7000 Specifications:

• Minimum Width: 36"
• Maximum Width: 45 1/2"
• Distance Between Runway Capability: 36" - 45"
• Minimum Lifting Height: 12 1/2"
• Maximum Lifting Height (w/ Adapters): 27 1/2"
• Double Screw-Up Adapter Pad 1 1/2" - 4"
• Air Requirement: 70-115 PSI
• Shipping Weight: 390 lbs
