• 16,000 lb. Capacity
• Heavy Duty Commercial Grade Construction
• Super-Balanced with Very Precise Platform Leveling Accuracy for Wheel Alignment

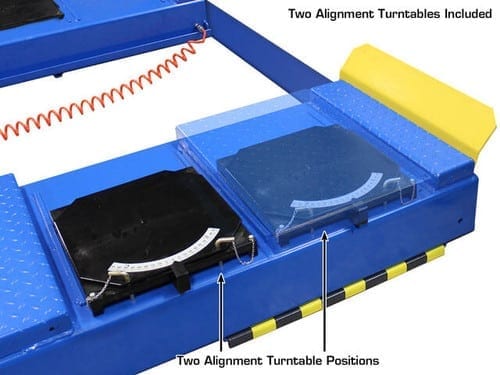

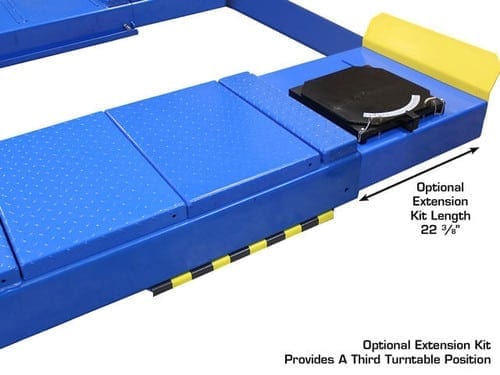

• Recessed Positions for Turntables

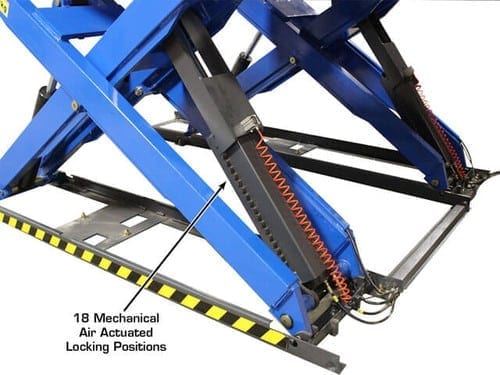

• Air Operated Mechanical Safety Locks (exterior air supply required
• Emergency manual pump for lowering
• Overload Valve Included
• Lowering Speed Valve Included
• Mounting Hardware Included

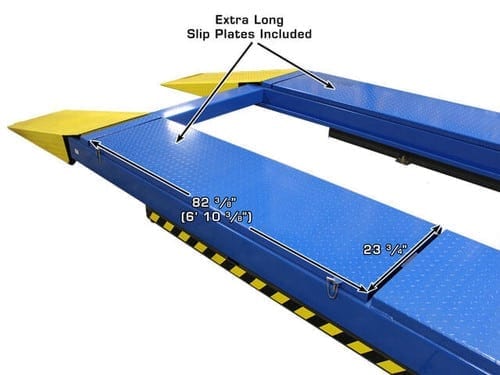

• Extra Long Slip Plates Allow For 4-Wheel Aligning Of Wheelbases From 96" to 184"
• 1 Year Manufacturer Warranty on Hydraulics. (Parts Only, No Labor)
• 2 Years Manufacturer Warranty on Lifting Structure. (Parts Only, No Labor)

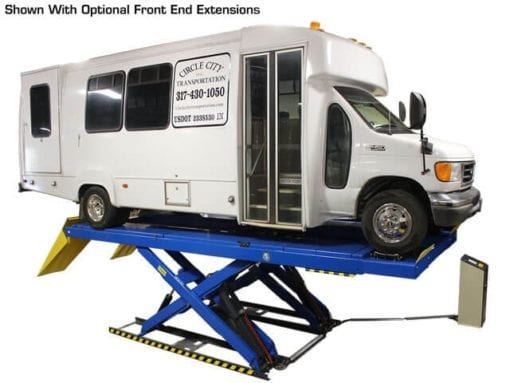

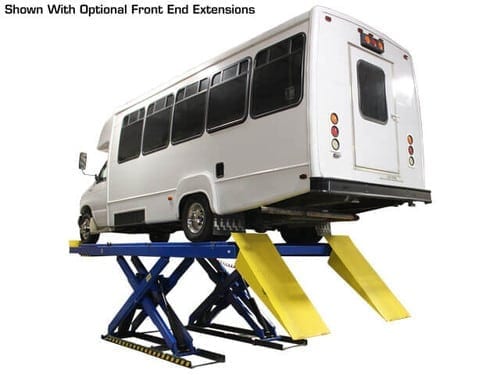

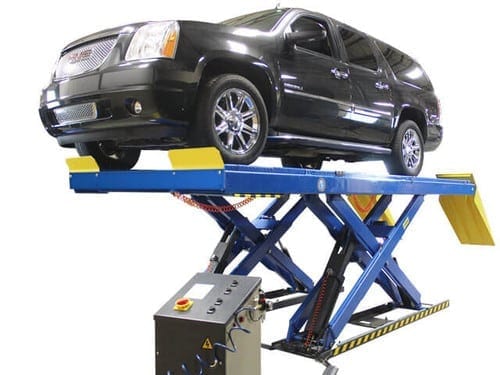

The Atlas® PX16A 16,000 lb. capacity scissor alignment lift is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheel base trucks and vans.

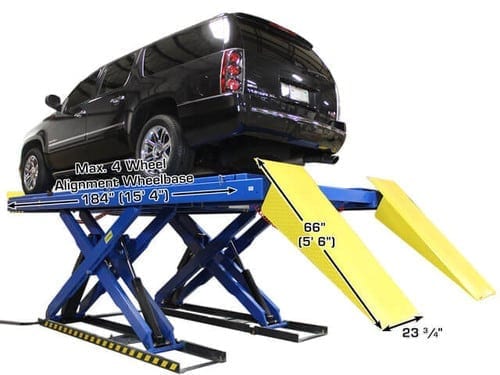

The Atlas® PX16A allows the operator to perform 4-wheel alignments for vehicles with wheel base lengths from 96 inches to 184 inches.

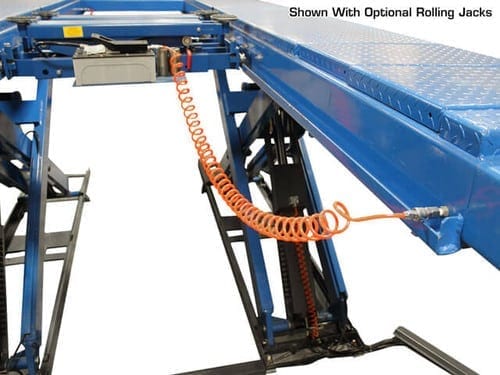

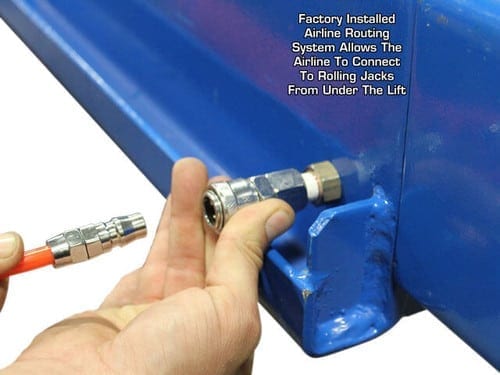

The Atlas® PX16A includes a set of turntables, built in slip-plates, and runway jack rails designed to accommodate rolling jacks. The lift is equipped with a semi enclosed air line kit routing system to accommodate the optional airline kit. This air line kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor.

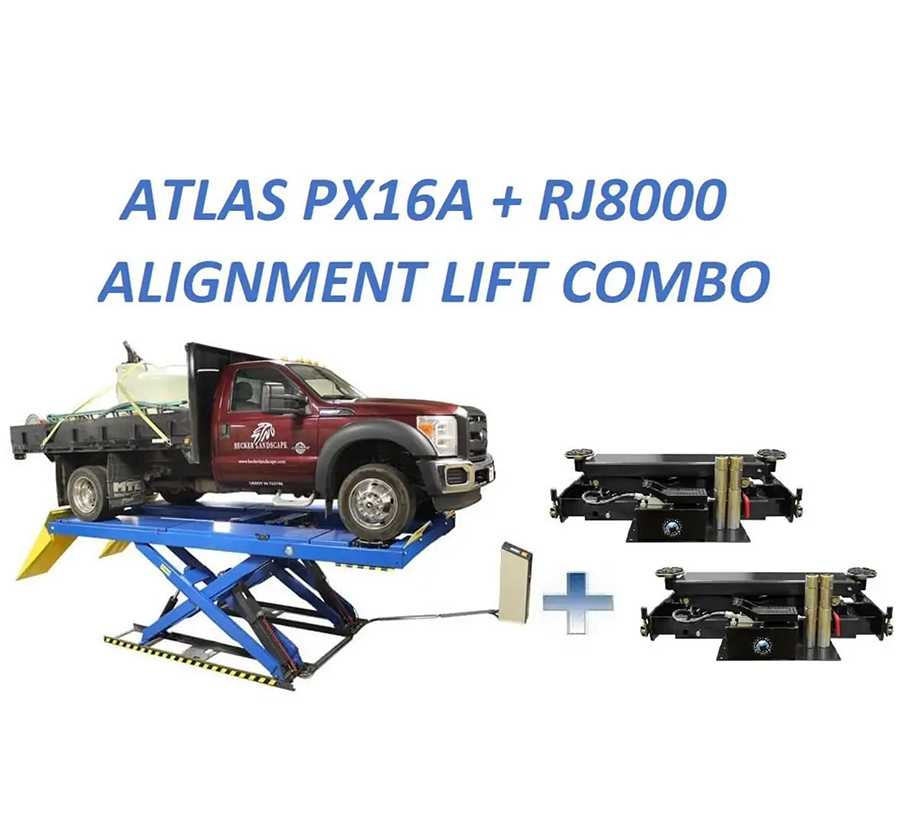

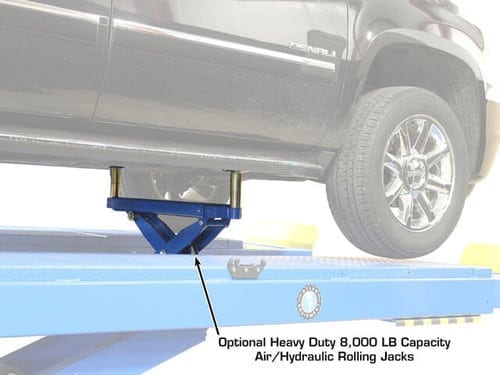

This combo package also includes two of the the popular Atlas® RJ8 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Atlas® PX16A Specifications

• Capacity: 16000 lbs
• Minimum Lift Height: 13 1/4"

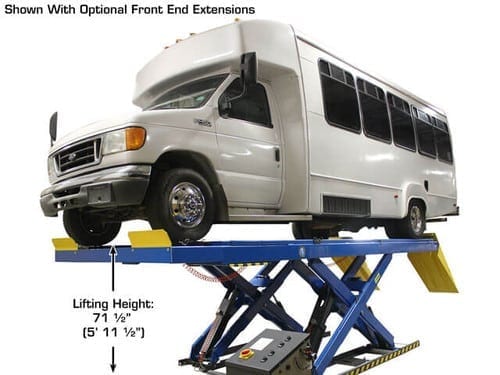

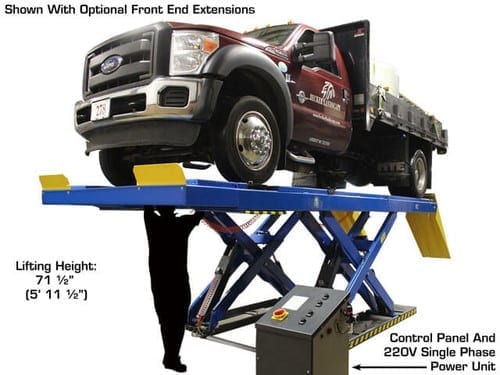

• Maximum Lift Height Above Floor: 71 1/2" (5' 11 1/2"))

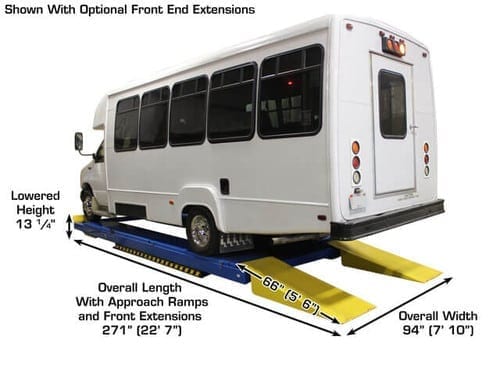

• Overall Length w/ Ramps: 271" (22' 7")

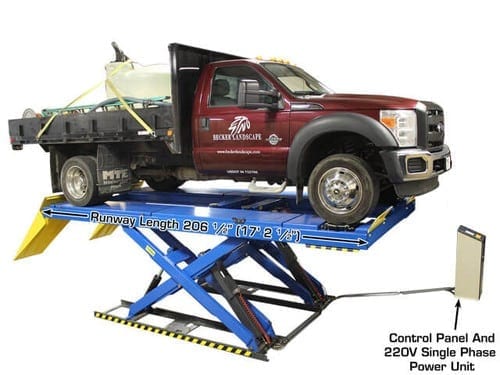

• Overall Length w/o Ramps: 206 1/2" (17' 2 1/2")
• Overall Width: 94" (7' 10")
• Runway Width: 23 3/4"

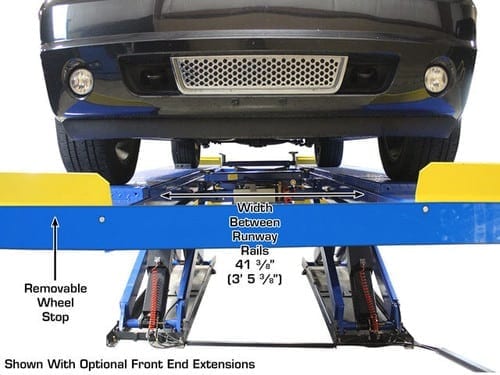

• Between Runways: 44 7/8" at top/41 3/8" at rails
• Air Requirement: 85-120 PSI

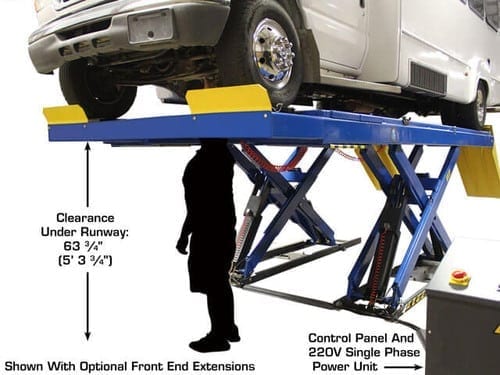

• Motor/Electrical Requirement: 220volt +/- 5% (209-231 volts)/1phase 30amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 6200 lbs.

Atlas® RJ8000 Specifications

• Maximum Capacity 8,000 lb.
• Maximum Width 66 1/2" (5' 6 1/2")
• Minimum Width 40" (3' 4")
• Distance Between Runway Capability 34 1/2"-55"
• Maximum Lifting Height (With Adapters) 30"
• Air Requirement 70-115 PSI (External Air Supply Required - NOT INCLUDED)
• Shipping Weight 390 lbs.
• Adapter Heights 2 Each 2", 3"
• Arm Hole/Adapter Peg Size 1.5"
