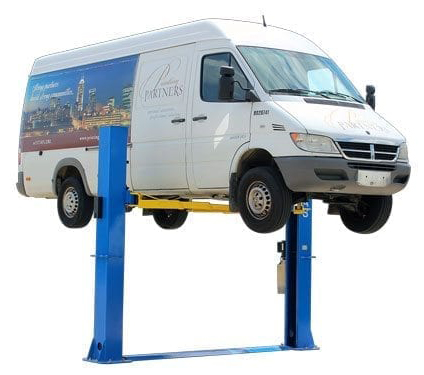

The Atlas® BP10000X Commercial Two-Post Base-Plate Lift is built to handle the heavy stuff—without demanding a skyscraper ceiling. Designed specifically for low-ceiling garages, this powerhouse delivers a 10,000-lb lifting capacity while still fitting comfortably in shops with ceilings as low as 11 feet. Whether you’re lifting a one-ton dually or something as compact as a Smart Car, the BP10000X is built to do it all with confidence and control.

What makes this lift shine is its single-point safety lock release and extra-reinforced oversized columns, complete with a welded center gusset for added strength and stability. With a maximum lift height of 86 3/8 inches (with adapters), you get serious working room without sacrificing safety or shop space. Tough, reliable, and purpose-built for real-world shops, the Atlas BP10000X proves you don’t need tall ceilings to lift big vehicles like a pro.

10,000 lb. Capacity
Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 111 7/8" (9? 3 7/8")

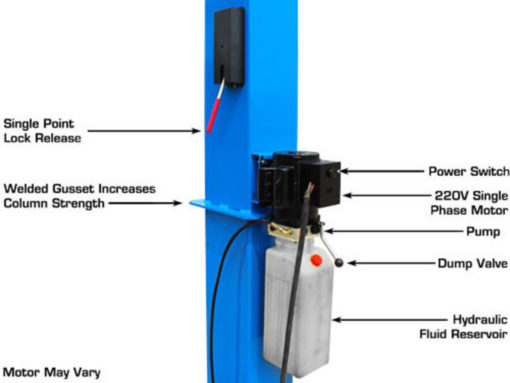

Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously

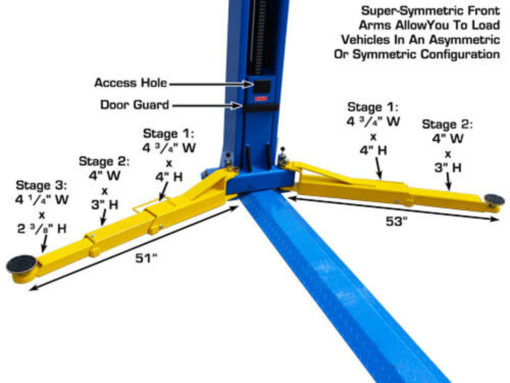

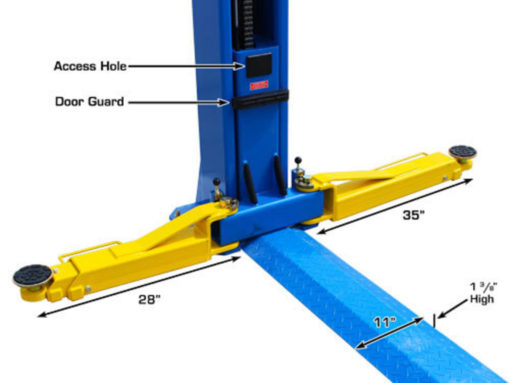

Super-Symmetric Arms

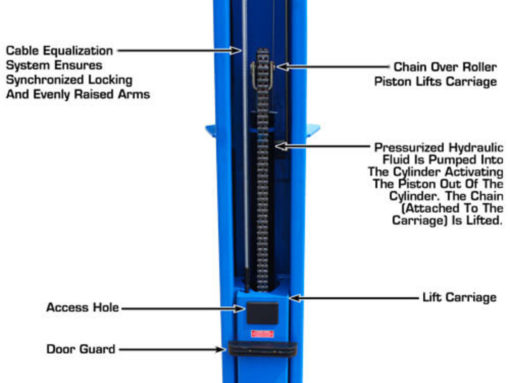

Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
Welded Support Gussets Increase Column Strength.

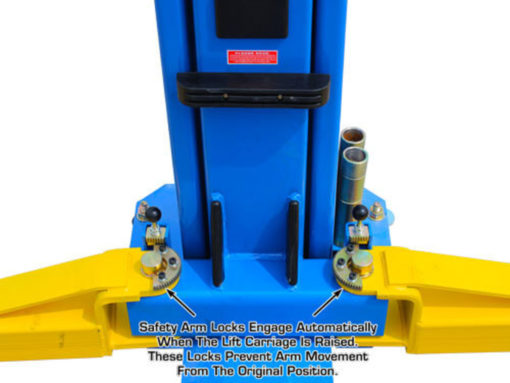

Automatic Arm Restraints
Powder Coat Finish

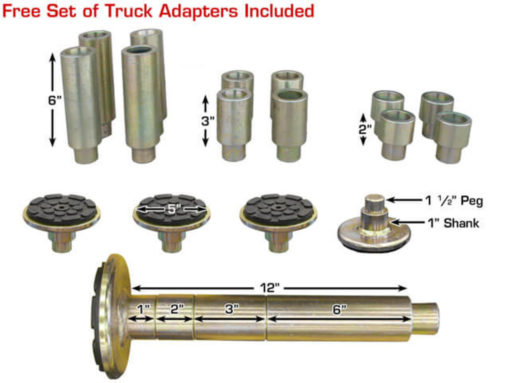

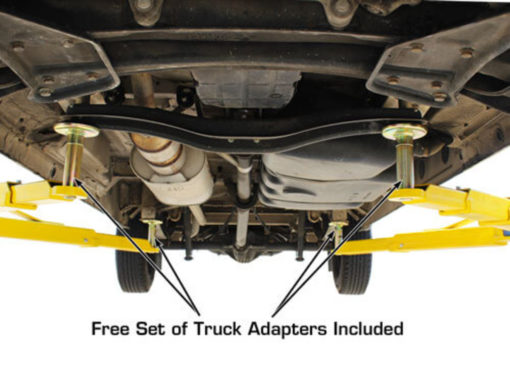

Free 12 Piece Truck Adapter Set

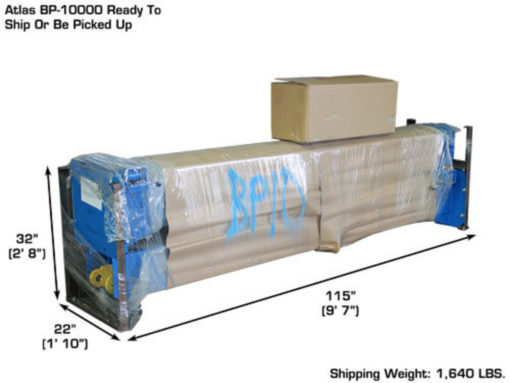

Shipping Weight: 1,640 LBS.
2 Years Manufacturer Warranty on Material & Workmanship
5 Years Manufacturer Warranty on Lifting Structure
Shipping weight: 1,640 lb.

Optional Add-On (Not Included)

Baseplate Extension Kit

Atlas BP10000X Lift Specifications:

Capacity: 10,000 LB.

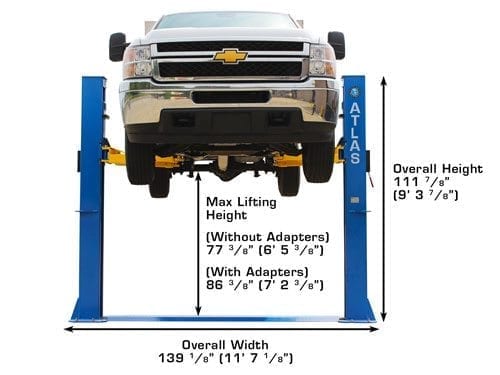

Overall Height: 111 7/8" (9' 3 7/8")

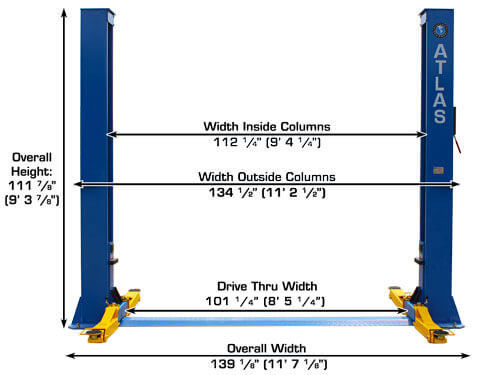

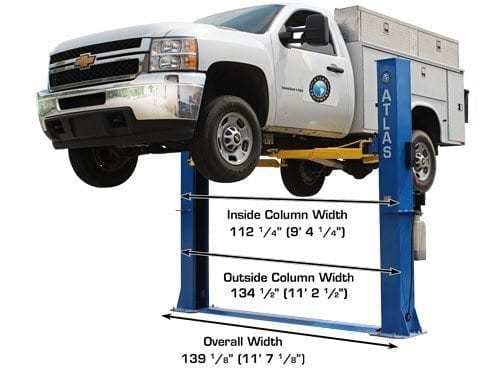

Overall Floor Width: 139 1/8" (11' 7 1/8")
Outside Column to Outside Column: 134 1/2" (11' 2 1/2")

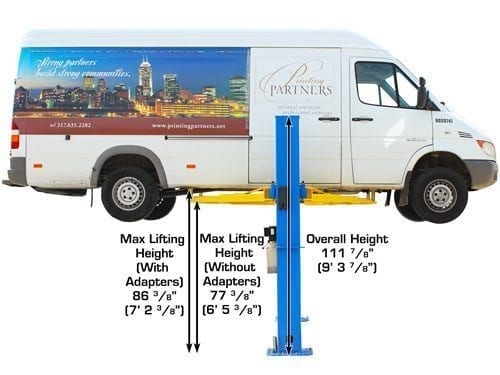

Maximum Lift Height (Without Adapters): 77 3/8"

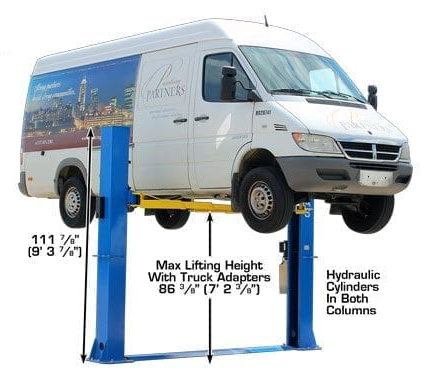

Maximum Lift Height (With Adapters): 86 3/8"
Minimum Arm Height: 4"

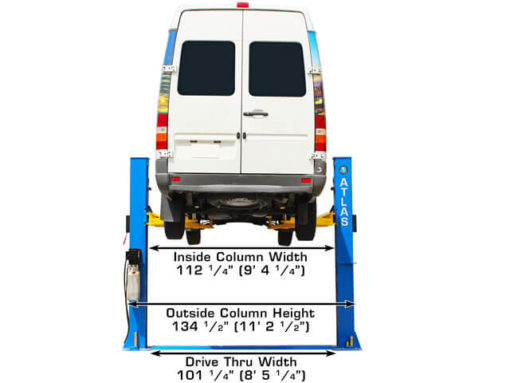

Inside Column: 112 1/4” (9' 4 1/4”)
Drive Thru: 101 1/4” (8' 5 1/4”)

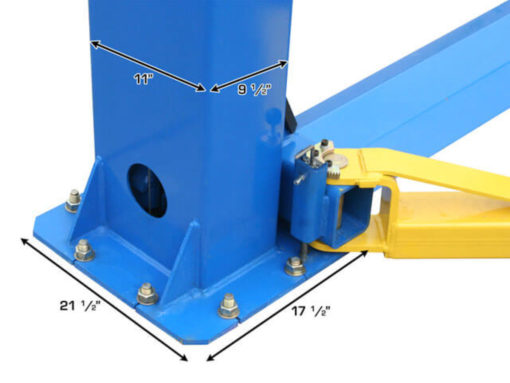

Column Size: 9 1/2" x 11"

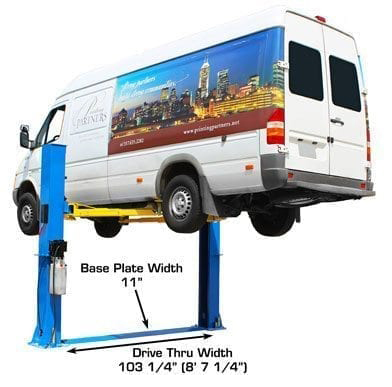

Base Of Lift: 17 1/2" x 21 1/2"
Motor/Electrical Requirement: 220 volt single (1) phase.A 30 amp breaker is recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 1,640 LBS.
Adapter Heights: 4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size: 1.5”
Requires a minimum of 4" of concrete with a 3000 psi. rating

Atlas Equipment BP10000X - 10,000 lb. Capacity 2-Post Base-Plate Automotive Lift - 220V

Part #: ATEATTD-BP10000X

Availability: In Stock

Atlas Equipment ATTD-BP10000X - 10,000 lb. Capacity 2-Post Base-Plate Automotive Lift

Retail Price:$6,823.25

Your Savings:$2,924.25(43%)

Our Price: $3,899.00
