• ALI CERTIFIED
• Simultaneous operation of all columns
• LCD screen shows exact lifting height of each column
• Electronic system ensuring synchronization of all columns
• Double-safety guaranteed by both hydraulic flow control and mechanical locks
• Portable columns make your work easy and comfortable
• Can be Expanded from a four (74,000 lb. capacity) column system to a six (111,000 lb. capacity) or eight (148,000 lb. capacity) column system
• Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
• Emergency stop button on every column
• Four 32' column connecting cables included
• 2.2 Kw 24V DC motor with two batteries per column
• Lifting capacity per column: 18,500
• Weight per column: 1,700 lbs
• Shipping Weight (for four columns): 6800 lbs
• 2 Years Limited Manufacturer Warranty

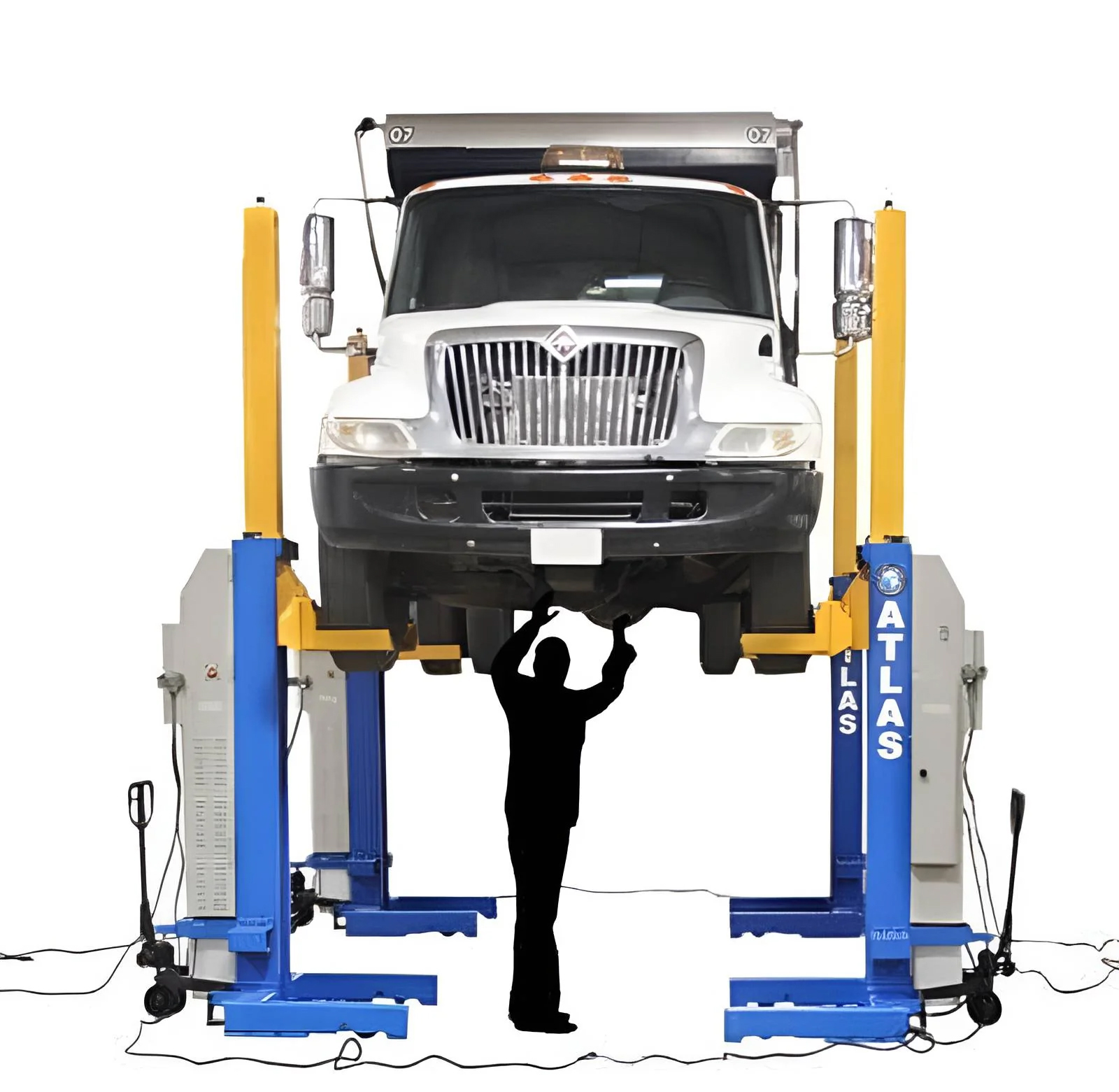

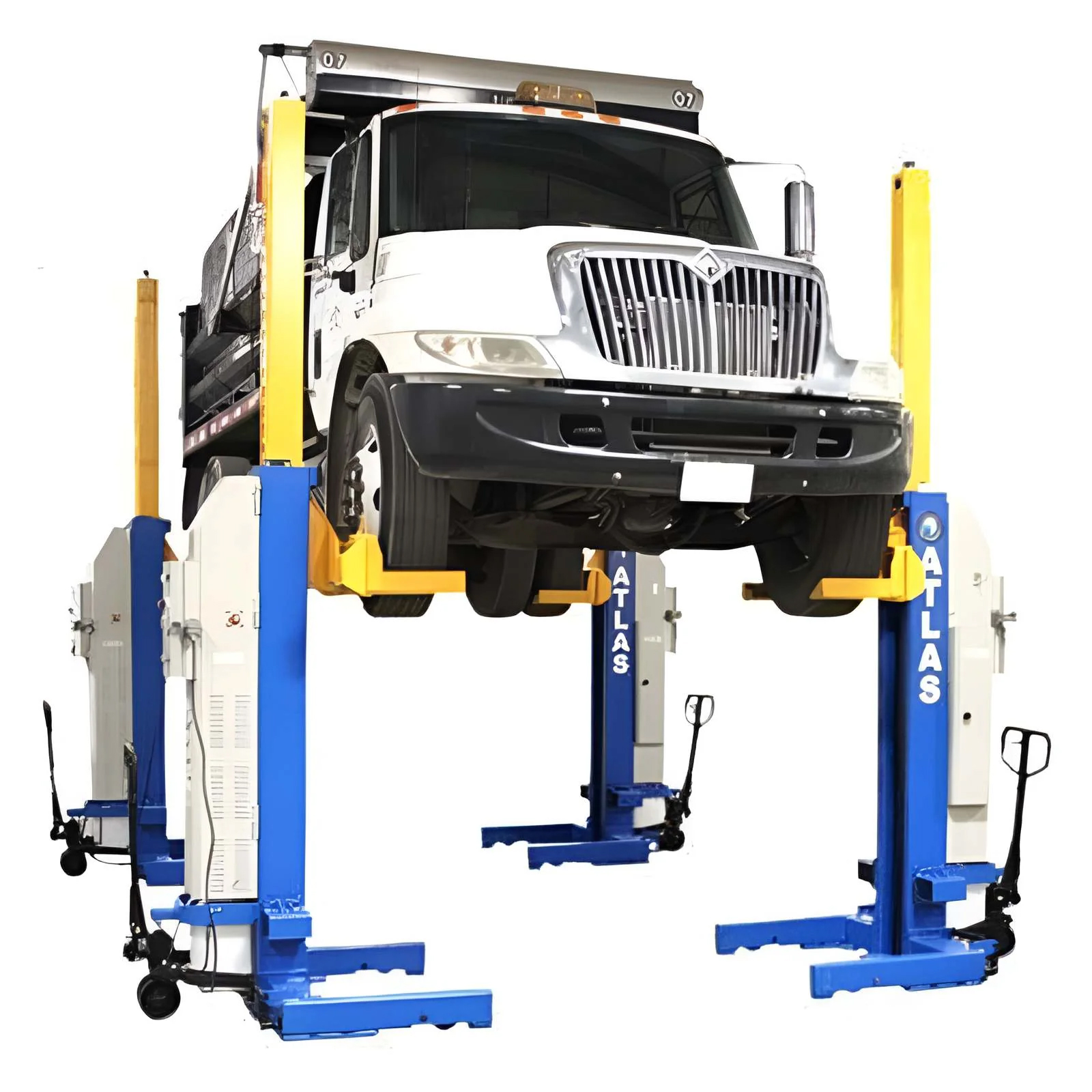

The ALI Certified Maxima® mobile column lift system is the perfect choice for any repair shop that needs to safely raise those heavier trucks but has limited bay space. Each heavy duty mobile column is DC motor powered and equipped with a pair of rechargeable batteries. This, coupled with the hydraulic pallet jack system on each column, allows for unparalleled freedom of movement. The columns may even be moved outside for use on a level concrete surface with a minimum thickness of six (6) inches. The mobile columns can be easily stored out of the way when not in use.The Maxima® ML4034BC mobile column set offers you full lifting capacity for both short and long wheel base vehicles. The lifting capacity and maximum vehicle wheelbase length may be increased by adding 2 or 4 extra columns. Easily adjustable forks can accommodate tire diameters from 19 inches to 44 inches. Each column is equipped with an LCD screen, an emergency stop button, and has a lifting capacity of 18,500 lbs.Battery power lasts 10-20 lifts depending on load and is recharged with attached 110V Single (1) phase cord.Optional Maxima® Tripod Support Stands can be used to support vehicles for wheel service.

Specifications:

• Capacity per Column: 18,500 LB.
• Motor: 2.2 Kw 24V DC motor with two batteries per column
• Max. Lifting Height: 67" (5' 7")
• Overall Height: 145" (12' 1")
• Resting Height: 88 1/2" (7' 4 1/2")
• Width: 43 1/2" (3' 7 1/2")
• Length: 55 1/2" (4' 7 1/2")
• Column Width: 13 1/4"
• Warranty: 2 Year Limited
• Shipping Weight (For Four Columns): 6,800 LB. each
• Shipping Weight Per Column: 1,700 LB. each
• Max Tire Diameter: 44"
• Min Tired Diameter: 19"
