• 12,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra Long
• Air Operated Single Point Lock Release (External Air Supply Required)
• Lock Ladder Design
• Double Lock Safety System
• Steel Approach Ramps Included
• Rubber Wheel Chocks Included (2 Pcs)
• Alignment Kit Included (Slip Plates, Spacers, Ramps)

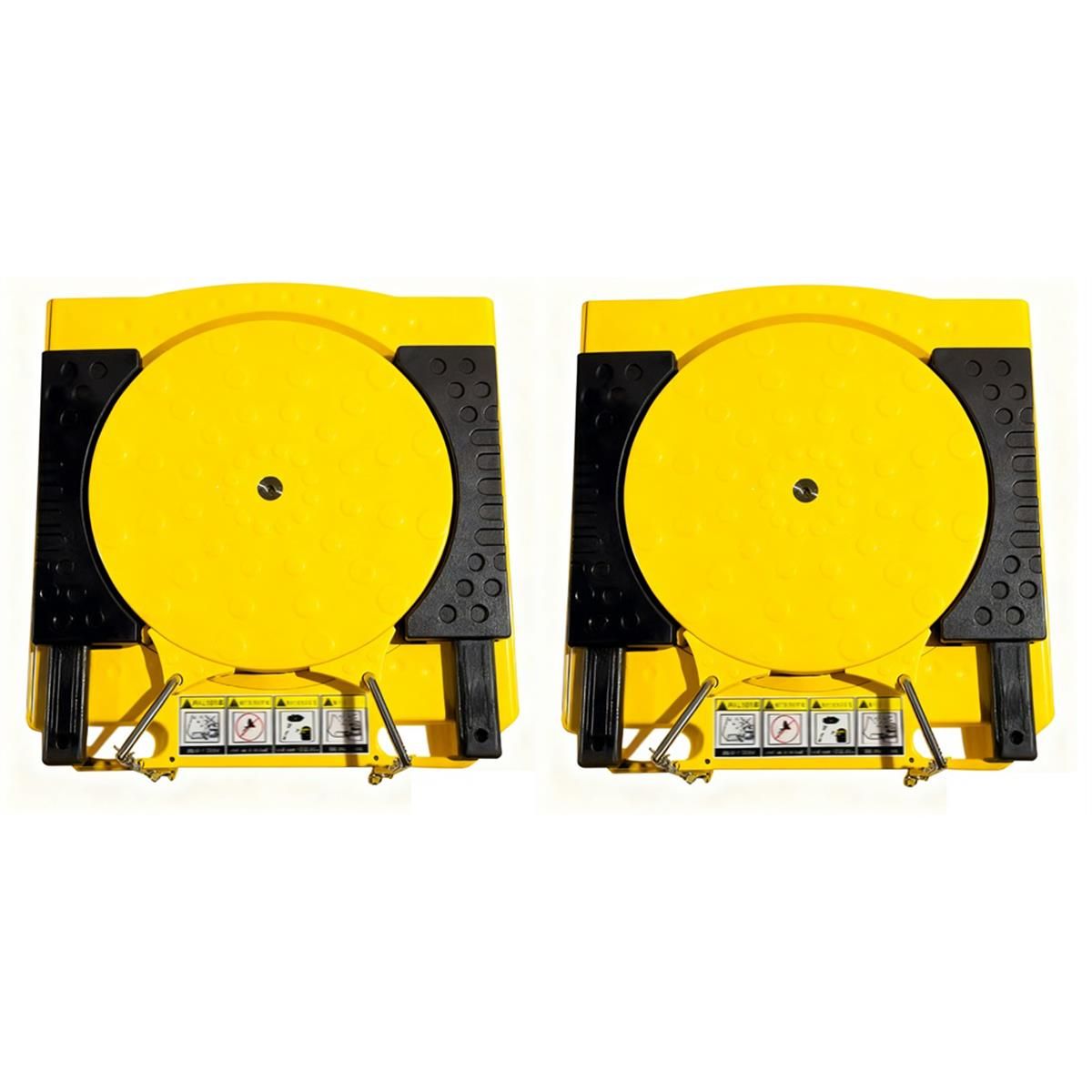

• Heavy Duty Turntables Included
• Mounting Hardware Included
• 6,000 lb. Capacity of Jacks
• Jacks Air/Hydraulic Operated
• 4 Piece Truck Adapter Set Included w/ each Jack
• 2 Years Manufacturer Warranty for Parts
• 5 Years Manufacturer Warranty for Lifting Structure

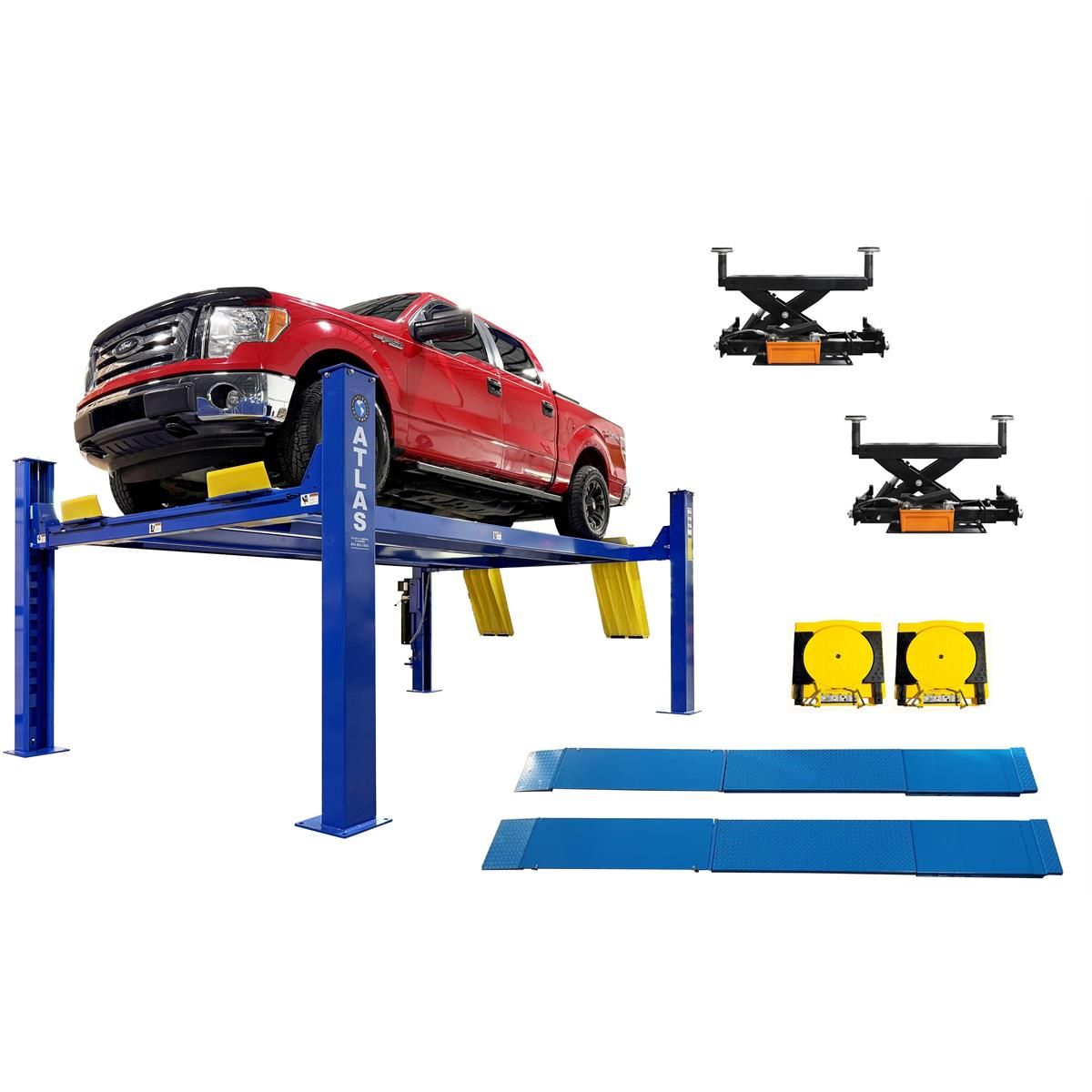

The Atlas® Pro12K Heavy Duty Commercial 4-Post lift incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas® Pro12K is tested to ensure that this lift system will perform flawlessly at its rated capacity.The Atlas® Pro12K uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings".This combo includes the Atlas® Pro12K, an alginment kit (including slip plates and turntables, and two Atlas® RJ6BK rolling bridge jacks.

• Capacity: 12,000 lbs.
• Lifting Height, Top Lock: 68 1/2" (5' 8 1/2")
• Overall Width (w/ Motor): 141 1/2" (11' 9 1/2")
• Overall Length (w/ Approach Ramps): 253" (21')
• Runway Length: 205" (17' 1")
• Length Between Columns: 189 3/4" (15' 9 3/4")
• Runway Width: 20"
• Width Between Runways: 42 1/2" - 46 1/2"
• Outside Runway to Outside Runway: 62 1/2" - 66 1/2"
• Width Between Columns: 114 3/4" (9' 6 3/4")
• Drive Thru: 100" (8' 4")
• Height of Columns: 89" (7' 5")
• Clearance Under Runways, Top Lock: 61 1/2" (5' 1 1/2")
• Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Electrical Requirement: 220V - Single (1) Phase.- 30 amp breaker recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Jack Minimum Width: 35"
• Jack Maximum Width: 55"
• Minimum Lifting Height: 8 1/4"
• Maximum Lifting Height (w/ Adapters): 21"
• Adapter Heights: 2 Each 2", 3"
• Combined Shipping Weight 4400 lbs.
