• 10,000 lb. Capacity
• Commercial Grade
• Adjustable Height – 11' 11 1/8" or 12’3"
• Asymmetric/Symmetric Arms
• Automatic Arm Restraints
• “Padded” Shut-Off Bar
• Padded Carriages
• Single Point Lock Release
• Dual Direct-Drive Cylinders
• Powder Coat Finish
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• 2 Years Manufacturer Warranty for Parts
• 5 Years Manufacturer Warranty for Lifting Structure

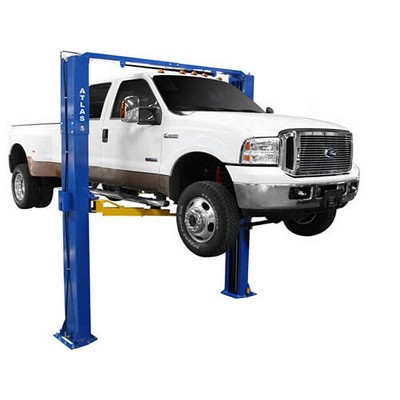

The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models. Whether you are an automotive shop or working on personal vehicles from your home, the PV10PX is the industry standard!

The commercial grade Atlas® PV10PX two post lift includes some modifications and improvements that make it one of the most popular above ground lifts in the world.

This lift is the perfect choice for use in either a large commercial service department or for the “pole barn” owner who wants the “biggest and baddest” lift in the country. The Atlas® PV10PX is designed and engineered to safely lift (and work on) everything from a Smart Car® to a one ton diesel dually. This lift incorporates a padded shut-off bar to protect the top of the vehicle from contacting the crossbar. The carriages are equipped with rubber protective covers (size may vary) to help prevent the vehicle’s doors from damage if opened into the columns or carriages. The PV10PX also includes a deluxe truck adapter set (12 pieces vs. the standard 8 pieces) and the rubber lift pad that has been reinforced to ensure a solid contact with the vehicle’s lifting points.

Atlas ATTD-PV10PX Specifications

• Capacity: 10000 lbs
• Overall Height: 143 1/8" (11' 11 1/8") or 147" (12' 3")
• Overall Floor Width: 137 1/2" (11' 5 1/2")
• Outside Columns: 125 1/2" (10' 5 1/2"")
• Inside Column Width: 110 1/8" (9' 2 1/8")
• Drive Thru: 90 1/4" Asymmetric/ 96 1/4" Symmetric
• Max Lift Height w/o Adapters: 72 1/2"
• Max Lift height w/ Adapters: 81 1/4"
• Minimum Arm Height: 4 1/2"
• Column Size: 7 1/2" x 14 1/2"
• Base of Column: 17 1/2" x 20 1/2"
• Column Steel Thickness: 6mm
• Arm Steel Thickness: 6mm
• Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 1875 lbs
• Adapter Heights: 4 Each 1.25", 2.5", 5"
• Arm Hole/Adapter Peg Size: 1.5"
