ALI Certified Lift
10,0000 lb. Capacity

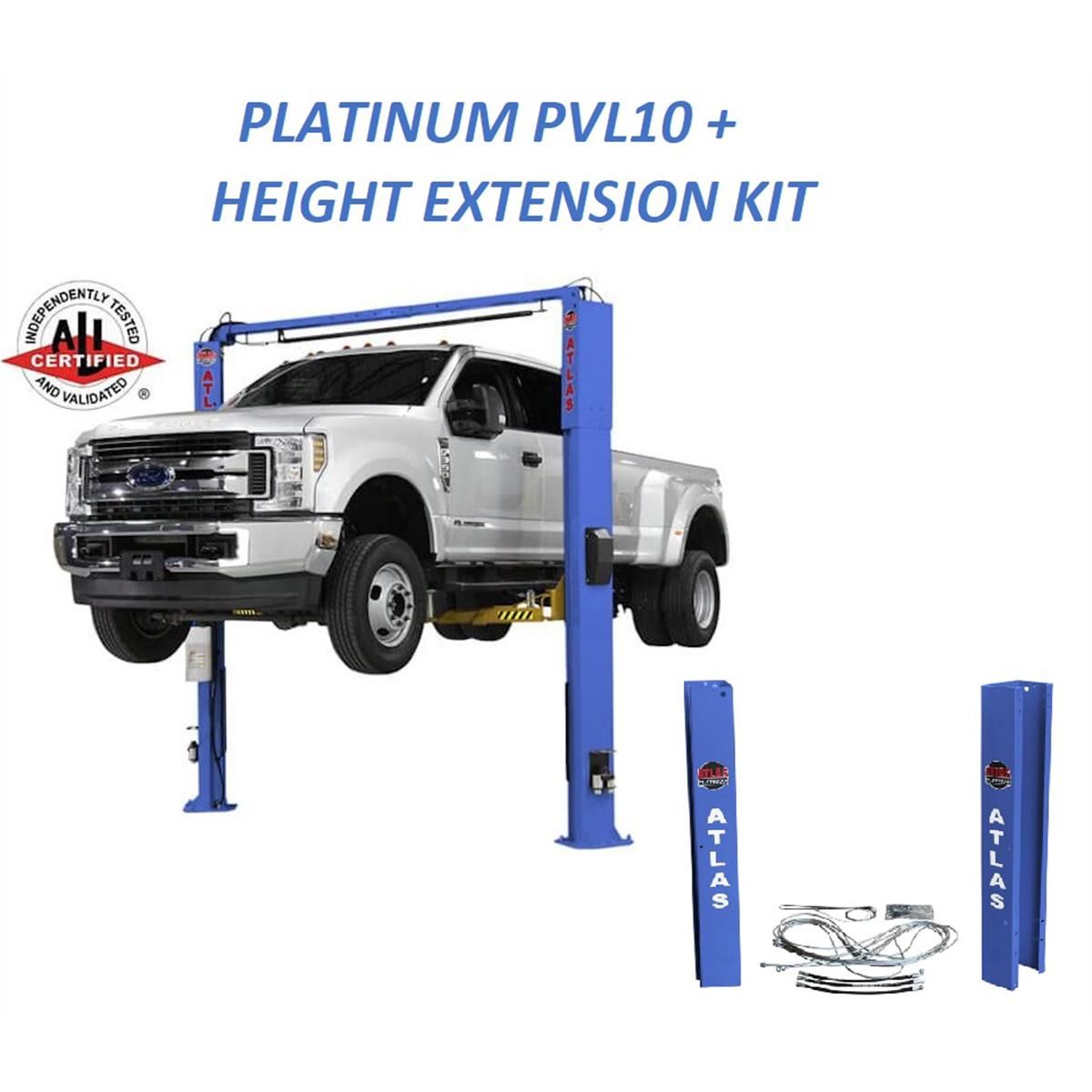

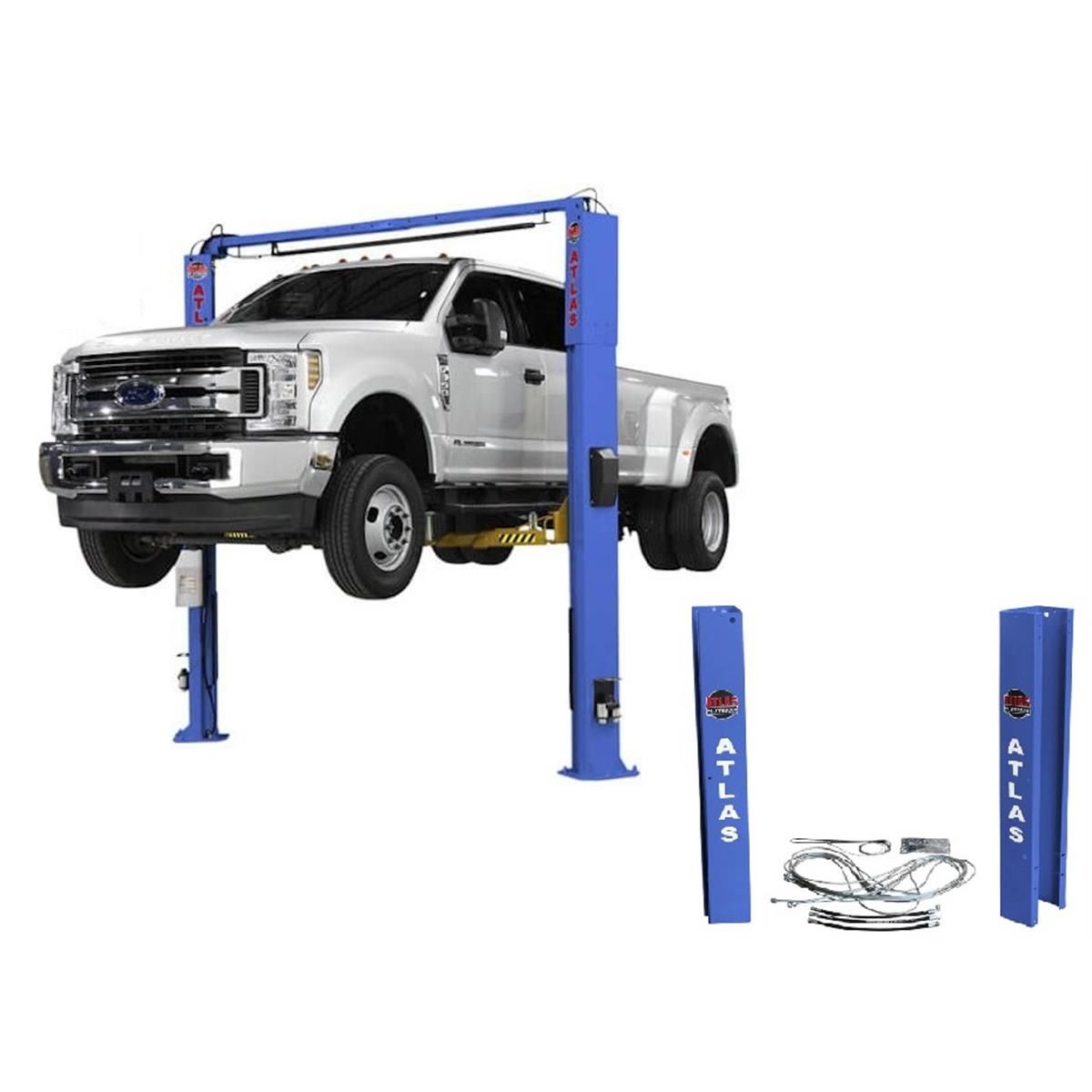

2 Foot Height Extension Kit Included
Column design with special Double “S” bends increasing column strength
Can be installed Symmetrically OR Asymmetrically

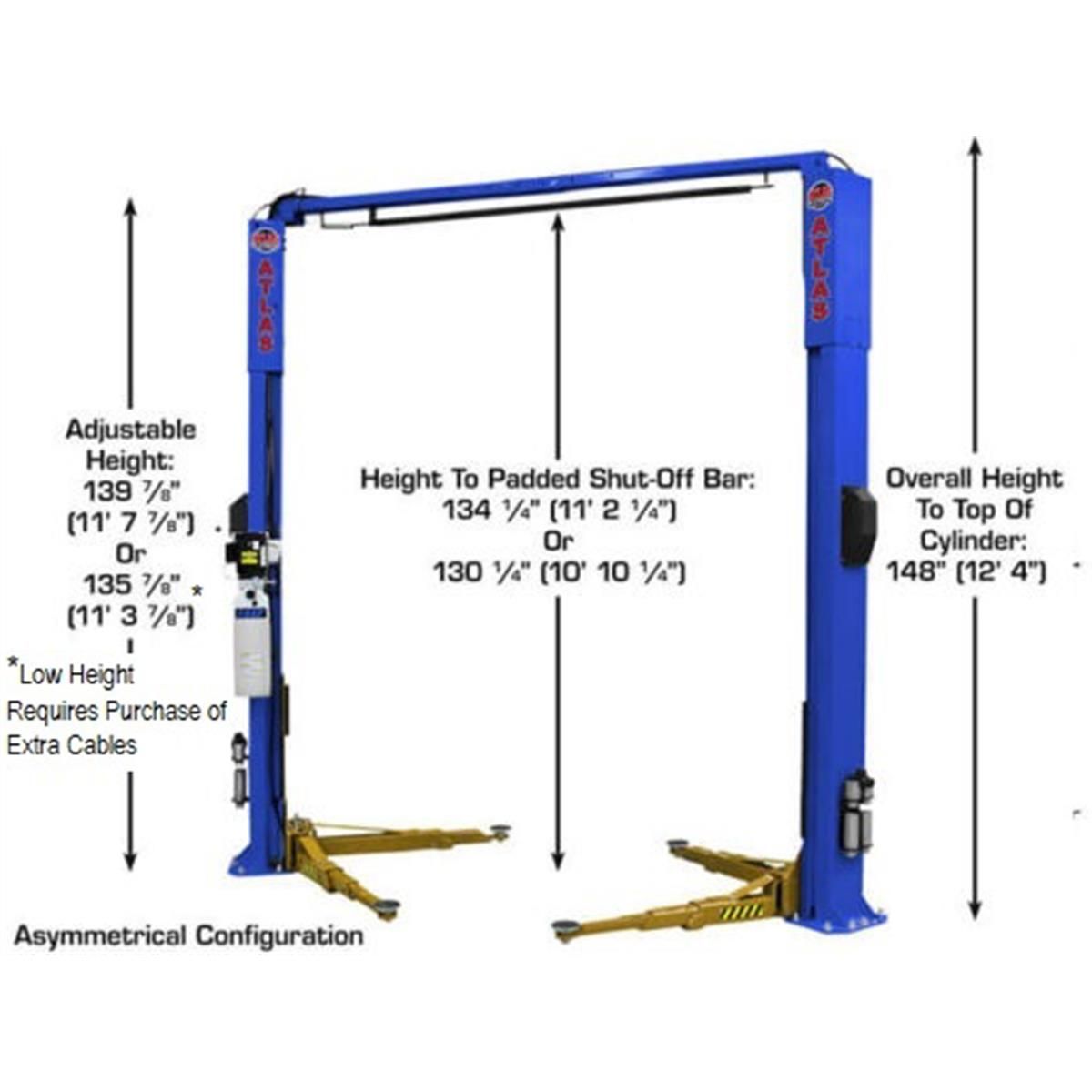

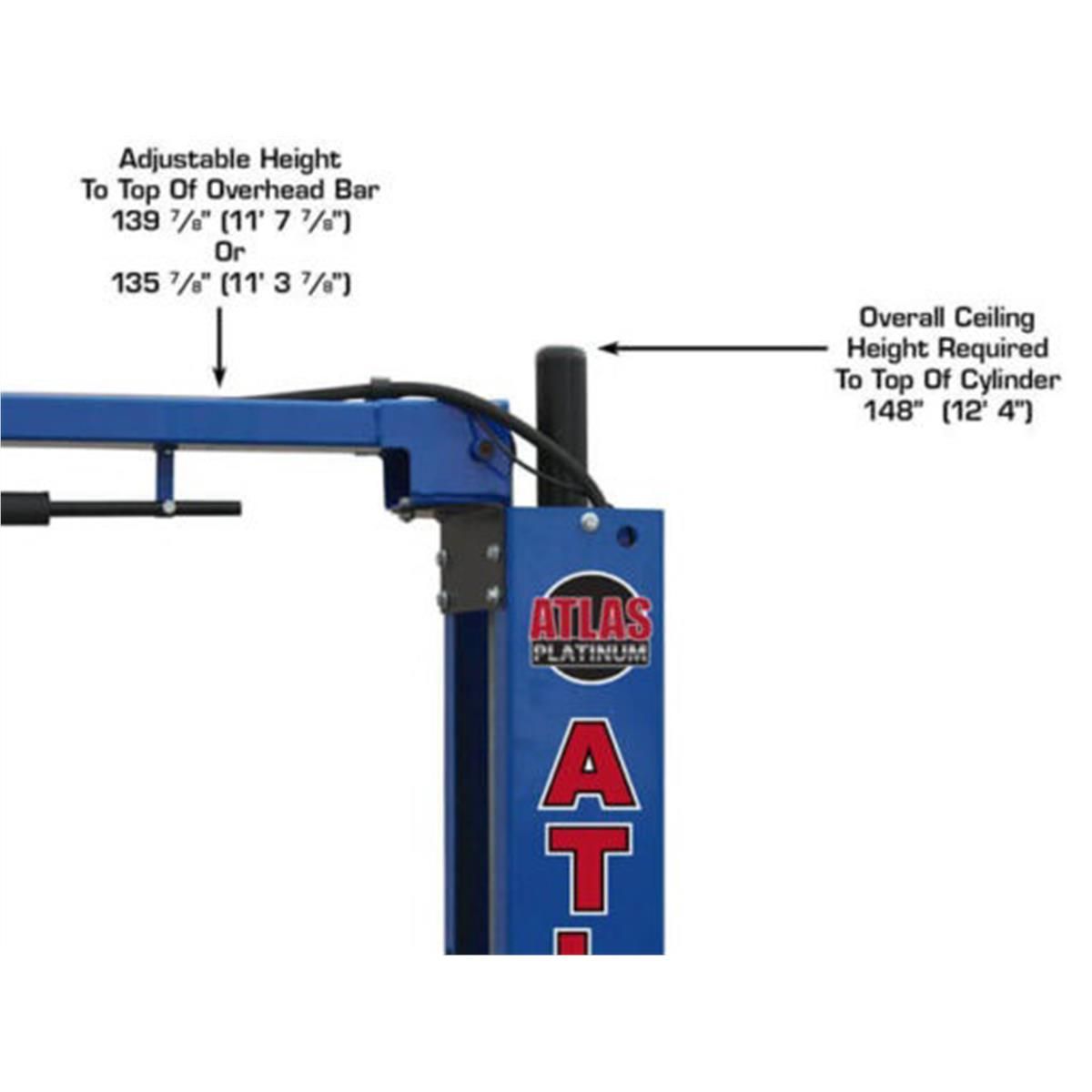

Overall Height: 135 7/8" (11' 3 7/8") or 139 7/8" (11' 7 7/8") (Cylinder Height 12' 4")
Padded Carriages

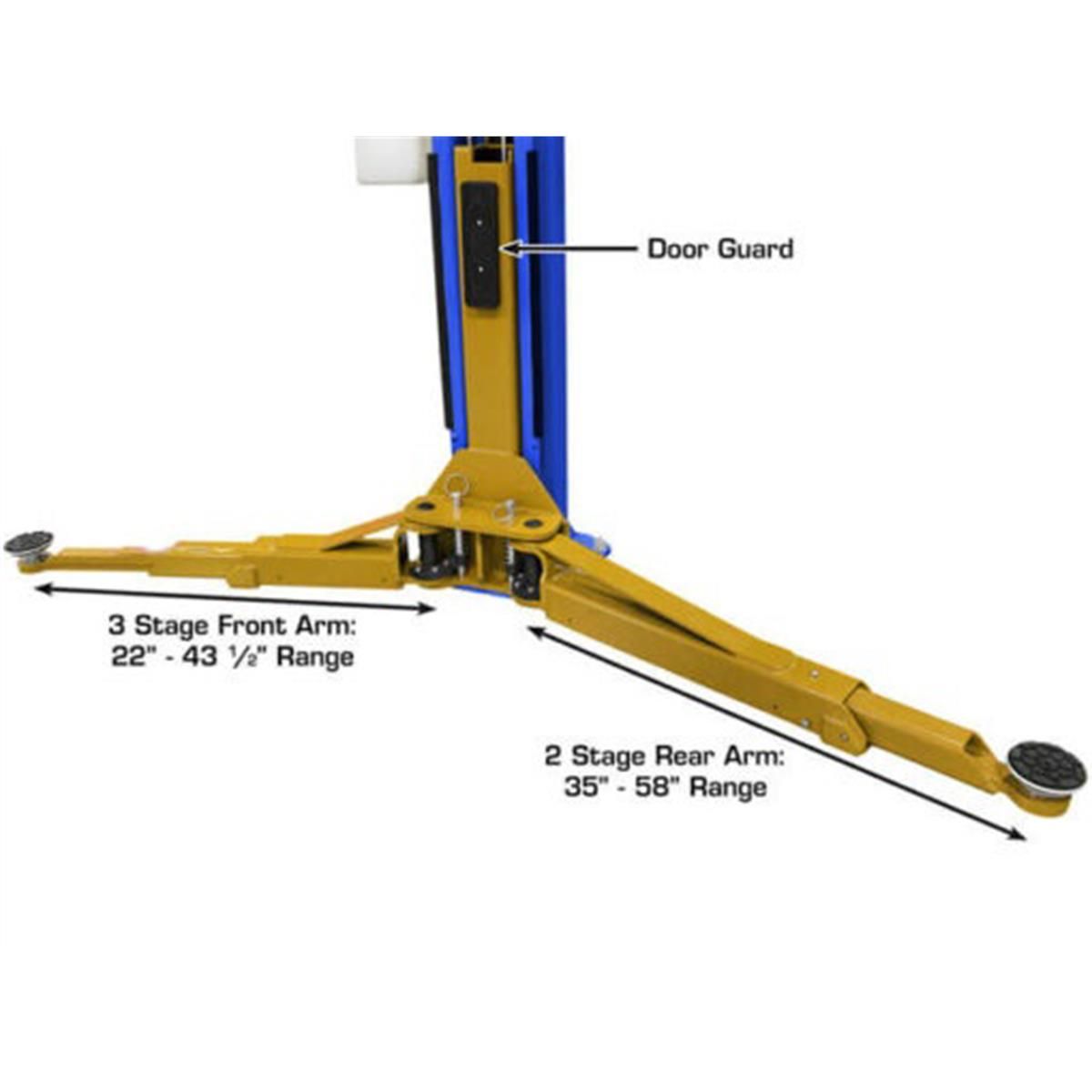

3-Stage Front Arms & 2-Stage Rear Arms
Single-Point Lock Release
Powder Coat Finish

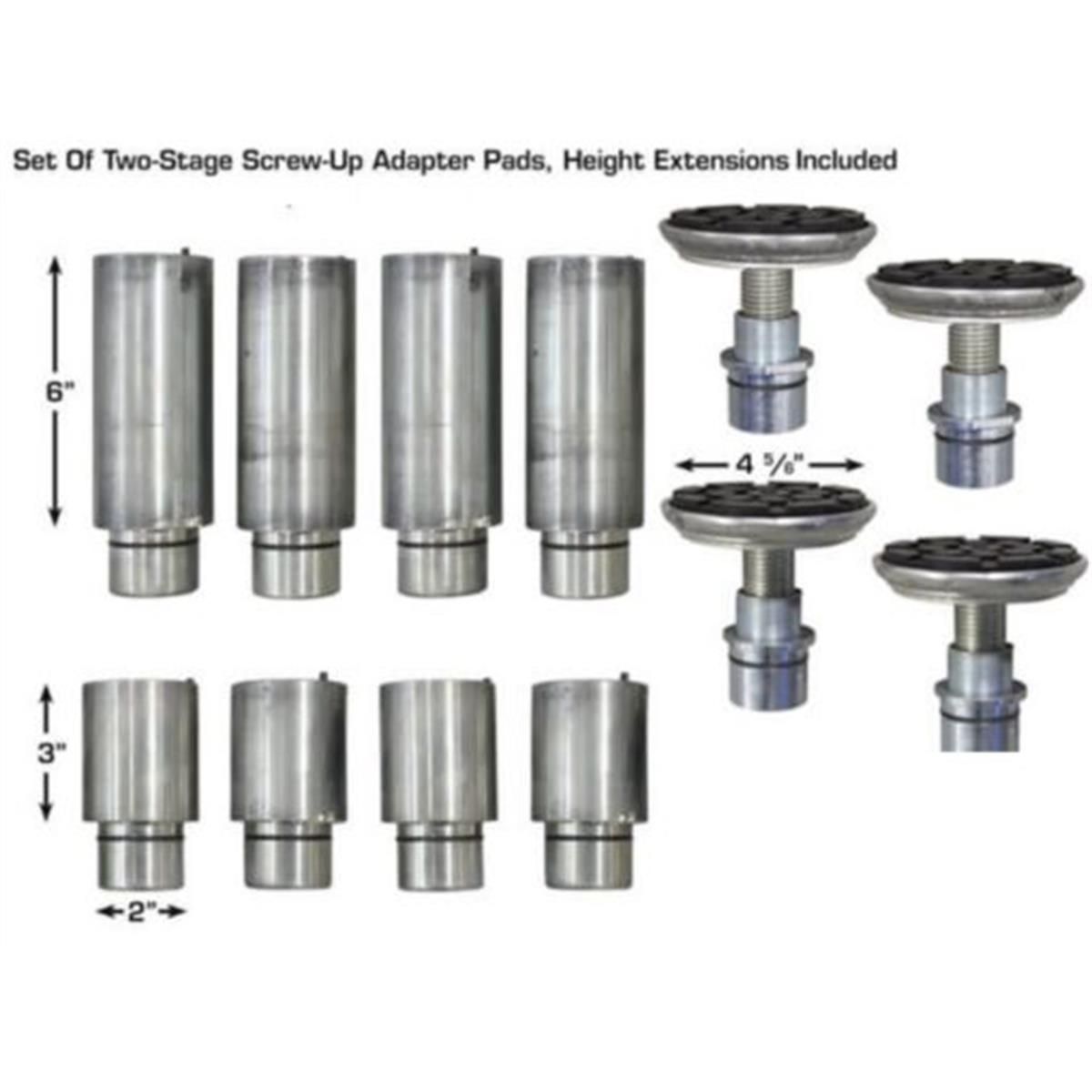

Includes Double Screw-up Adapters
Free 8 Piece Truck Adapter Set
Mounting Hardware Included
Standard with Premium ALLY Power unit

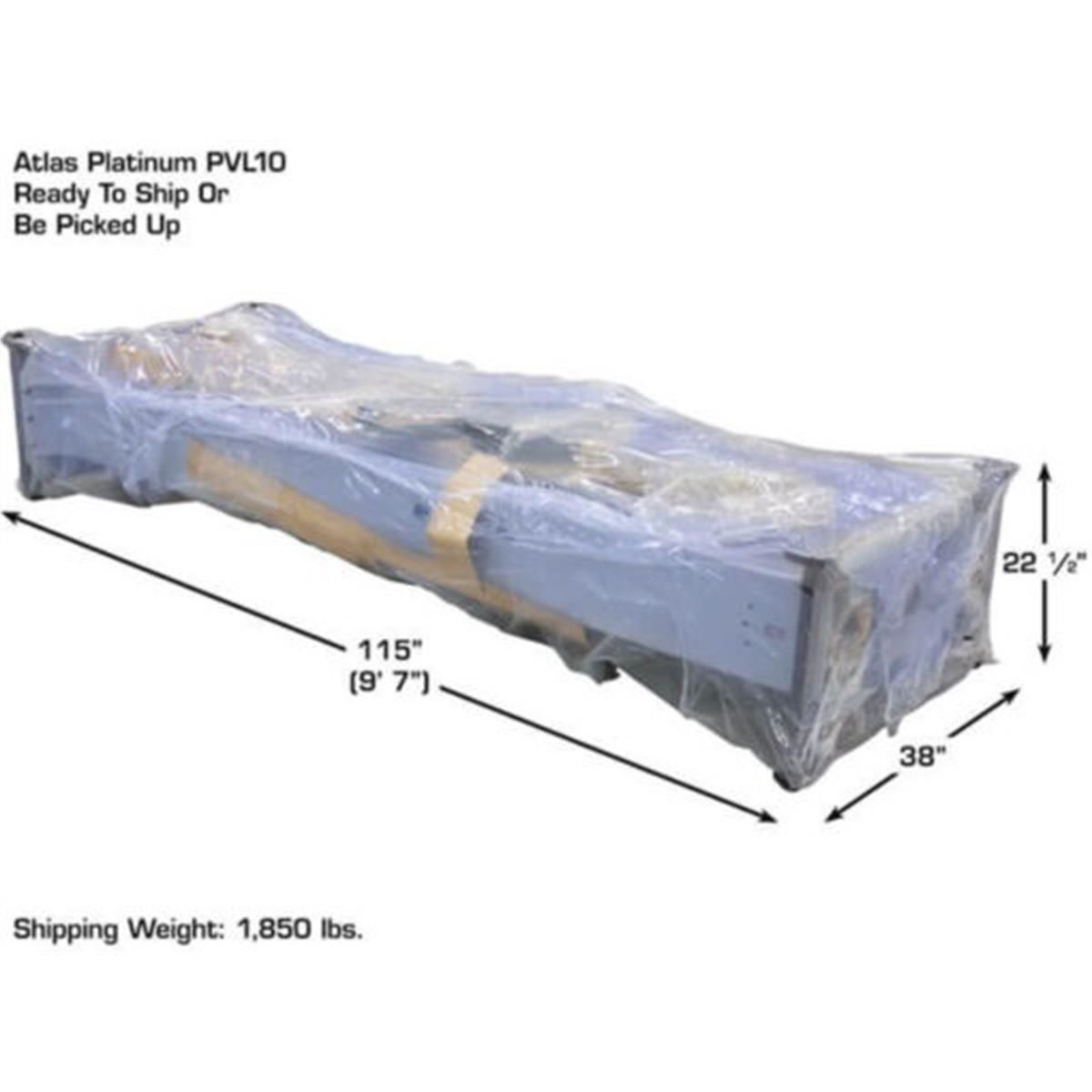

Shipping Weight: 1,850 lbs.
2 Years Manufacturer Warranty for Parts
5 Years Manufacturer Warranty for Lifting Structure

The Atlas® Platinum PVL10 is a 2-post 10,000 lb. capacity ALI Certified commercial grade lift designed with the professional shop in mind. The Platinum PVL10 was engineered and built to offer a commercial grade above ground lift to those customers who have “fallen in love” with the reliability offered by the Double S column design and symmetric columns. Tens of thousands of above ground lifts incorporating the Double S column design have been sold worldwide over the past two decades. The Double S column design was so revolutionary, that it was protected by a patent. That patent has now expired.

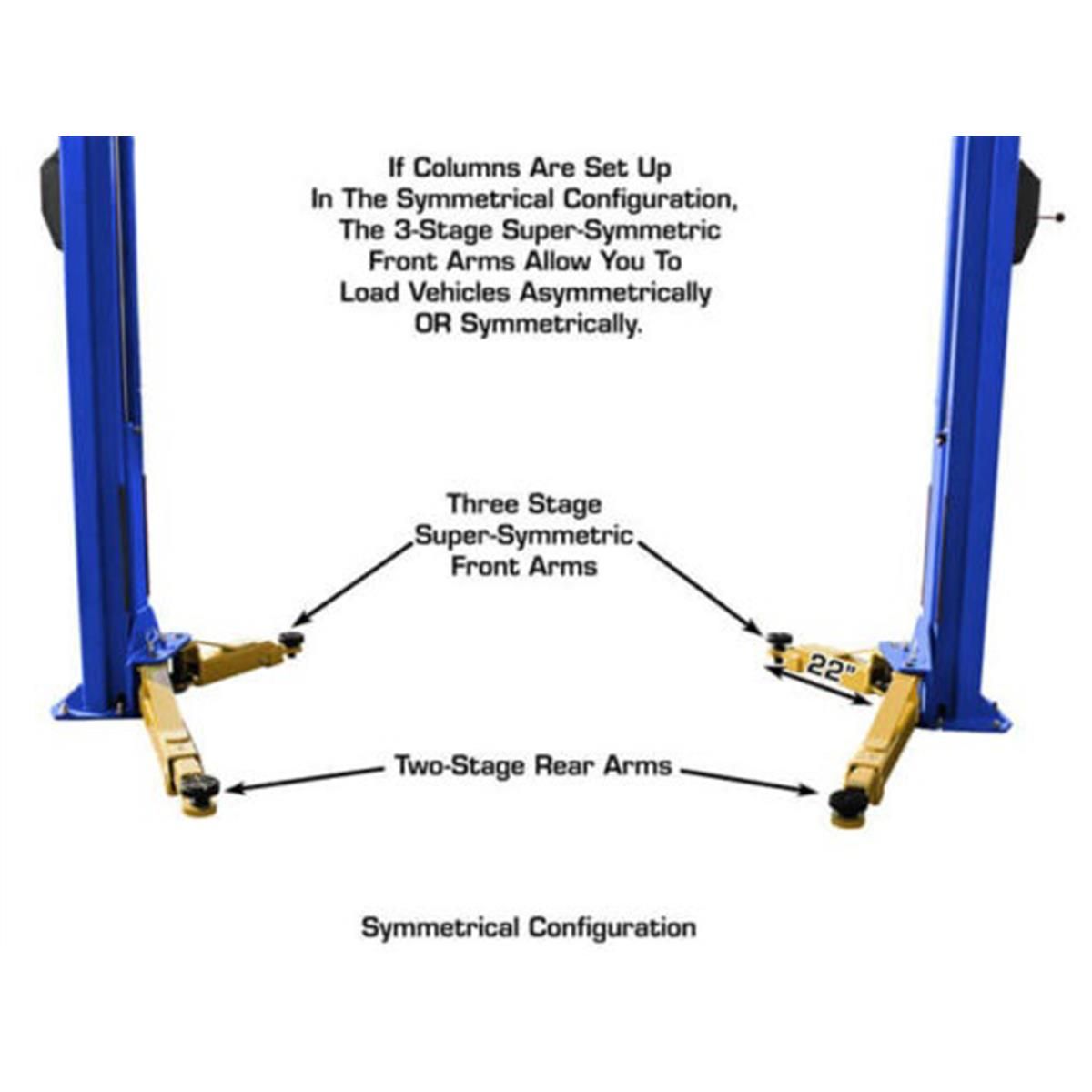

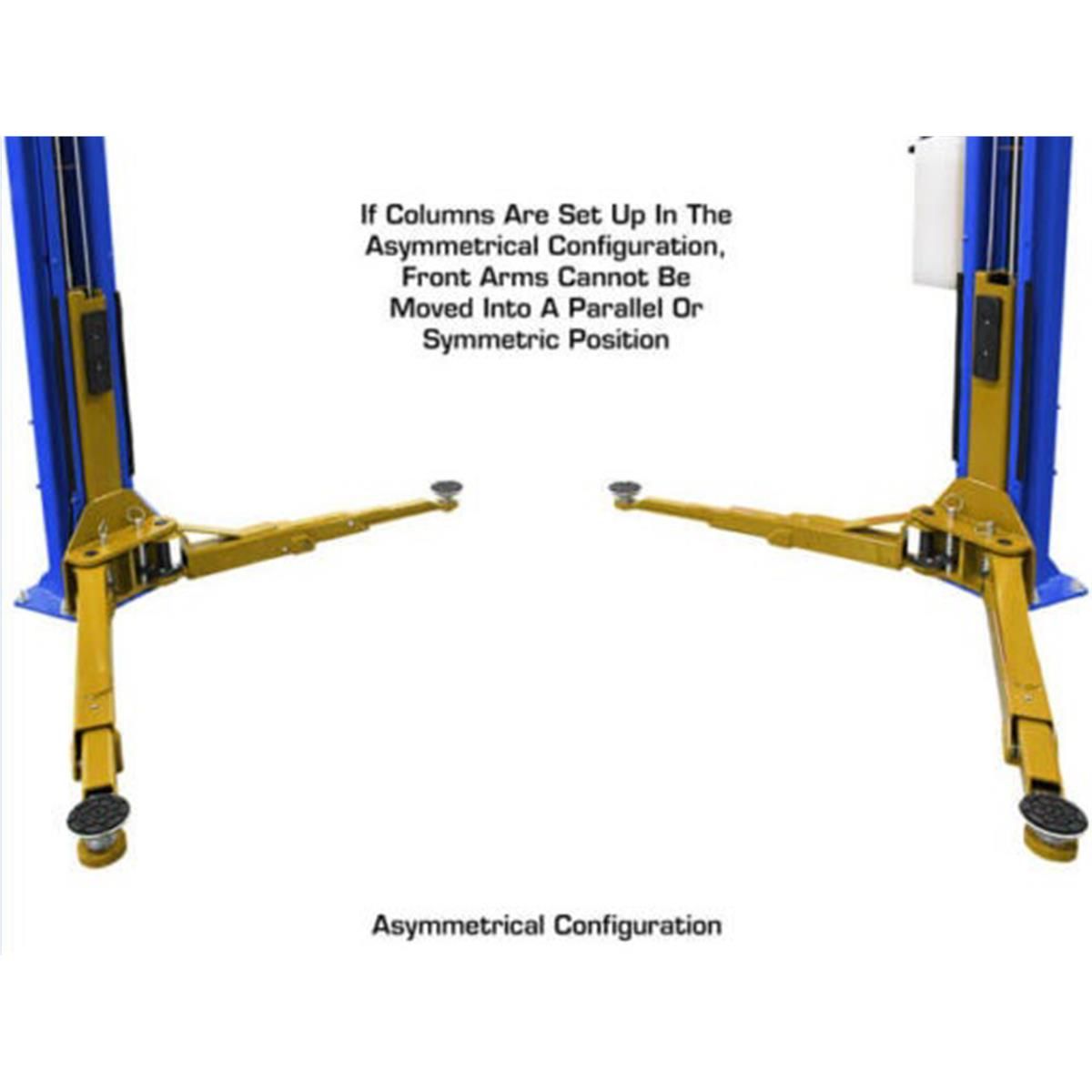

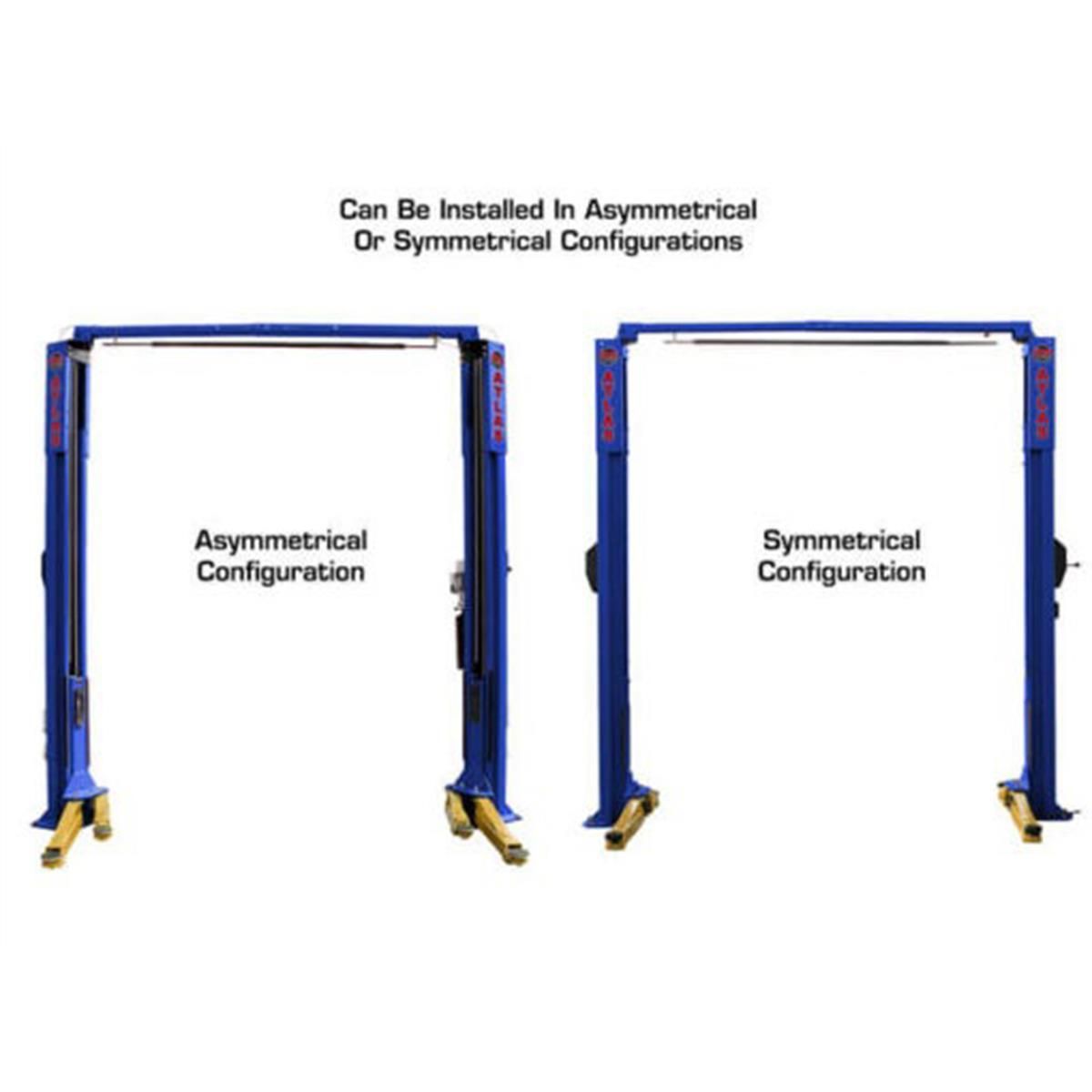

The Atlas® Platinum PVL10 can be installed with the columns positioned symmetrically or asymmetrically. When the columns are installed in an asymmetric configuration exiting and entering the vehicle is easier and reduces the chance or getting dings or scratches in the door. When the columns are installed in a symmetric configuration the width between the columns is wider, allowing wider trucks and SUVs to use the lifts with ease. Both column configurations offer easy vehicle access and superior vehicle lift point support due to the three stage front arm design.

The Atlas® Platinum PVL10 features three (3) stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads mounted to the carriage, rubber column guards, and a price that cannot be matched.

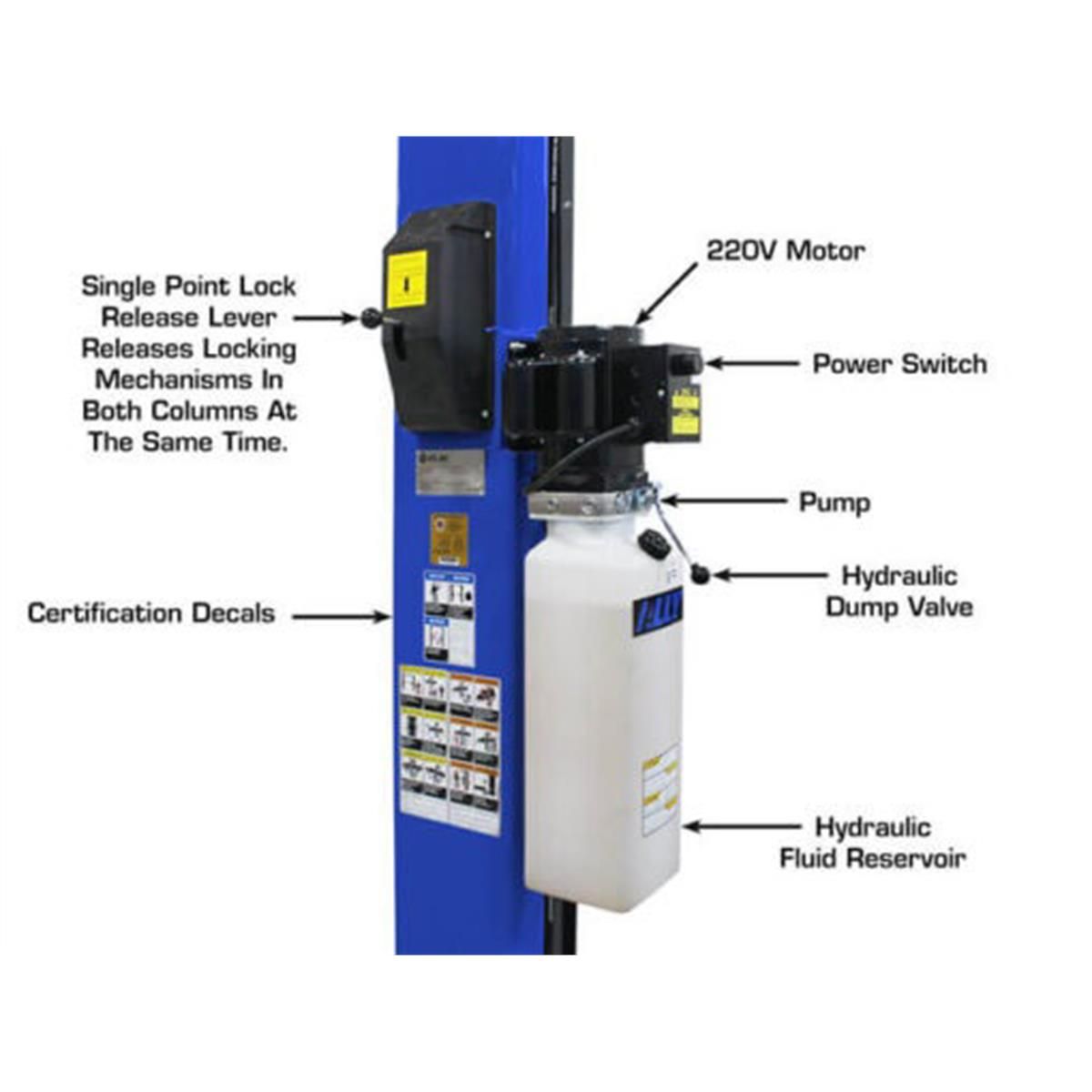

This product also features an ALLY Hydraulic AL2850 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

Atlas® Platinum PVL10 Specifications:

Capacity: 10,000 LB.

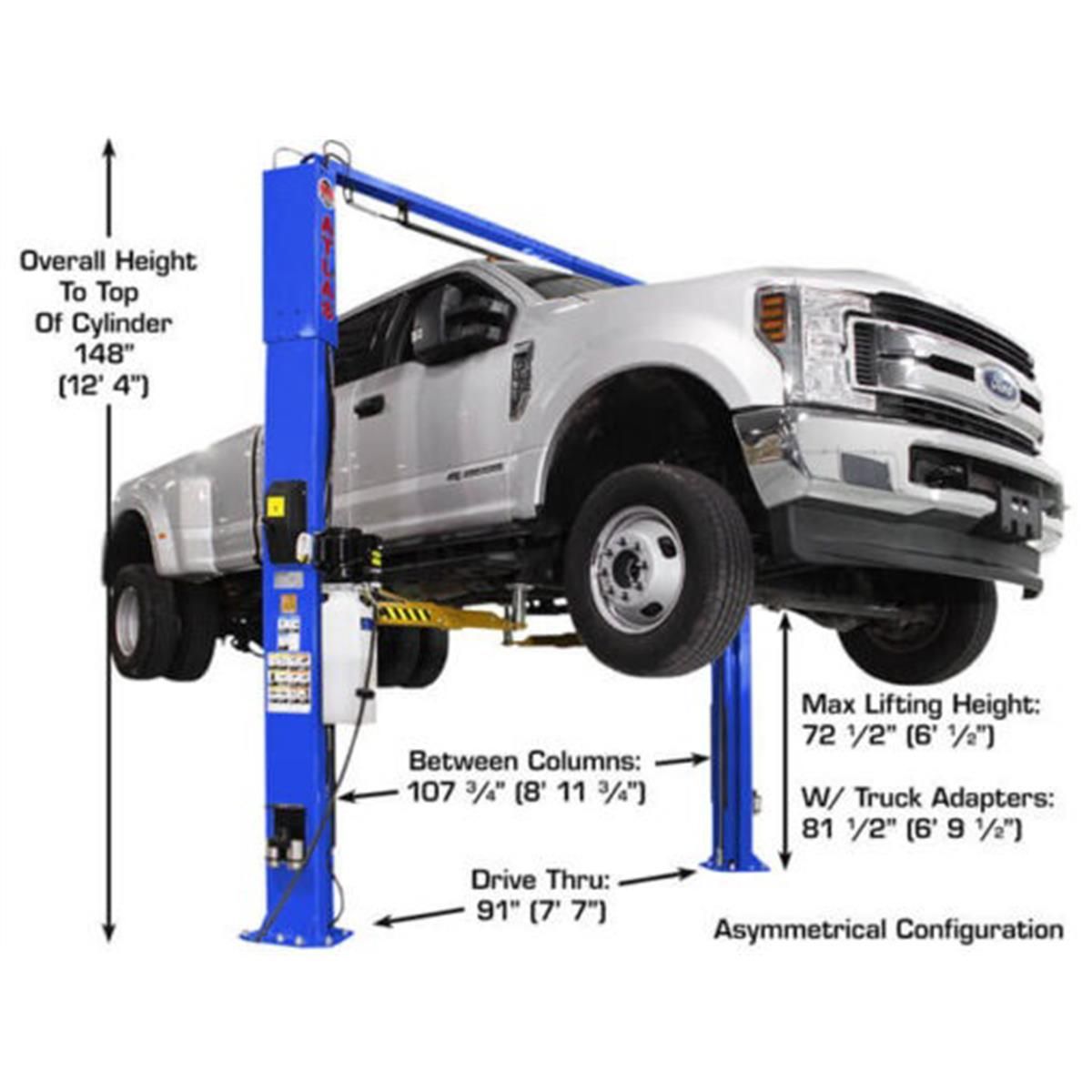

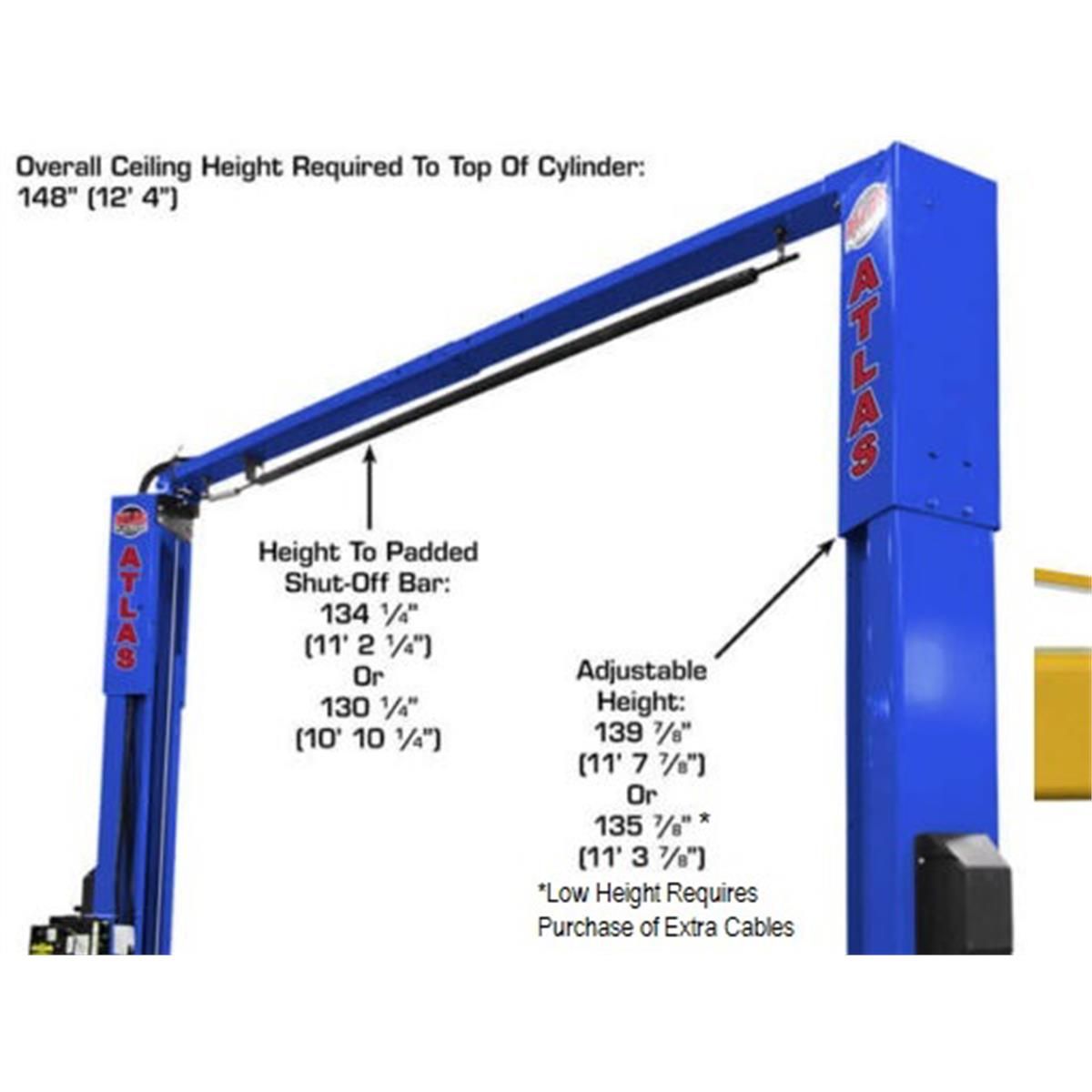

Overall Height: 159 7/8" (13' 3 7/8”) or 163 7/8” (13' 7 7/8”) - (CYLINDER EXTENDS TO 12' 4”)

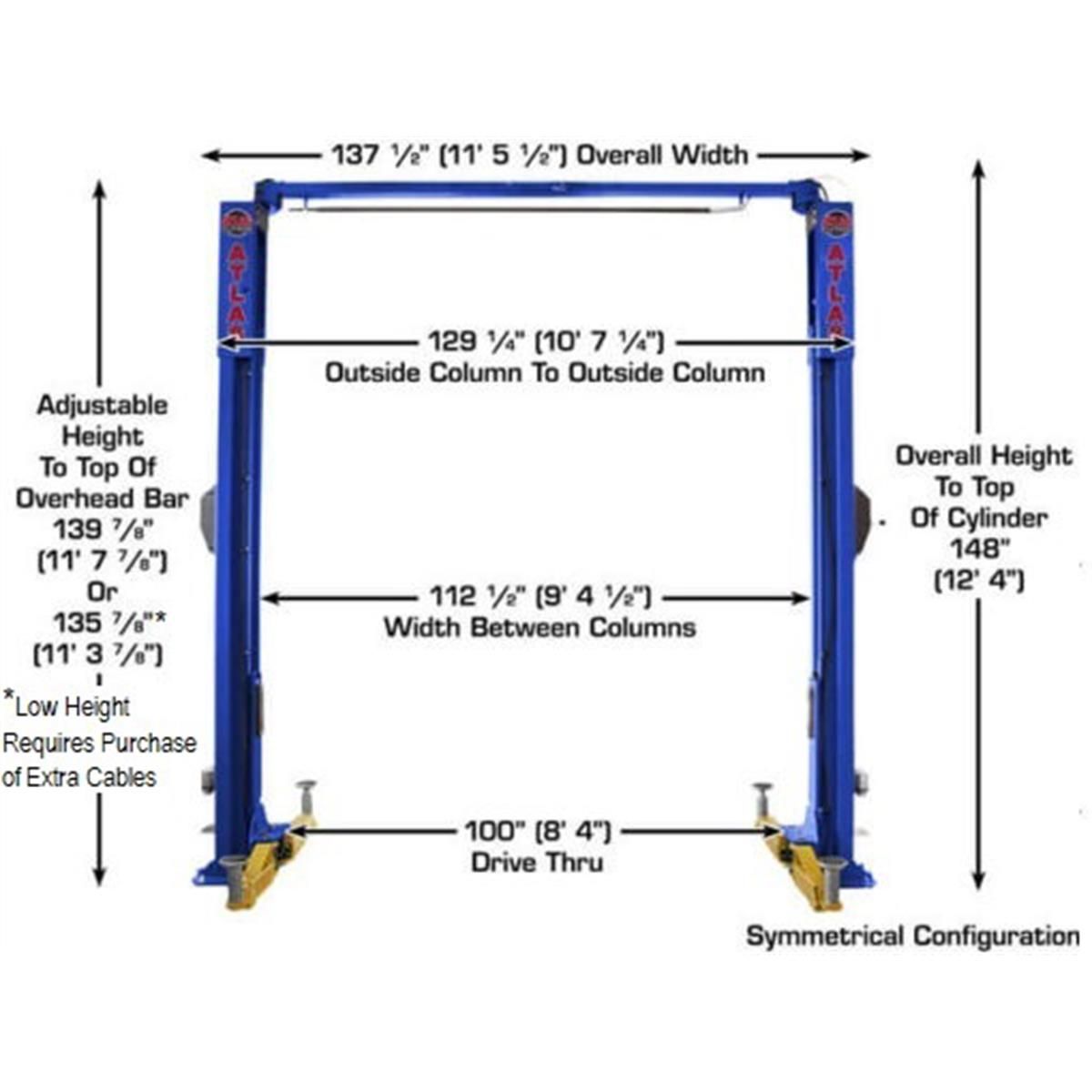

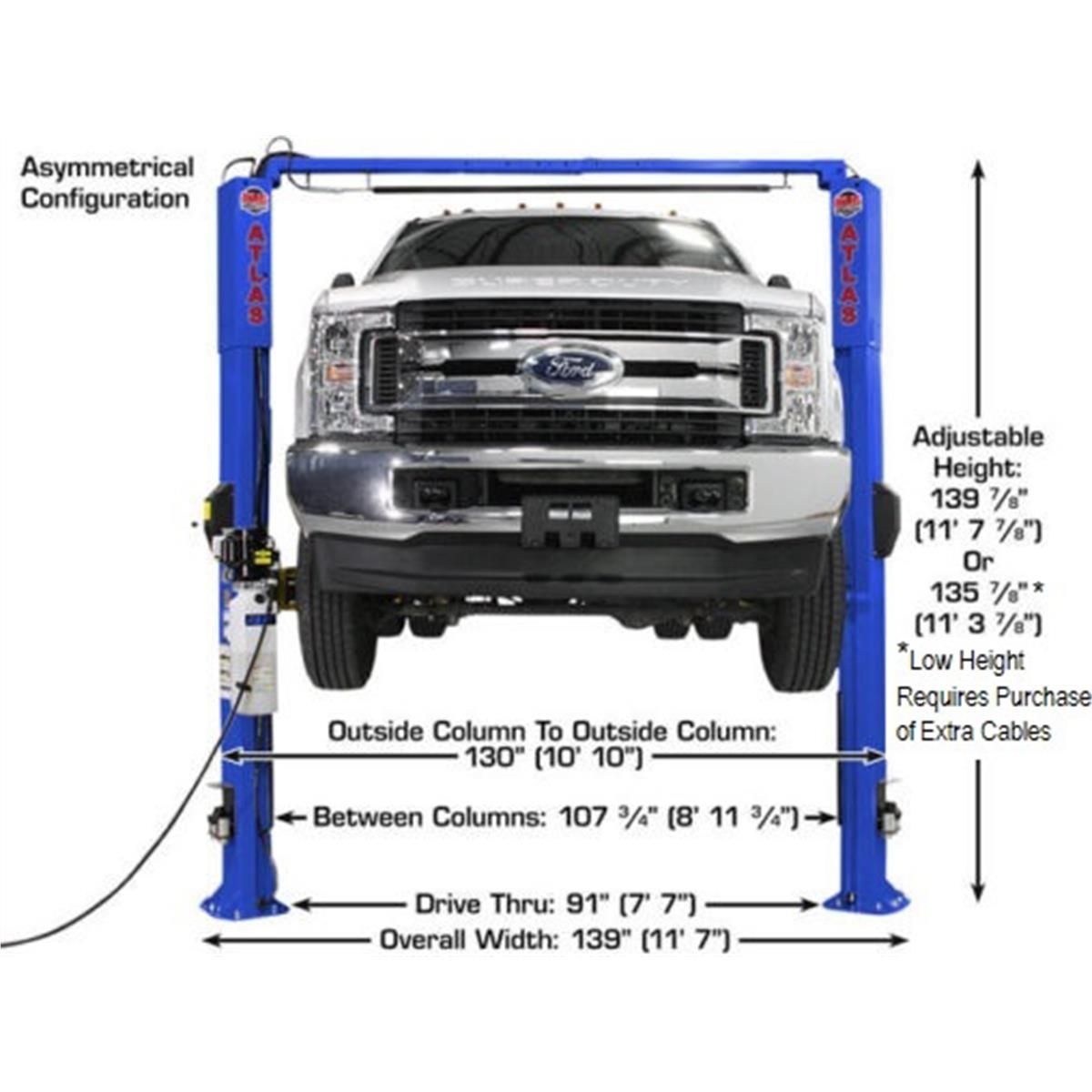

Overall Width: 139" (11' 7”) Asymmetric/137 1/2” (11' 5 1/2”) Symmetric
Outside Column to Outside Column: 130" (10' 10") Asymmetric/129 1/4” (10' 9 1/4") Symmetric

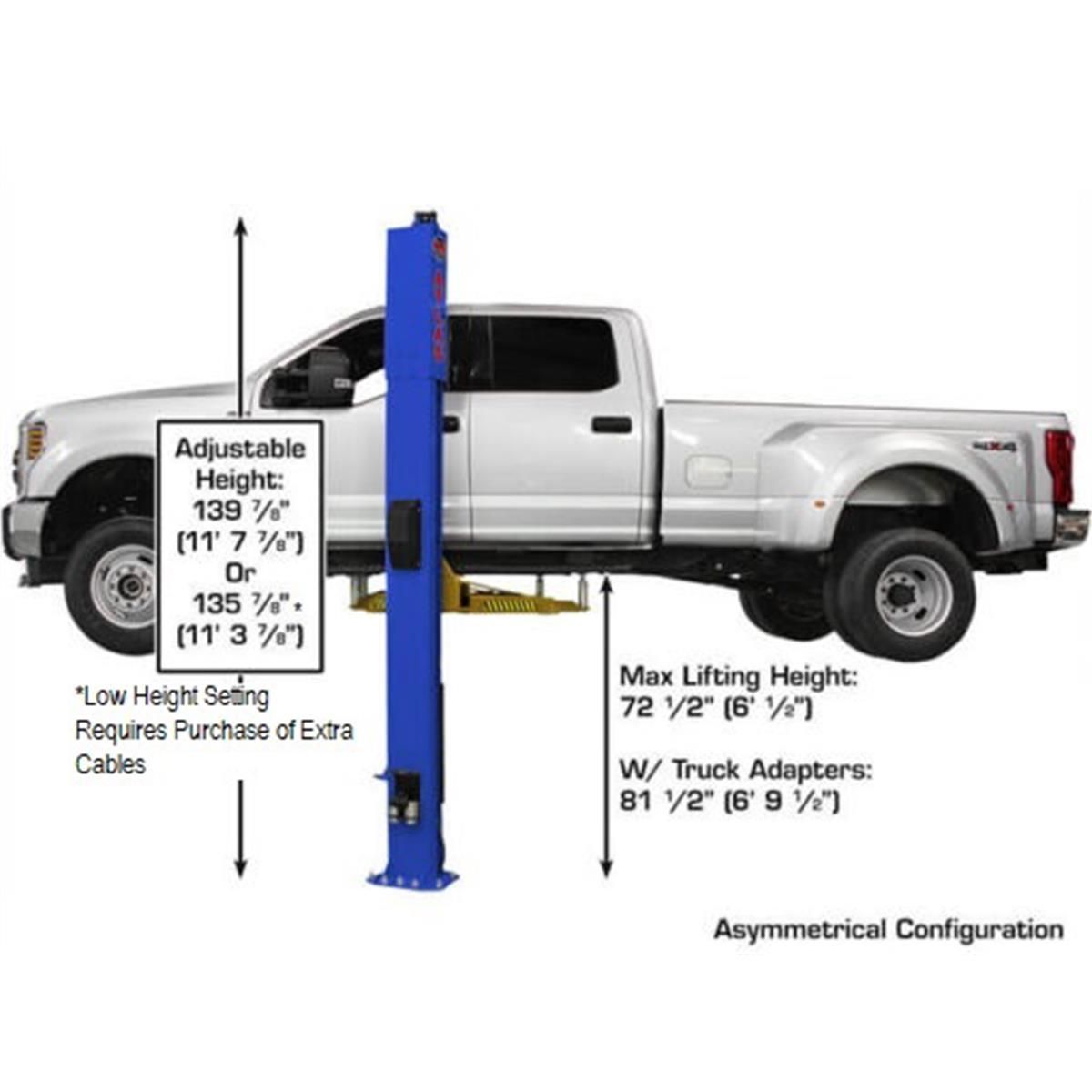

Maximum Lift Height (Without Adapters): 72 1/2"
Maximum Lift Height (With Adapters): 81 1/2"
Minimum Arm Height: 4"
Inside Column: 107 3/4” (8' 11 3/4”) Asymmetric/ 112 1/2" (9' 4 1/2") Symmetric
Drive Thru: 91” Asymmetric/99 1/2” Symmetric

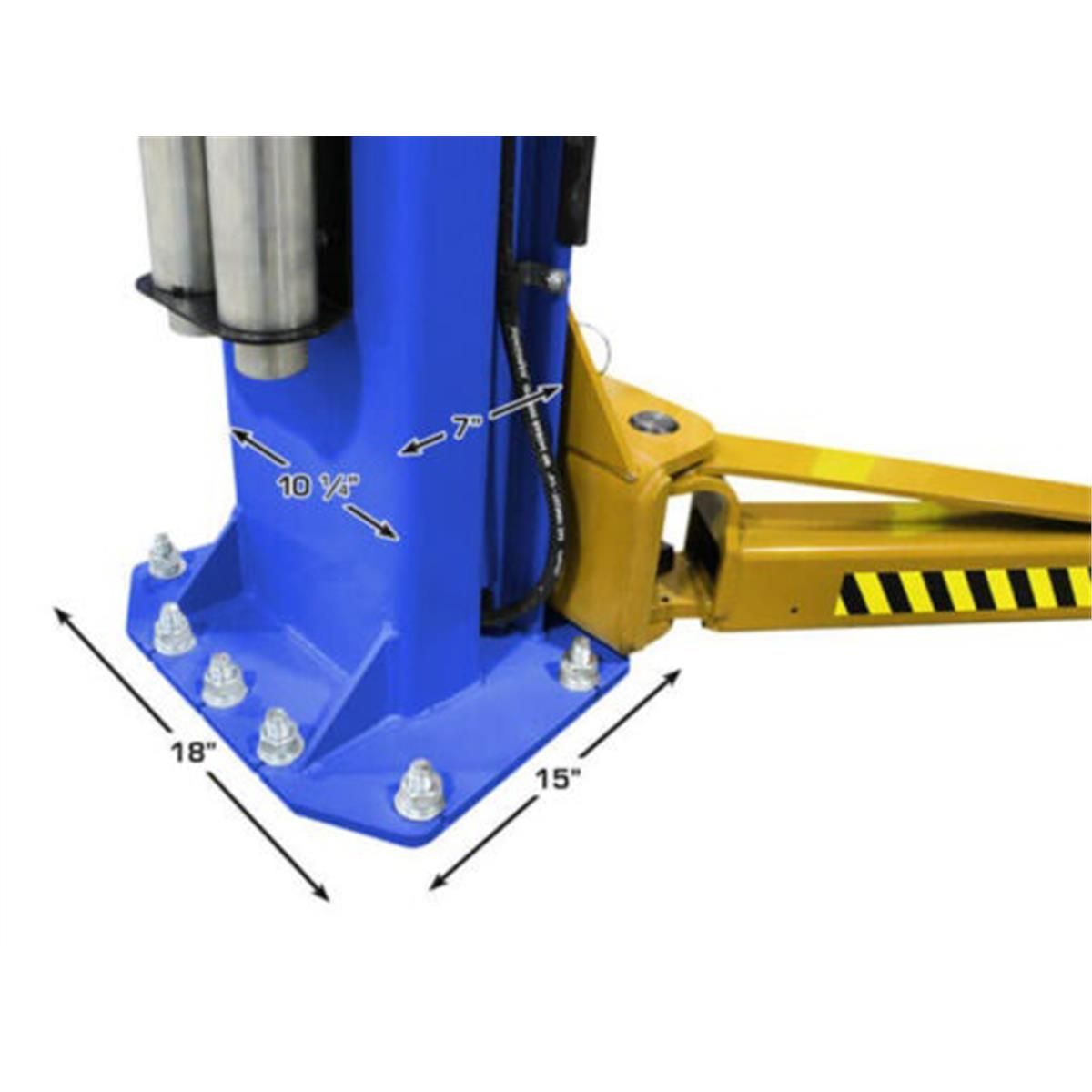

Column Size: 7" x 10 1/4"
Column Thickness of Steel: 6mm
Base Of Lift: 15" x 18"
Motor/Electrical Requirement: 220 volt single (1) phase (A 30 amp breaker is recommended)
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 2,000 LBS.

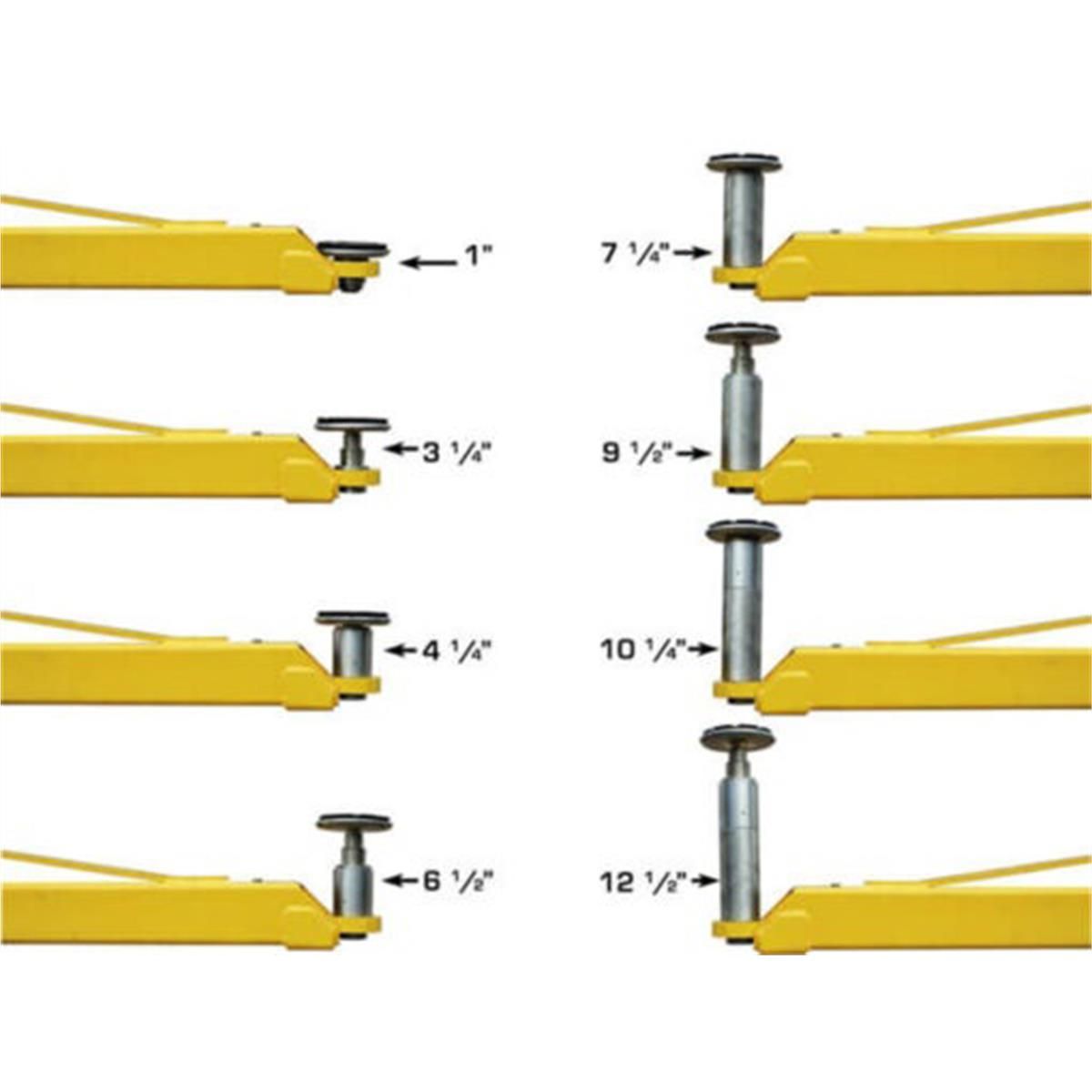

Adapter Heights: 4 Each 3”, 6”
Arm Hole/Adapter Peg Size: 2”
Requires a minimum of 4" of concrete with a 3000 psi. rat

Atlas Equipment PVL10-EXT - Platinum ALI-Certified 10,000 lbs Capacity Two-Post Overhead Car Lift with Height Extension Kit

Part #: ATEAP-PVL10-EXT

Availability: Out of Stock

Retail Price:$9,098.25

Your Savings:$3,899.25(43%)

Our Price: $5,199.00
