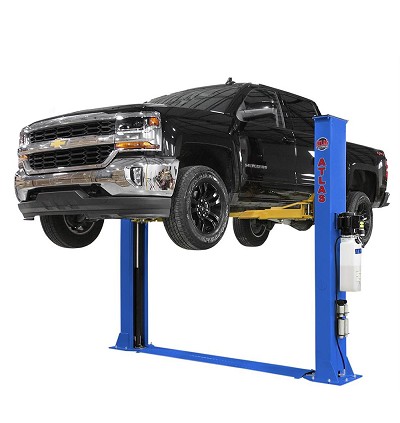

Looking for serious lifting power without worrying about ceiling height? The Atlas® Platinum PVL9BP 9,000-lb Base-Plate Two-Post Lift is built to handle real shop work while keeping things simple overhead. Its open-top base-plate design is perfect for low-ceiling garages and shops that want maximum flexibility without a top beam in the way. With a compact column height of just over 9 feet, this lift fits where many others can’t—making it a smart solution for tight spaces that still demand professional performance.

Don’t let the low profile fool you—the PVL9BP is ready to lift it all. From everyday passenger cars to full-size pickups and commercial vehicles, this lift delivers stable, confident lifting for a wide range of domestic and foreign vehicles. Designed for professional service centers, it combines durability, accessibility, and versatility into one rock-solid package. If you want a dependable 9,000-lb two-post lift that works hard without towering over your shop, the Atlas PVL9BP is ready to get to work.

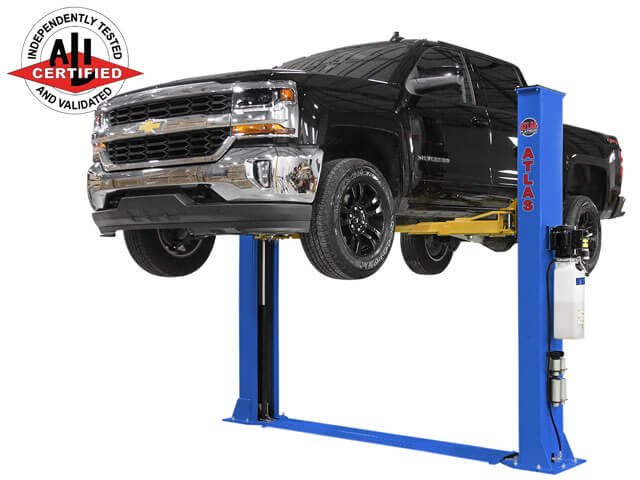

ALI Certified
9,000 lb. Capacity
Commercial Grade

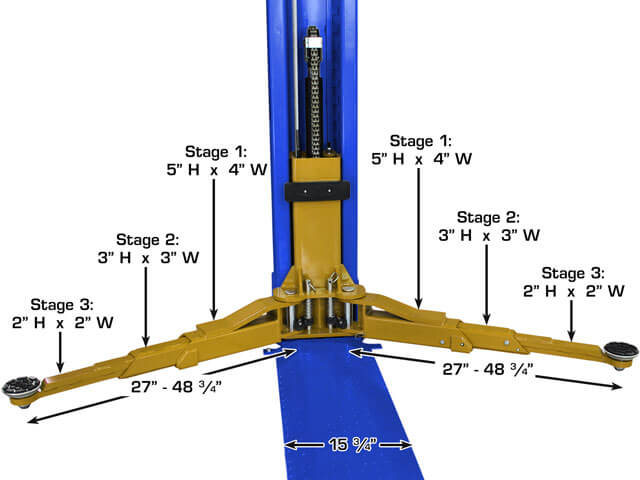

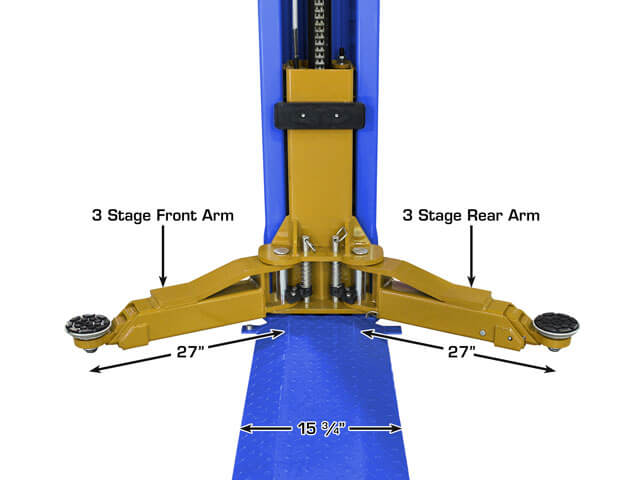

3-Stage Symmetric Arms
Base Plate, Open-Top Design
Designed For Low Ceiling Clearance – 9' 3 1/8" Columns

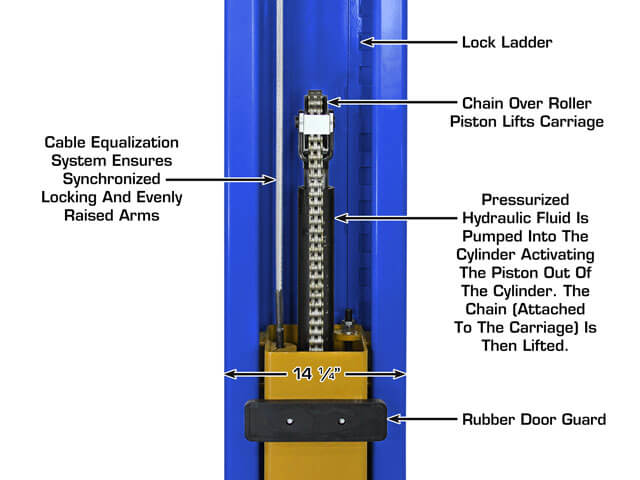

Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System (SLS)

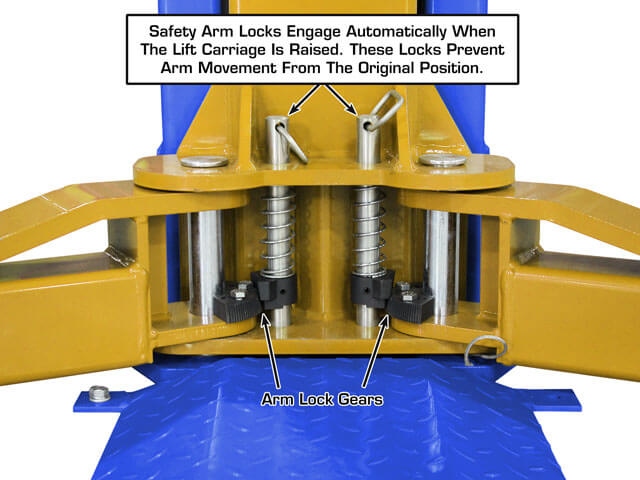

Automatic Arm Restraints

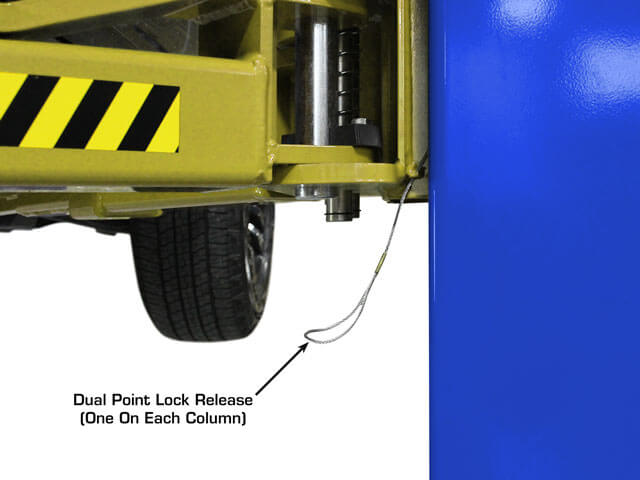

Dual Point Lock Release

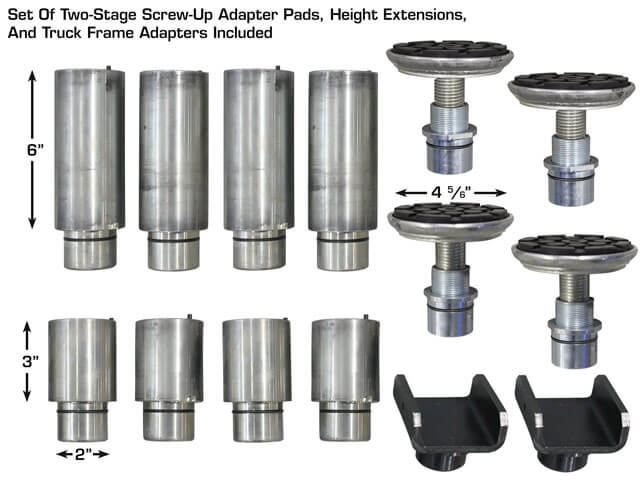

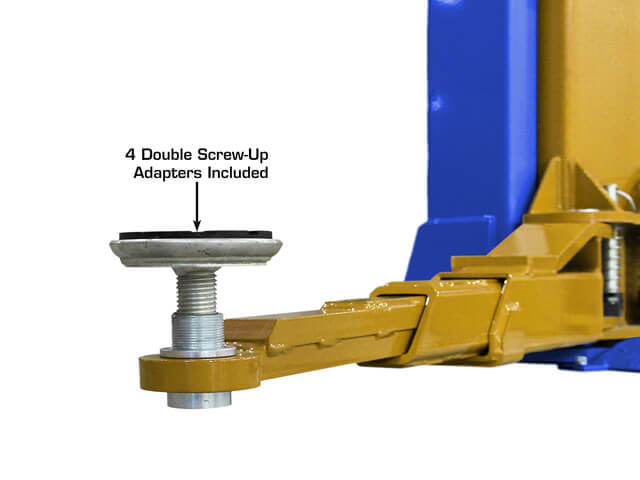

Includes Double Screw-Up Adapters
Free 8 Piece Truck Adapter Set

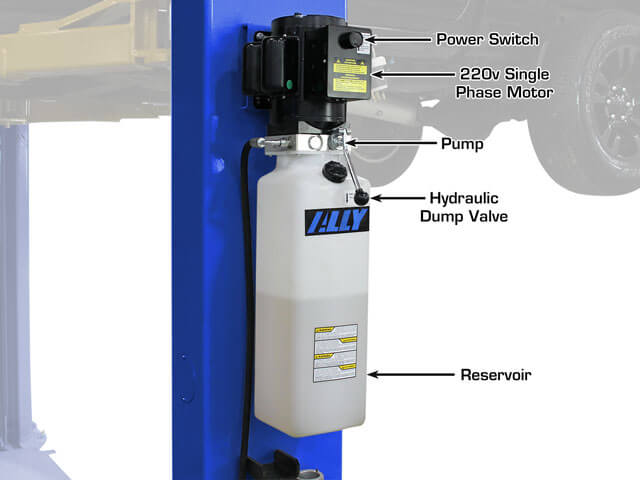

Standard with Premium ALLY Powerunit
Mounting Hardware Included
Shipping Weight: 1,700 lbs.
5 Years Manufacturer Structural Warranty
2 Years Manufacturer Hydraulic & Power Unit Warranty

Atlas® PVL9BP 2-Post Lift Specifications:

Capacity: 9,000 LB.

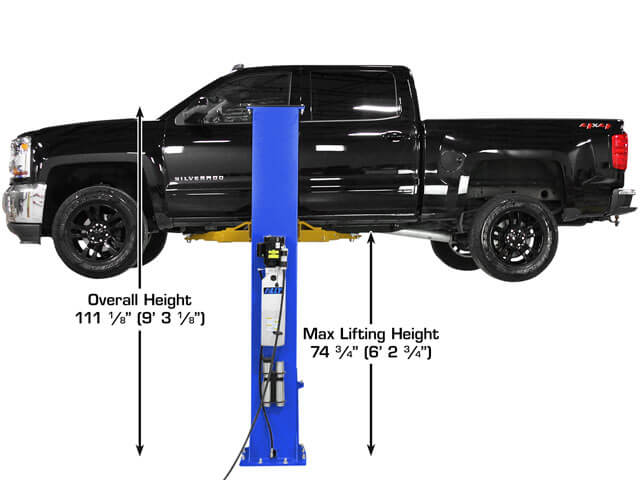

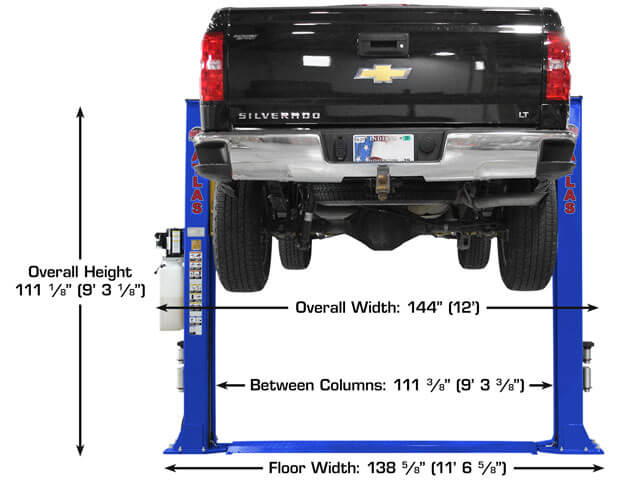

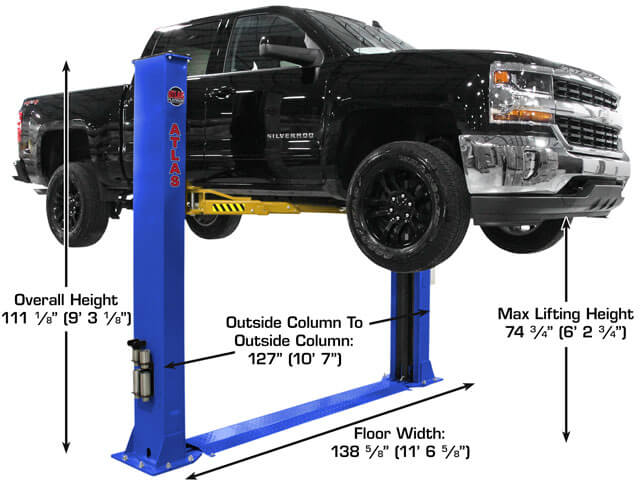

Overall Height: 111 1/8" (9’ 3 1/8")

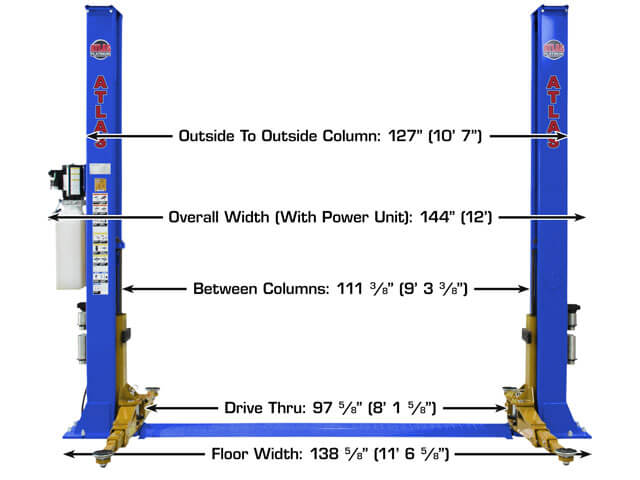

Overall Floor Width: 138 5/8" (11’ 6 5/8")
Outside Column to Outside Column: 127 1/2" (10’ 7 1/2")
Maximum Lift Height (Without Adapters): 74 3/4"
Maximum Lift Height (With Adapters): 83 3/4"
Minimum Arm Height: 4 1/2"
Inside Column: 111 3/8” (9’ 3 3/8”)
Drive Thru: 97 5/8” (8’ 1 5/8”)
Column Size: 7 5/8" x 14 1/4"
Column Thickness of Steel: 6mm

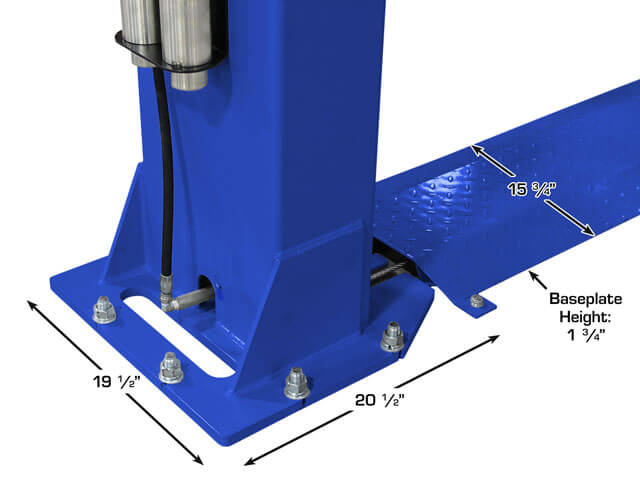

Base Of Lift: 19 1/2" x 20 1/2"
Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 1,700 LBS.

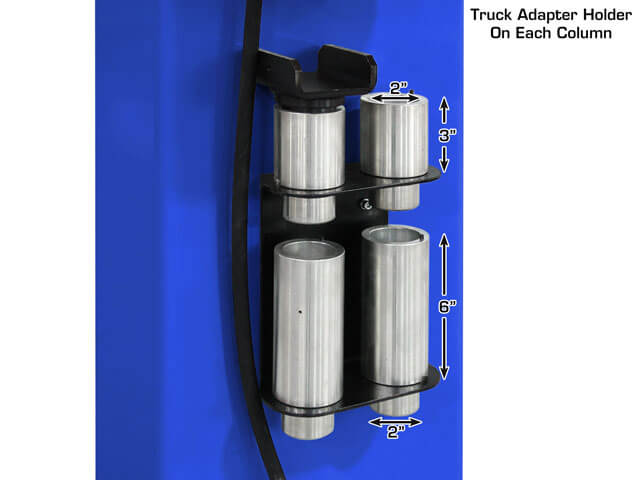

Adapter Heights: 4 Each 3”, 6”
Arm Hole/Adapter Peg Size: 2”
Requires a minimum of 6" of concrete with a 3000 psi. rating

Atlas Equipment PVL9BP - Platinum ALI-Certified 9,000 lbs Capacity Baseplate Two-Post Car Lift

Part #: ATEAP-PVL9BP

Availability: In Stock

Atlas Equipment PVL9BP - Platinum ALI-Certified 9,000 lbs Capacity Baseplate Two-Post Lift

Retail Price:$8,398.25

Your Savings:$3,599.25(43%)

Our Price: $4,799.00
