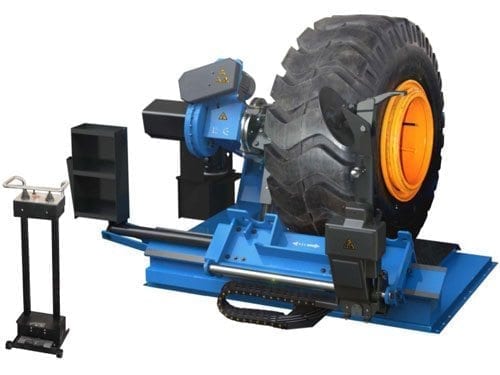

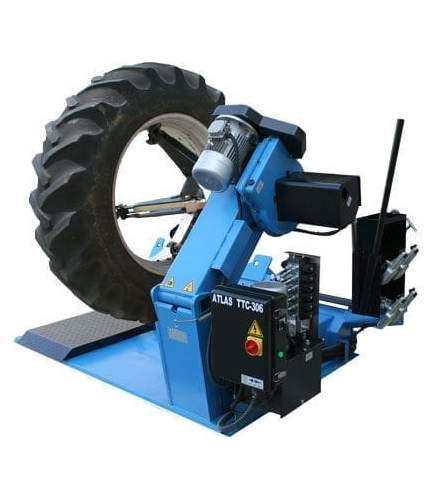

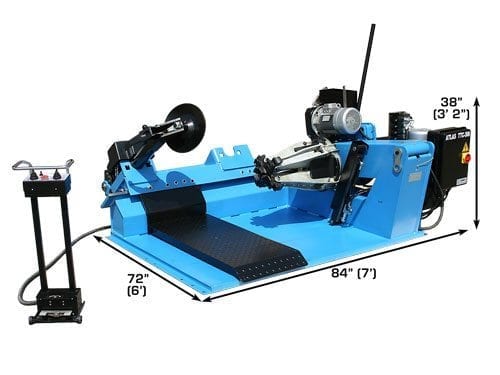

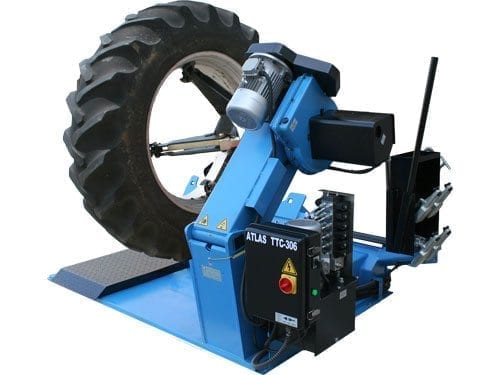

The Atlas TTC306 Super-Duty Truck Tire Changer is built for shops that don’t mess around with small jobs. Designed to handle rim sizes from 14" to a massive 56", tire diameters over 97", and widths up to 53", this machine makes agricultural, earthmover, super single, and off-road tires feel totally manageable. With automatic movement of the bead breaker disc and mount/demount head via remote control, the TTC306 boosts productivity while reducing operator fatigue—big wins for high-volume truck and ag tire shops.

What really sets the TTC306 apart is its deluxe feature set at a fraction of the cost of comparable machines priced north of $20,000. The wired remote console can even be upgraded to wireless, giving you total freedom on the shop floor—no cables, no clutter, just smooth operation wherever you need it. Built on proven global engineering and designed for nonstop commercial use, the Atlas TTC306 delivers the durability, capacity, and automation serious tire professionals demand. If your shop tackles the biggest tires out there, this is the changer that keeps you rolling.

Atlas TTC306 Truck Tire Machine Specifications:

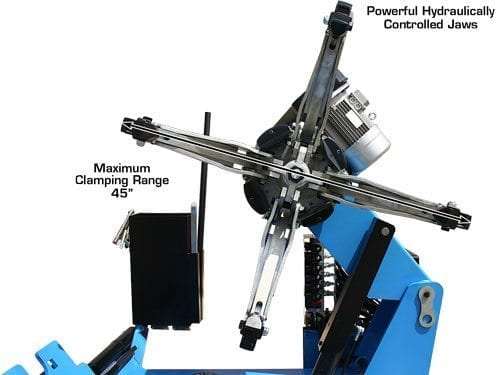

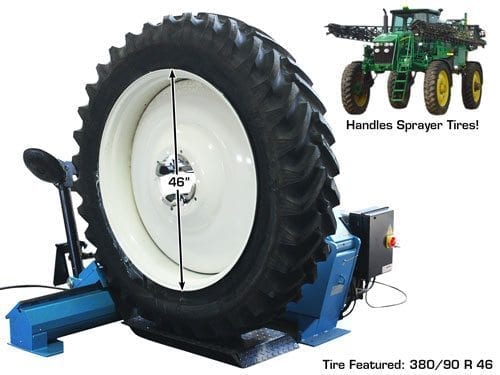

• Rim Clamping Range: 14" - 46"
• Max Clamping Size W/ Extensions: 56""
• Max Wheel Weight: 3,968 lbs.

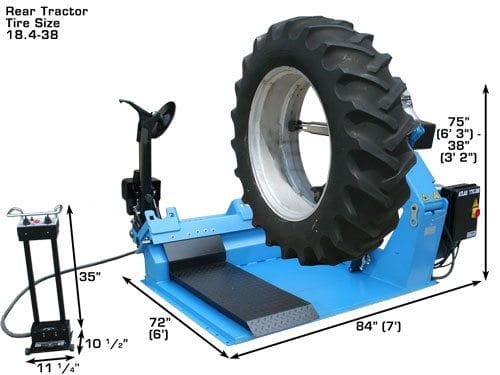

• Max Tire Diameter: 98" (8' 2")
• Max Tire Width: 42" (3' 6")
• Clamping Power: 13,173 lbs.
• Operating Pressure: 0-1885 PSI
• Acoustic Pressure: <70dBA
• Bead Breaker Force: 5930 lbs.
• Tool Arm Positioning: Automatic
• Tool Head Positioning: Automatic
• Construction: Single Piece Frame w/ Solid Floor Plate
• Hydraulic Motor Power: 3 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker required
• Chuck Motor Power: 3.5-4 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker required
• Shipping Weight: 2,260 lbs.
