• Combo package includes Garage Pro9000 & two RJ35 Bridge Jacks
• Caster Kit With Polyurethane Wheels Included
• Steel Approach Ramps Included
• Steel Jack Tray Included
• 4 Plastic Drip Trays Included
• Wheel Stops Included
• 2 Rubber Wheel Chocks Included
• Truck Adapter set for Each Jack Included
• One Year Manufacturer Warranty (Parts Only, No Labor).

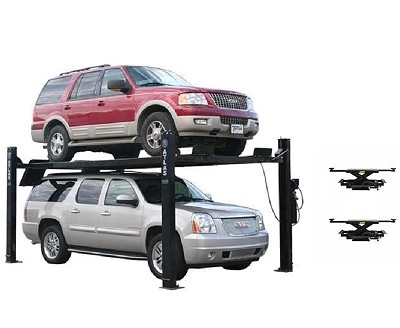

The Atlas® Garage PRO9000 4 post lift is a heavy duty hobbyist lift and features the highest lifting capacity of all our Garage PRO series lifts. The Garage PRO9000 is extra long and has the longest runways (we believe) of any portable 9,000 LB. four post on the market. That feature allows the lift to handle some of the longest wheel base vehicles out there. The Garage PRO9000 is extra wide allowing even Diesel Duallys to be driven onto the runways. This lift also features extra height so everything from Smart Cars® to a Dually can be parked both below and on the runways.

The commercial grade features of the Garage Pro 9000 make this lift the perfect choice for automotive service center or “Mr. Homeowner” that needs a PORTABLE professional four post lift at a competitive price.

This combo package also includes two of the the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Atlas® Garage PRO9000 Specifications

• Capacity 9,000 Lb.
• Lifting Height To Top Of Runway 85" (7' 1")
• Clearance Under Runways 80 1/4" (6' 8 1/4")
• Height Of Columns 95 3/4" (7' 11 3/4")
• Overall Width (Without Motor) 123 1/2" (10' 3 1/2")
• Overall Width (With Motor) 131 1/2" (10' 11 1/2")
• Overall Length With Approach Ramp 227 1/2" (18' 11 1/2”)
• Approach Ramp 31" (2' 7")
• Runway Width 21 1/4" (w/ Rails) or 20" (Driving Surface)
• Runway Length 199 1/2" (16' 7 1/2")
• Runway Thickness 4 3/4"
• Width Between Runways 39 3/4" (3' 3 3/4")
• Width Between Runway Rails 35 1/2" (2' 11 1/2")
• Outside Runway To Outside Runway 79" (6' 7")
• Clearance Between Columns 110 1/2" (9' 2 1/2")
• Length Between Columns 184 1/2" (15' 4 1/2")
• Maximum Wheel Base 187" (15' 7")
• Drive Thru (Outside Of Tire To Outside Of Tire) 97 1/4" (8' 1 1/4")
• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight 2,300 lb..
• Capacity: 3500 lbs

• Lower Extension Width (Between Runway): 20 1/2" to 47"
• Top Width (Arms Retracted & Extended): 39 12" to 64 3/4"
• Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2"
• Lift Pad Height Above Arm: 1 3/8"
• Max Height Raised w/o Adapter: 11"
• Max Height Raised w/ Adapters: 17 1/4"
• Shipping Weight: 350 lbs
• Adapter Heights: 2 Each 1 1/2", 5"
• Arm Hole/Adapter Peg Size: 1 1/2"
