Product Features & Benefits
WARNING: California’s Proposition 65

MADE IN USA.
Self-Contained Pneumatic Pallet Positioner System Offers Unsurpassed Performance
EZ-Adjust Knob For Capacity Adjustment
Optional Brake Prevents Rotator Ring From Turning
EZ Loader-3648 has a fixed (non-rotating) 36" x 48" platform

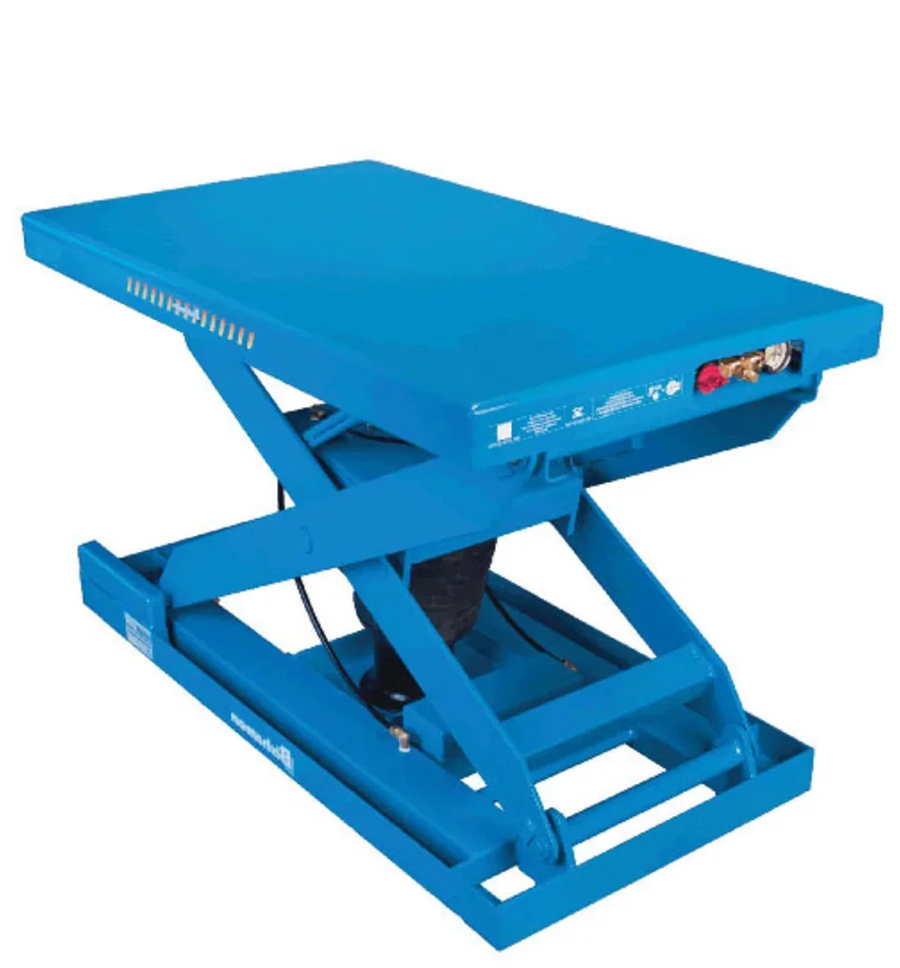

The EZ Loader® Automatic Pallet Positioner is a cutting-edge solution for safe and efficient pallet loading. Featuring a self-leveling design, this pallet lifter and leveler automatically keeps loads at an optimal working height—reducing bending, reaching, and operator fatigue while boosting productivity in any material handling environment.
Unlike traditional spring-based units, the captive-air system delivers smooth, dampened platform movement and eliminates the need for mechanical springs.
The EZ Adjust™ knob offers simple three-position height adjustment without altering air pressure, making it easy to customize for varying load weights. This air-powered pallet positioner arrives fully assembled and ready to use—just connect to your air supply.
The EZ Loader® is also forklift portable and compatible with optional mobility packages, offering maximum flexibility on the warehouse floor.
Pressure relief valve prevents excess pressure build-up
Surfaces are phosphatized and powder coated with a high quality polyester for a lasting, durable finish.
Rollers are entrapped in the base frame and platform for added stability.
A full coverage finger guard eliminates pinch points between the rotator underside of the rotator ring and the bearings.
Integral maintenance blocks.
The EZ Loader is CE marked under the Machinery Directive (2006/42/EC)
One Year Manufacturer Warranty

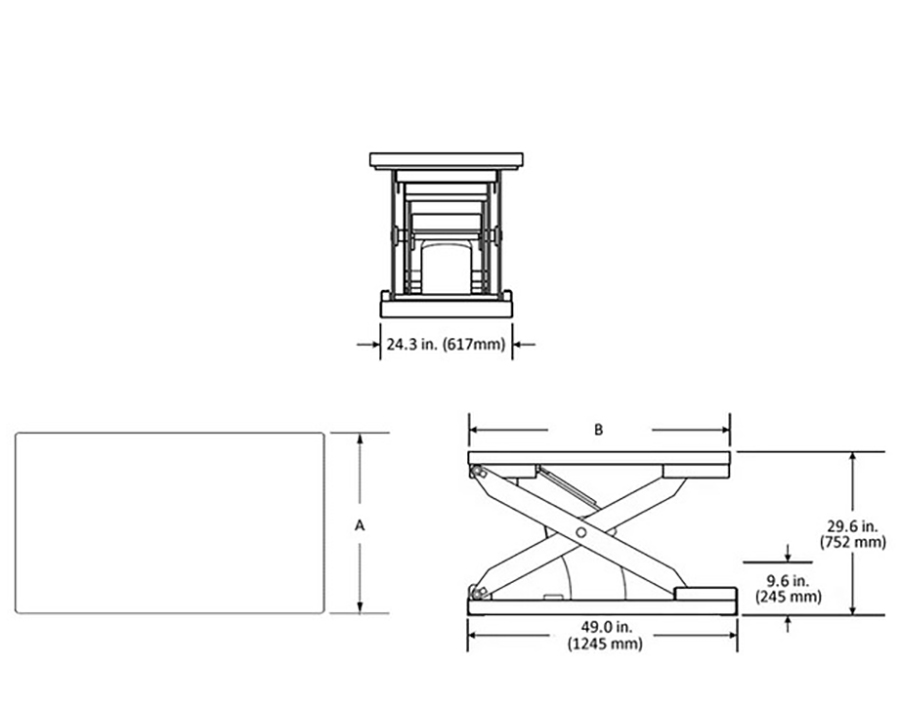

Specifications:

Capacity: 4,000 lbs
Lowered Platform Height: 9.6"
Raised Platform Height: 29.6"
Platform Size: 36" X 48"
Air Pressure Capacity Adjustment: Infinite (10 – 60 psi / 0.7 – 4.1 bar)
On-board Capacity Adjustment: 3 position knob (light – medium – heavy)
Shipping Weight: 488 lbs

Bishamon EZ Loader-3648 - 4,000 lbs Capacity Self-Leveling Automatic Work Positioner Lift

Part #: EZ Loader-3648

Availability: In Stock

Retail Price:$5,000.00

Your Savings:$1,531.00(31%)

Our Price: $3,469.00

Pick Up/Delivery Options *

Free Pickup - Ontario, CA 91761 Deliver to my Address +$399
