MADE IN USA.
Feet-clear safety circuit automatically stops the platform descent at 9 in. above the floor preventing unintentional foot entrapment under the platform or pallet.
Safety Warning Lights and Alarm alert the operator before the platform lowers from the intermediate safety stop.
Platform Safety Covers guard pinch points around the mast and mast rollers.
Chain Cover guards pinch points around the upper chain wheel.
Hydraulic power unit with unitized control valves and reservoir.
1/2 HP 115 V electric motor z 40.50 in. diameter rotating disk supported by 32 precision ball bearings.
Automatic Platform Lock prevents platform rotation in the lowered position.
Hinged integrated approach ramp.
Integrated lifting tabs and platform catches for transporting with a forklift.
Rear leveling feet.
Durable powder coated finish.
One Year Manufacturer Warranty

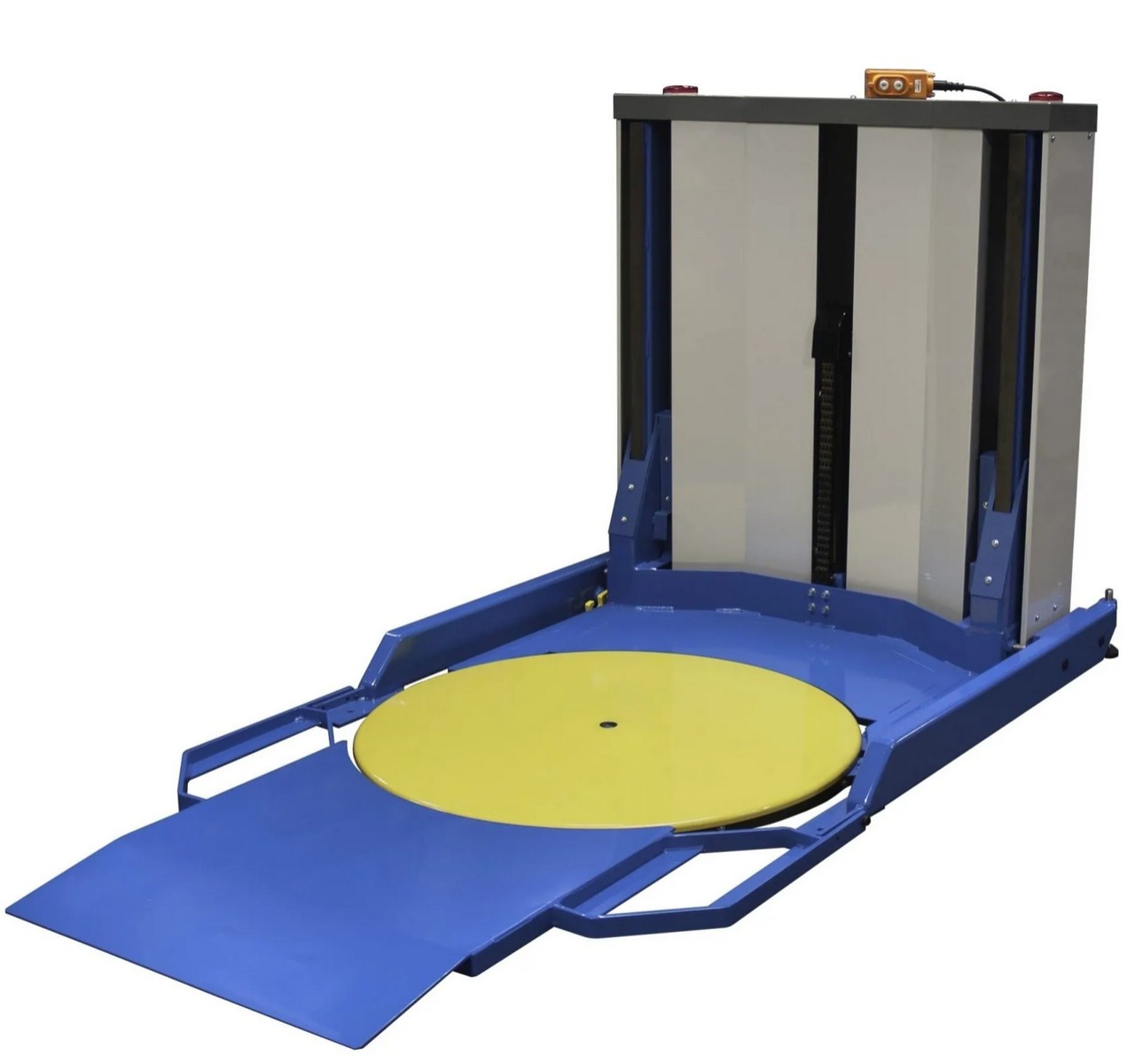

Bishamon EZ Off Lifter pallet positioners are the ultimate ergonomic solution for loading or unloading pallets in applications when loads are transported with a pallet truck. These revolutionary products provide the answer for maintaining the load at a convenient working height. They also provide easy pallet rotation and near side loading to eliminate excessive lifting, bending, and stretching. They are electro-hydraulic operated and available in a free-standing front access model and a bolt-down model with ramp access from three positions.

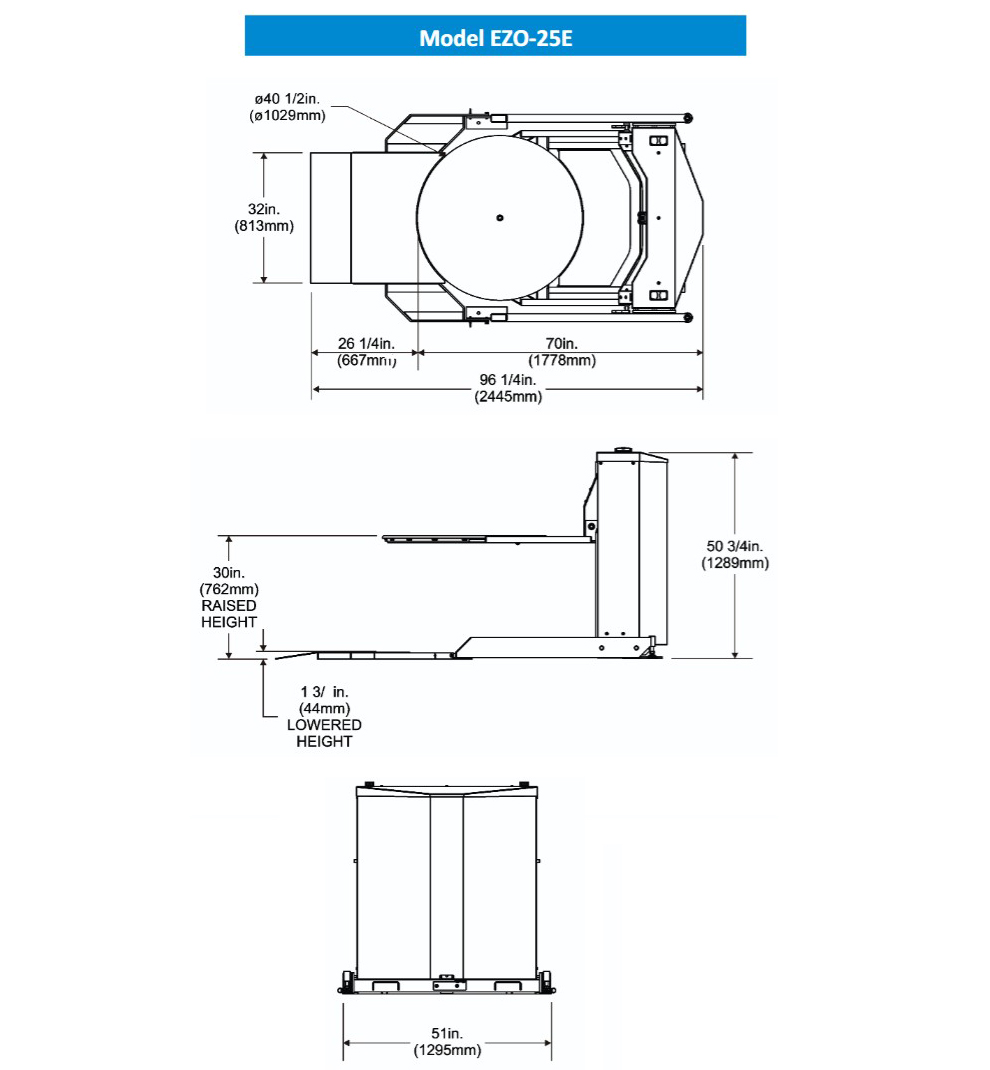

Specifications:

Model: EZO-25E
Operation: Elec-Hydraulic
Max. Capacity: 2,500 lbs
Floor Anchors Required: No
Lowered Height: 1.75"
Raised Height: 30"
Max. Pallet Size: 44" X 48"
Installation: Not Anchored
Approx. Ship Weight: 1,350 lbs

Bishamon EZO-25E - "EZ OFF LIFTER" Pallet Truck Accessible Work Positioners

Part #: EZO-25E

Availability: Out of Stock

Retail Price:$14,000.00

Your Savings:$4,150.00(30%)

Our Price: $9,850.00
