Dual voltage operation 110-120V / 220V 50 / 60Hz
Exceptional ultimate vacuum rating as low as 50 microns
Advanced air cooled motor design for operation in high ambient temperatures
Proprietary oil mist free exhaust port cap for clean, safe job environment
Gas ballast valve speeds achievement of deep vacuum
Multiple port connections for 1/4", 3/8" and 1/2" ACME
Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
Solid rubber base provides extreme shock resistance
Sure-grip handle ergonomically designed for superior comfort and portability
Proprietary spring-activated polymer-based exhaust valve enables a 99.999% seal on the discharge port of the vacuum pump mechanism
Improved materials selection including hardness and additives, reduces wear and prevents gallings
Improved internal oiling system design extends life and improves vacuum performance

Specifications:

Power: 110V-120V / 220V 50 / 60 Hz USA plug
Stage: Single
Motor Size (HP) RPM @ 50 / 60 Hz: 1 / 2 (HP) 2880 / 3440 RPM
Dimensions: 13.1" x 5.5" x 10"
Weight: 22.5 lb / 10.2 kg
Operating Temperature Range: 0 °C (32 °F) to 52 °C (125 °F)
Ultimate Vacuum: as low as 50 mirons
Oil Capacity: 19 oz / 550 ml
Overload Protection: Motor thermally protected, dual voltage units have extra IEC fuse
Control System: On-off power switch
Free Air Displacement: 6 CFM @ 60 Hz, 144 l / m @ 50 Hz
Intake Fittings: 1/4" SAE, 3/8" and 1/2" ACME

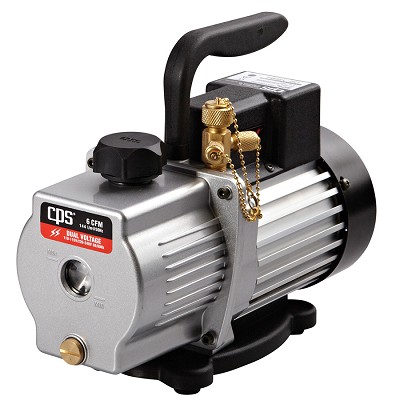

CPS Products VP6S - 6-CFM 1-Stage Vacuum Pump - Dual Voltage (115V / 230V)

Part #: CPSVP6S

Availability: Out of Stock

Retail Price:$400.00

Your Savings:$151.81(38%)

Our Price: $248.19
