Product Features & Benefits
WARNING: California’s Proposition 65

World’s 1st 3D Wheel Aligner for Multi-Axle Trucks, Buses & Trailers.
Designed for alignment of Buses, Trucks, Trailers & Cars
One shot Runout compensation of all 6 axles.
One shot Caster swing for twin steer axles.
Simultaneous alignment up to 4 axles
Alignment of Trailers up to 8 axles in reverse parking by 2 steps
Innovative Image Processing technology.
No Electronics on Wheels.
Mobile stands for storing Wheel brackets & Targets.
Extra monitor provided to view screen underneath from the PIT.
Ideal for all workshops, tire shops & OEM end of line requirements.
Patented in USA
Low Maintenance Cost
Less technicians, simple operation
Made In India.
One Year Manufacturer Warranty
Remote Video Call & Phone Training for Installation Included

Included Accessories:

1 Set of PC, Monitor, Keyboard, Mouse & Windows OS
8 Wheel Brackets for rim sizes 15" to 28"
1 Brake Lock
1 Brake Pedal Lock
1 Steering Lock for Cars
1 Steering Lock for Trucks, Buses & Trailers
8 Target Plates
4 Rotary Plates
32 Rim Locking Pins with Adaptors
2 Wheel Stoppers
2 Three-Ton Target Stands
1 Two-Ton Target Stand
1 Four-Shaft Calibration Kit
1 Secondary LED Monitor

Specifications:

Camber (Front / Rear) : ± 15° 00' (Accuracy: ± 00° 02')
Caster: ± 28° 00' (Accuracy: ± 00° 05')
Kingpin Inclination: ± 25° 00' (Accuracy: ± 00° 05')
Teo (Front / Rear):± 20° 00' (Accuracy: ± 00° 02')
Total Toe: ± 40° 00' (Accuracy: ± 00° 04')
Setback (Front/ Rear): ± 25mm (Accuracy: ± 2mm)
Scrub / Thrust Angle: ± 10° 00' (Accuracy: ± 00° 02')
Runout: ± 10° 00' (Accuracy: ± 00° 02')
Included Angle: ± 40° 00' (Accuracy: ± 00° 05')
Track Width difference : Actual (Accuracy: ± 2 mm)
Power Supply: 110V
Power: 250W
Operating Temperature: 32°F - 122°F

View Manatec JUMBO-3D-SUPER-4A User Manual.

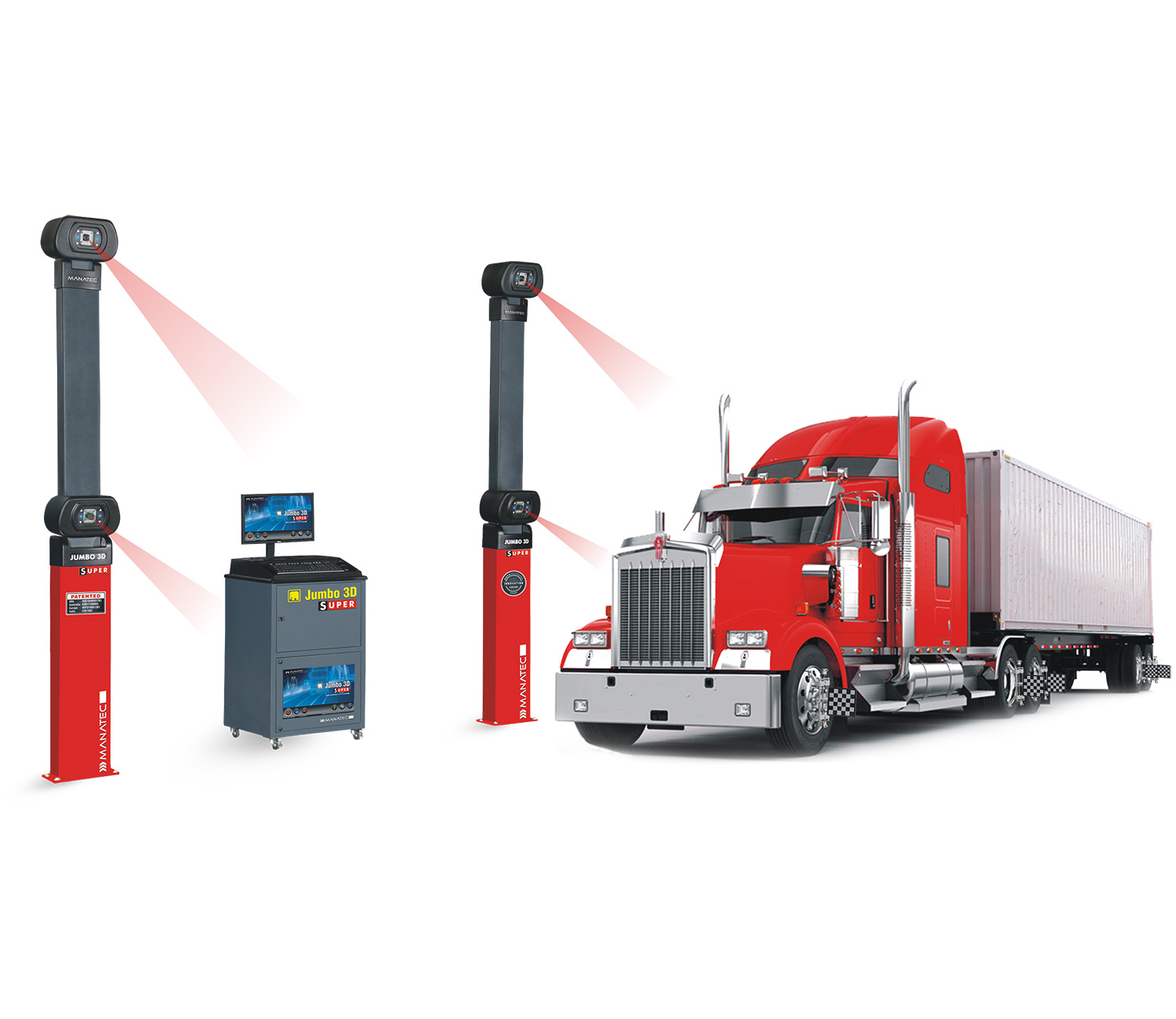

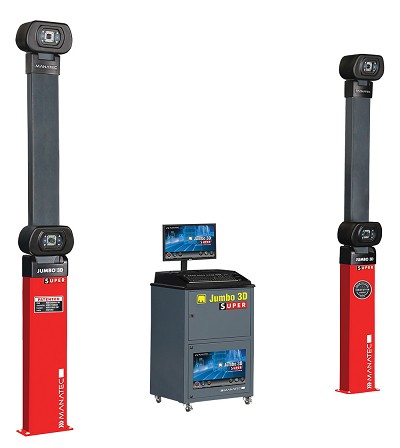

Manatec JUMBO-3D-SUPER-4A - Heavy Duty 3D Wheel Alignment Machine for Trucks, Buses & Trailers

Part #: MANJUMBO-3D-SUPER-4A

Availability: In Stock

Retail Price:$34,000.00

Your Savings:$8,200.00(24%)

Our Price: $25,800.00

Free Shipping

Installation & Training

Onsite Professional Installation & Training (+$1,750.00)
