- Compact, heavy duty design for years of reliable service
- Multiple options for smoke injection include built-in internal compressor, shop air and inert gases
- Quick smoke generation
- Built-in safety pressure relief valve
- Built-in pressure regulated at 0.5 PSI for safe EVAP testing
- Large easy to read pressure decay gauge 0-30 in. H2O (70 mbar) – EVAP
- Large easy to read pressure decay gauge 0-30 psi – HP/HD
- Easy to read and clean flow meter
- Non-toxic and non-corrosive smoke
- 10’ 12V power cables with durable clamps
- Heavy duty 10’ smoke injection hose
- Velcro strap for hose and power cable storage
- High intensity, battery operated smoke illuminating telescoping flashlight
- One Year Manufacturer Warranty
Specifications:
- Voltage: 12 VDC
- Input Pressure: Max 100 psi (7 bar)
- Output Pressure:
EVAP 12 – 14 inH2O (30 – 35 mBar)
HP internal pump Max 22 psi (150 kPa)
HP external pressure source Max 28 psi (190 kPa)
- Safety Pressure Relief: 120 (±5) psi
- Auto Shut-off: 5 minutes
- Oil Fill Line Indicator: 3.4 oz (100 ml (±10 ml)
- Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
- Power Consumption: Max 6.5 Amps
- Operating Temperature: 0°F to 140°F (-17°C to 60°C )
- Operating Humidity: No Restrictions
- Operating Altitude: No Restrictions
- Vapor Output Hose: 10 feet
- Power Cable: 10 feet
- Pressure Supply: Air/Inert gas/Pump
- Dimensions: 11.8 x 9.5 x 11 in
- Weight: 10.13 lbs (smoke machine only)
This smoke machine is for evap, turbo/intake and heavy duty truck testing
providing a solution to difficult to diagnose automotive leaks. Mobile
repairs are now possible as this unit includes an internal compressor
which allows use without the need of shop air while also having the
ability to utilize shop air and inert gases. This specifically
engineered unit allows today’s technician to quickly and efficiently
locate and repair the complete spectrum of evap, turbo, heavy duty
truck, intakes, exhausts, vacuum lines, cooling systems, manifolds,
catalytic converters, brake boosters, passenger compartment air, water
leaks and much more. This kit includes all the adapters for evap, high
pressure and heavy duty truck testing. Mastercool now offers the
professional technician the capability of complete automotive smoke
detection testing in a single unit. Mastercool now offers the
professional technician the capability of complete automotive smoke
detection testing in a single unit.

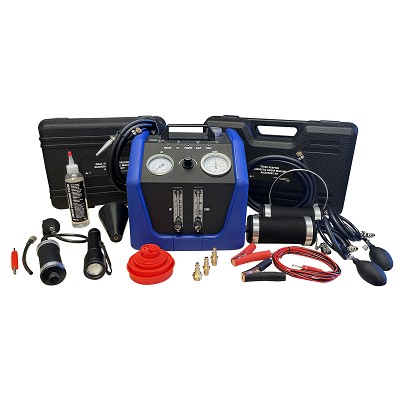

Accessories included: smoke hose, power cord, full set of block off
caps, exhaust cone, evap schrader valve remover/installer, evap service
port adapter hose, high intensity smoke illuminating battery powered
flashlight, 8 oz smoke producing fluid, bladder for intake testing, (2)
bladders for heavy duty/truck applications, 6” ring, temperature sensor
port adapter, oxygen sensor port adapter and pressure sensor port
adapter
