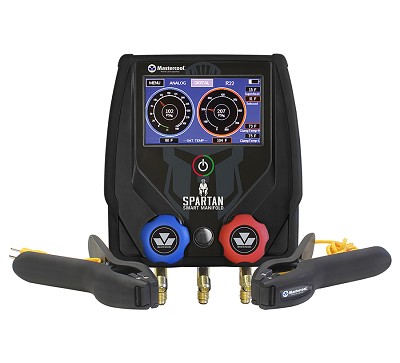

• SPARTAN series smart manifold with Bluetooth® wireless technology.
• Equipped with a 4.3” color touchscreen LCD, allowing the user to navigate through all of the screens and options with a quick slide of their finger.
• Built-in premium vacuum sensor and an accuracy down to 1 micron, there is no need for additional equipment to properly diagnose and service your A/C system.
• Includes data logging and will offer additional features such as leak test timers and alarms but that’s not all! In conjunction with this manifold will be the ability to download free Mastercool Connect app, which will provide full mobility as activity can be easily viewed on all compatible hand-held devices. This will allow for endless amounts of data collection and diagnostics at your fingertips.

Specifications:

• Gauge: Class 1.0
• Pressure Display: psi, bar, MPa, kg/cm2, kPa
• Temperature Display: °F or °C
• Deep Vacuum Display: micron, mBar, kPa, Pa, Torr, mTorr, mmHg
• Sensing Resolution: 1 psi (.07 bar, .007 MPa, .07 kg/cm2)
• Sensing Accuracy: ±1 psi or 1% of reading (whichever is greater)
• Working Pressure: 0 to 725 psi (50 bar, 5 MPa, 52 kg/cm2)
• Proof Pressure: 1000 psi (70 bar, 7 MPa, 70 kg/cm2) (Tolerable pressure without internal damage)
• Refrigerant Temperature Range: -40 to 200°F (-40 to 93°C)
• Operating Temperature: 32 to 122°F (0 to 45°C)
• Temperature Accuracy: ±1°F (±0.5°C) between 32 to 160°F (0 to 71°C)
• Storage Temperature: 10 to 120°F (-12 to 49°C)
• Vacuum Sensor: Range 20,000 to 1 micron
• Connections: 1/4” m-flare and 3/8” m-fl (vacuum hose connection (4 way only)
• Power: Li-Ion rechargeable battery (charge through supplied USB type C connector)
• Battery Life: 30-36 hours normal use (25-30 hours with bluetooth enabled)
• Auto-Off: after 30 minutes, sleep mode 4 minutes
• Data Logging: Up to 36 hours
