• Genisys Scope Module with InfoTech 2006 provides the power of a "Big Box" analyzer in the palm of your hand at a technician affordable price.
• 4 Channel Lab Scope High speed at 4 Mega Samples per second
• Display Parade, superimposed, and raster on conventional ignition systems.
• Fast single cylinder display with burn kV, burn time, peak kV, RPM, etc. Diagnose today`s DIS and Coil-on Plug systems (optional COP adapters)
• View multiple sensor waveforms simultaneously to reduce diagnostic time.

Genisys Scope Module with InfoTech 2006 provides the power of a "Big Box" analyzer in the palm of your hand at a technician affordable price. (Note: To be used with the Genisys Scan Tool.)

Genisys scope is an electronic toolbox complete with 4-Channel Lab Scope, Ignition Scope, Digital Multimeter, and Graphing Multimeter. An excellent compliment to scan diagnostics. Perhaps the best benefit to a technician is the fast and simple- to-use graphical user interface. The combination of simple and fast operation, easy to use color-coded cables, built in training mode, and powerful diagnostic features makes the Genisys scope indispensable for the seasoned professional or the entry level technician.

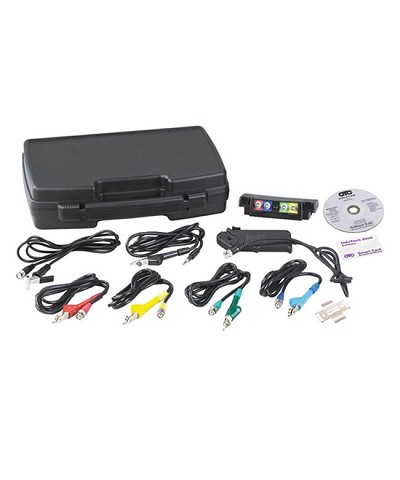

Kit includes the 4-Channel Scope Module, 4 DMM leads, ground lead, kV ignition lead, ignition sync lead, manual, and scope smart card.

Features: Display Parade, superimposed, and raster on conventional ignition systems. Select engine firing orders from the setup menu or enter a custom firing order. Fast single cylinder display with burn kV, burn time, peak kV, RPM, etc. Diagnose today`s DIS and Coil-on Plug systems (optional COP adapters). Horizontal and Vertical cursors. Preset Tests Connect to sensor, press a button and diagnose. Custom screens especially designed for testing common sensors. Graphically print or store captured data.

And much more......4 Channel Lab Scope High speed at 4 Mega Samples per second, see waveforms other scopes only claim to see. View multiple sensor waveforms simultaneously to reduce diagnostic time. Auto Setup feature to reduce stetup time. One button automatic "Glitch" capture. Color coded waveforms match the channels and leads for simple easy operation. Overlay one waveform over another for precise comparisons. Press "Freeze" to view the continuously recorded data then save it or print it. Display lab scope waveforms and Digital Multi-meter readings on the same screen.
