• Liquid refrigerant flushing function can flush A/C systems or individual components using liquid refrigerant instead of harsh chemicals.
• Automatic internal tank refill. No stopping to fill the internal tank during service, or before service.
• Services both standard and hybrid vehicle A/C systems.
• Fully automatic operation — program for service, walk away and return when complete.
• 95% recovery efficiency
• Programmable vacuum operation helps get to the necessary vacuum level in any condition quickly.
• System leak test to identify gross leaks in a system.
• Charge accuracy within +/- 1/2 oz.
• Automatic oil drain shows how much oil was removed from the system during service.
• Automatic air purge removes the potential of air accumulating in the internal tank.
• Integrated refrigerant identifier (meets SAE J2927)
• 1/4 Color VGA display. Large easy to read graphical display
• On-board printer capable of printing vehicle service report slips to present to customers.

• Operating voltage - 103-127V, 60Hz AC
• 100mm, EN837-1 pressure gauges
• Alpha-numeric keypad with service function keys
• 1.5 cfm dual stage vacuum pump1/3 hp hermetic compressor
• 22 lb. ASME internal storage tank
• USB, SD, and RJ45 I/O ports
• 8 ft. SAE J2888 service hoses with 1234YF high and low side system couplers
• Meets all requirements of SAE J2843

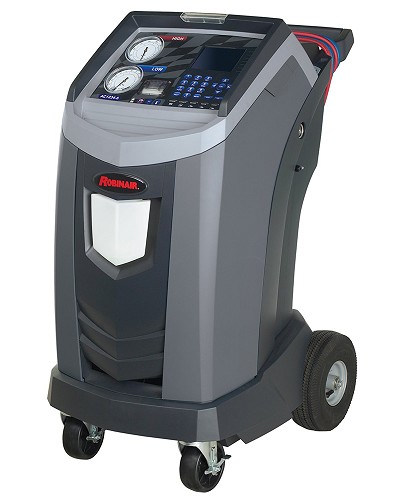

View Robinair AC12346 Recovery Machine User Manual
