Product Features & Benefits
WARNING: California’s Proposition 65

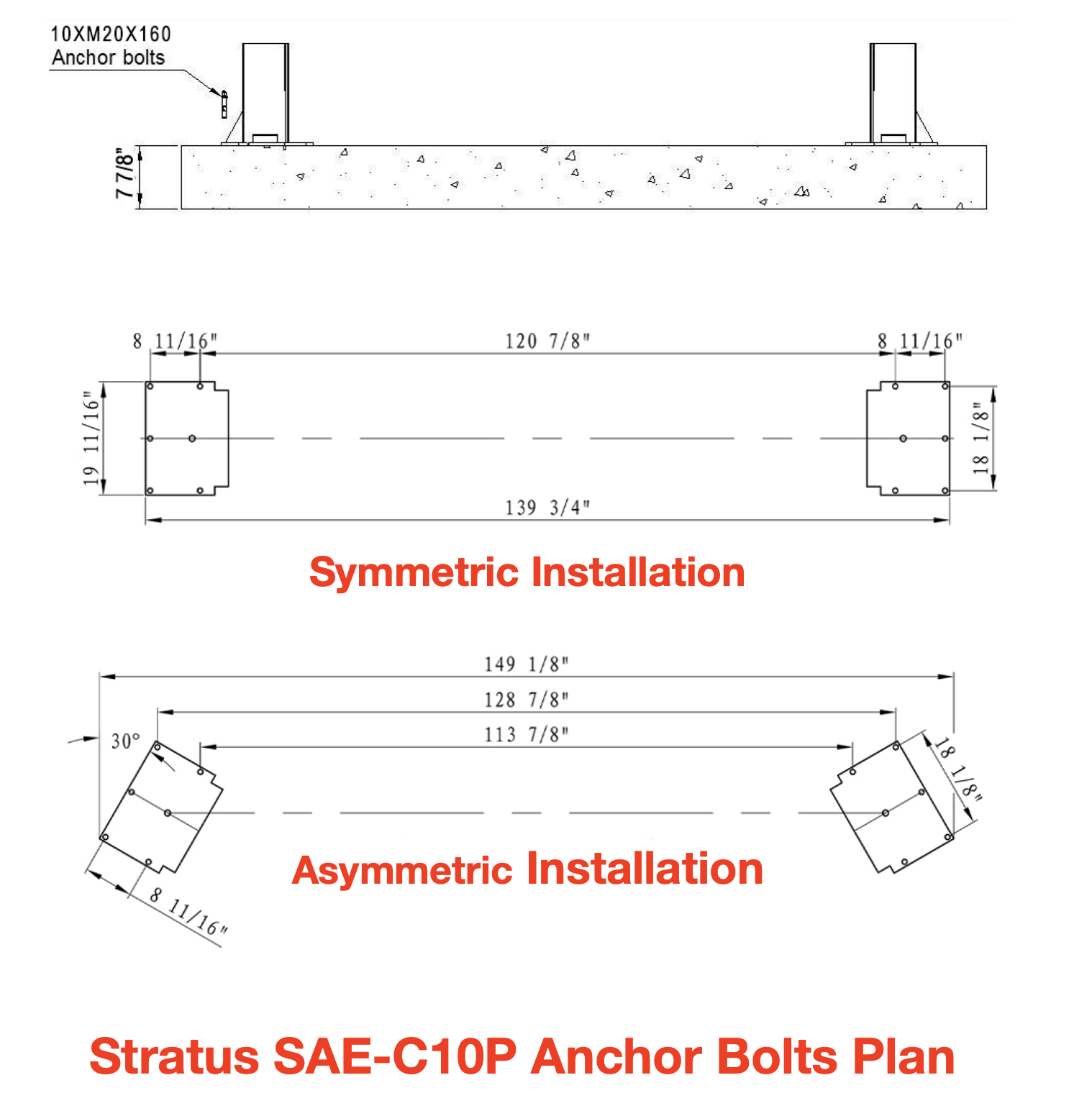

Symmetric & Asymmetric, 2 installation methods
Clear floor overhead single point manual release
Direct Drive

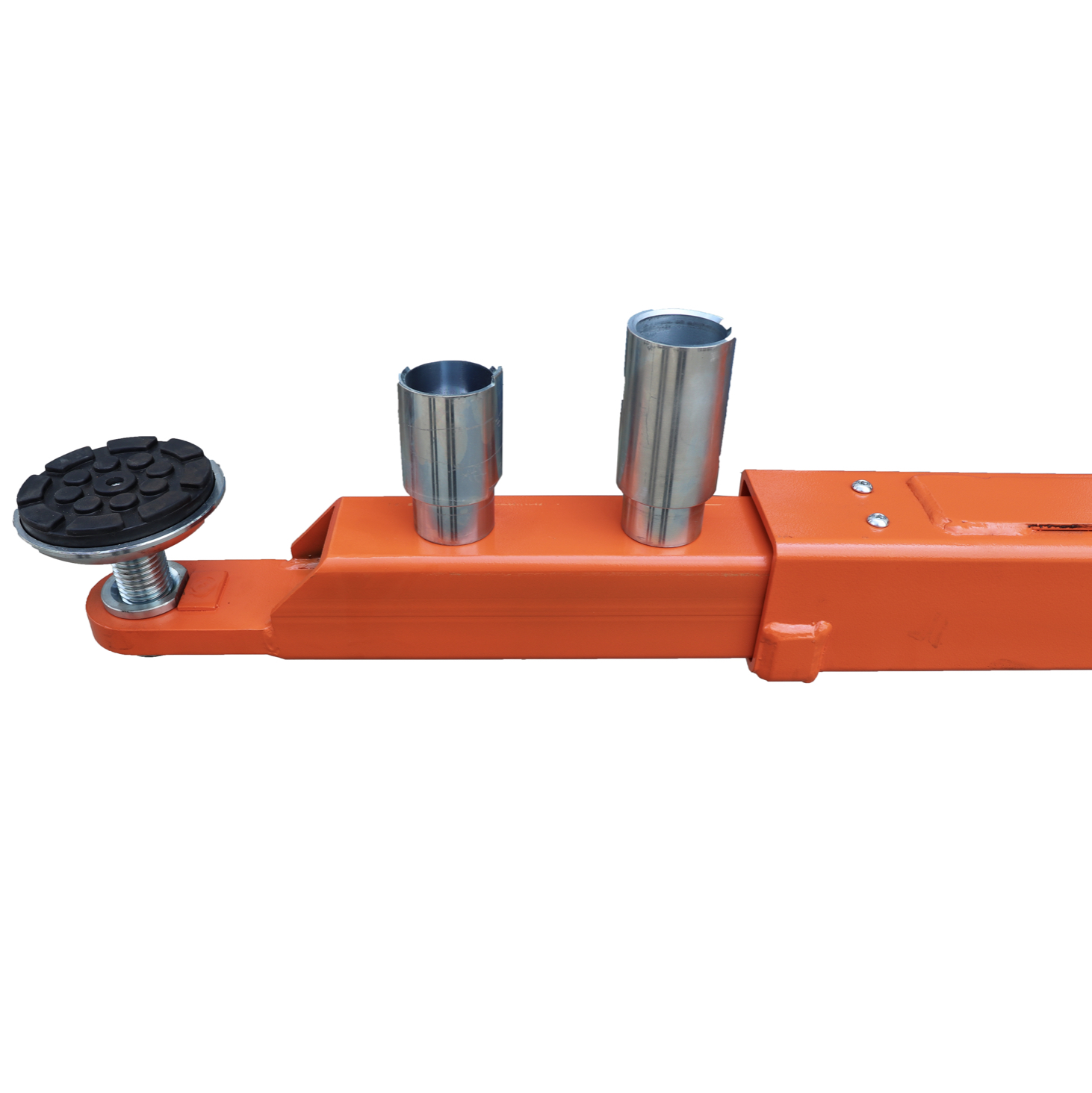

4 Screw-up rubber pads & 8 truck adapters included

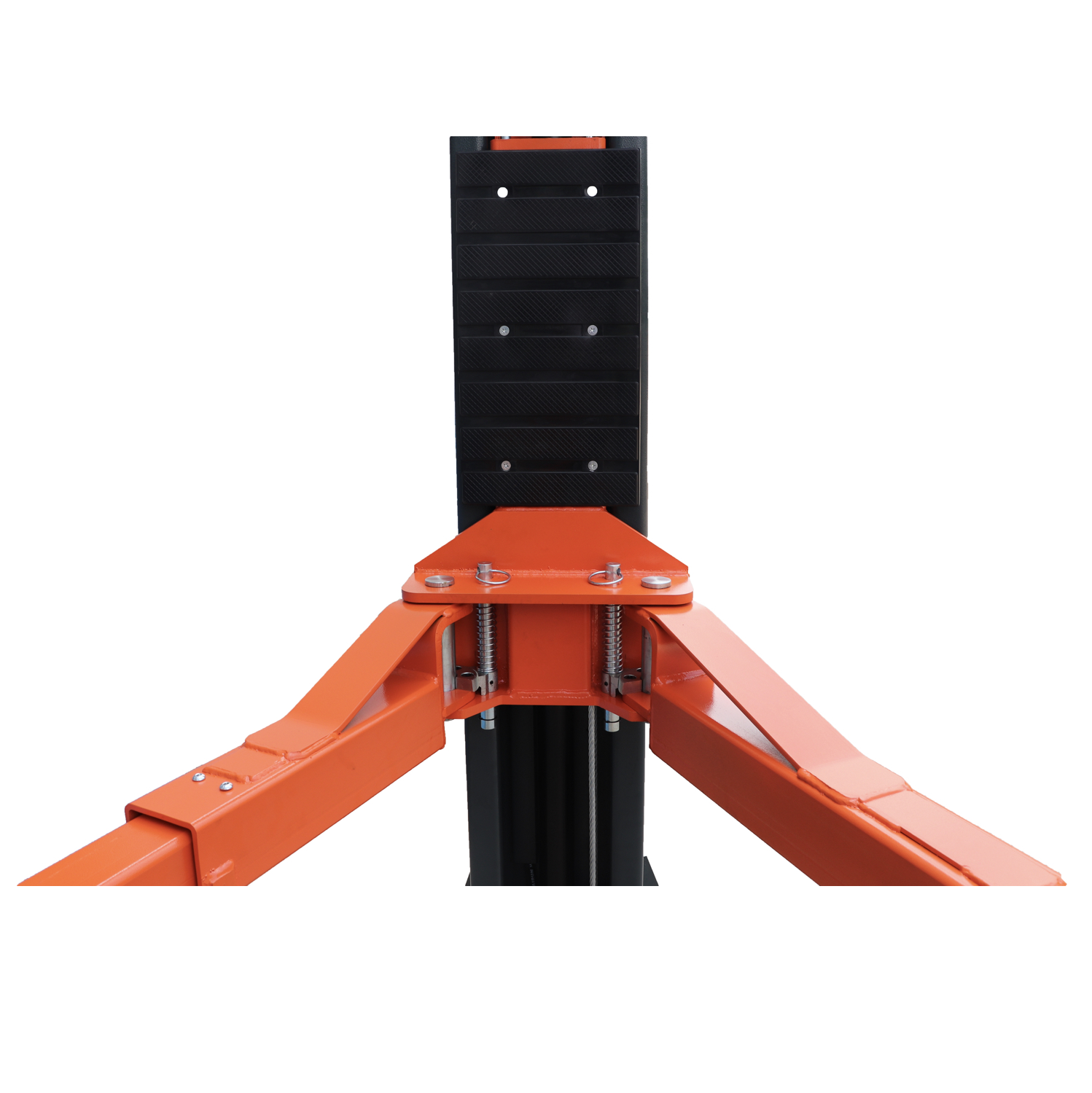

2 of 2-stage arms & 2 of 3-stage arms
Top limiter switch
Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)

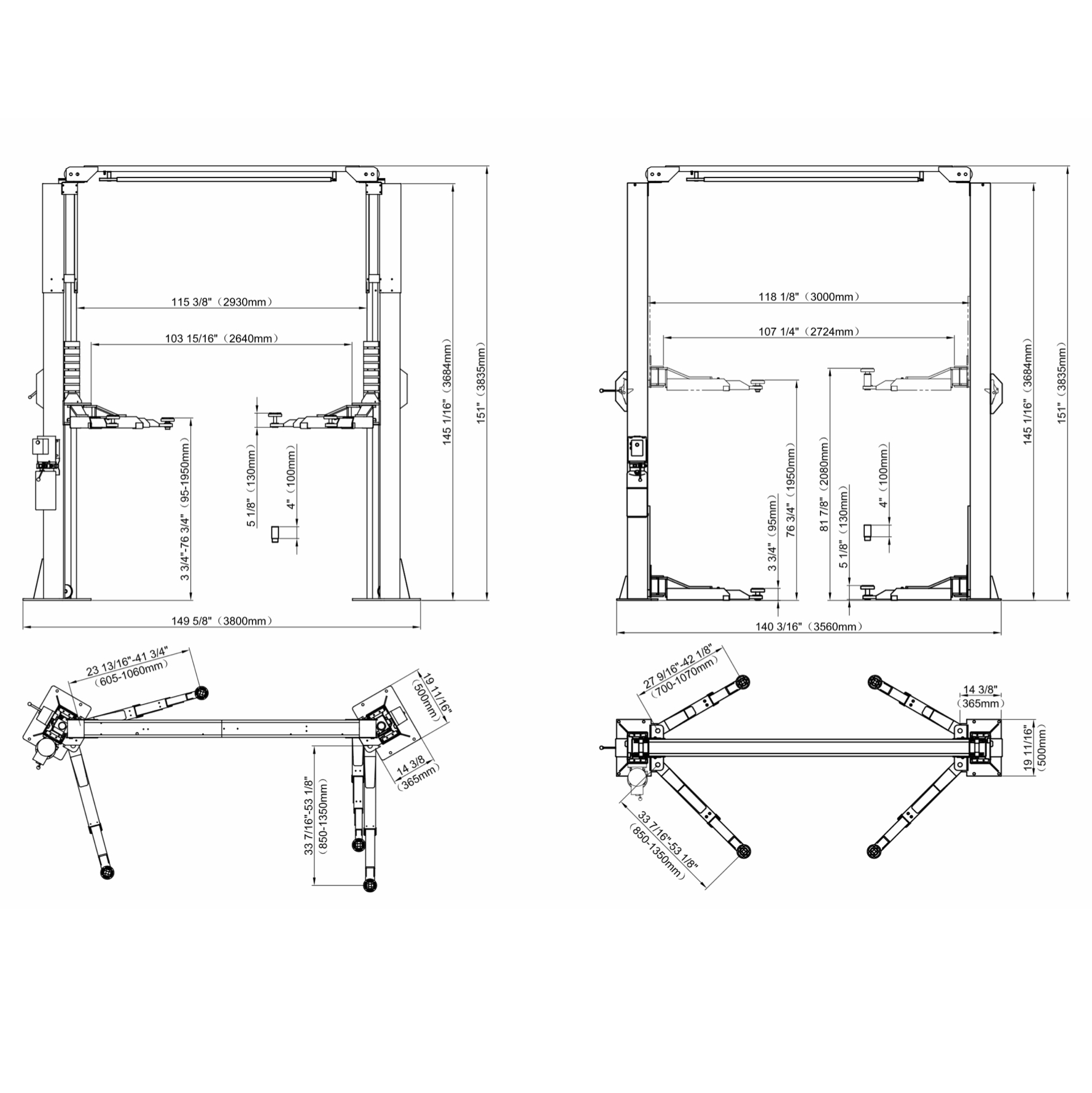

Stratus SAE-C10P 2-Post Lift Specifications:

Lifting Capacity: 10,000 LBS
Overall Height: 151"
Width Inside Column(Symmetric): 118 1/8"
Width Inside Column(Asymmetric): 115 3/8"
Max Lifting Height with truck adaptor: 81 7/8"
Max Lifting Height without truck adaptor: 74 3/4"
Truck adapter size: 4 of each 2 3/4"(70MM) & 4"(100MM)
Min Height: 3 15/16"
Drive Through(Symmetric): 107 1/4"
Drive Through(Asymmetric): 103 15/16"
Lifting Time: About 50 SEC
Lowering Time: About 40 SEC

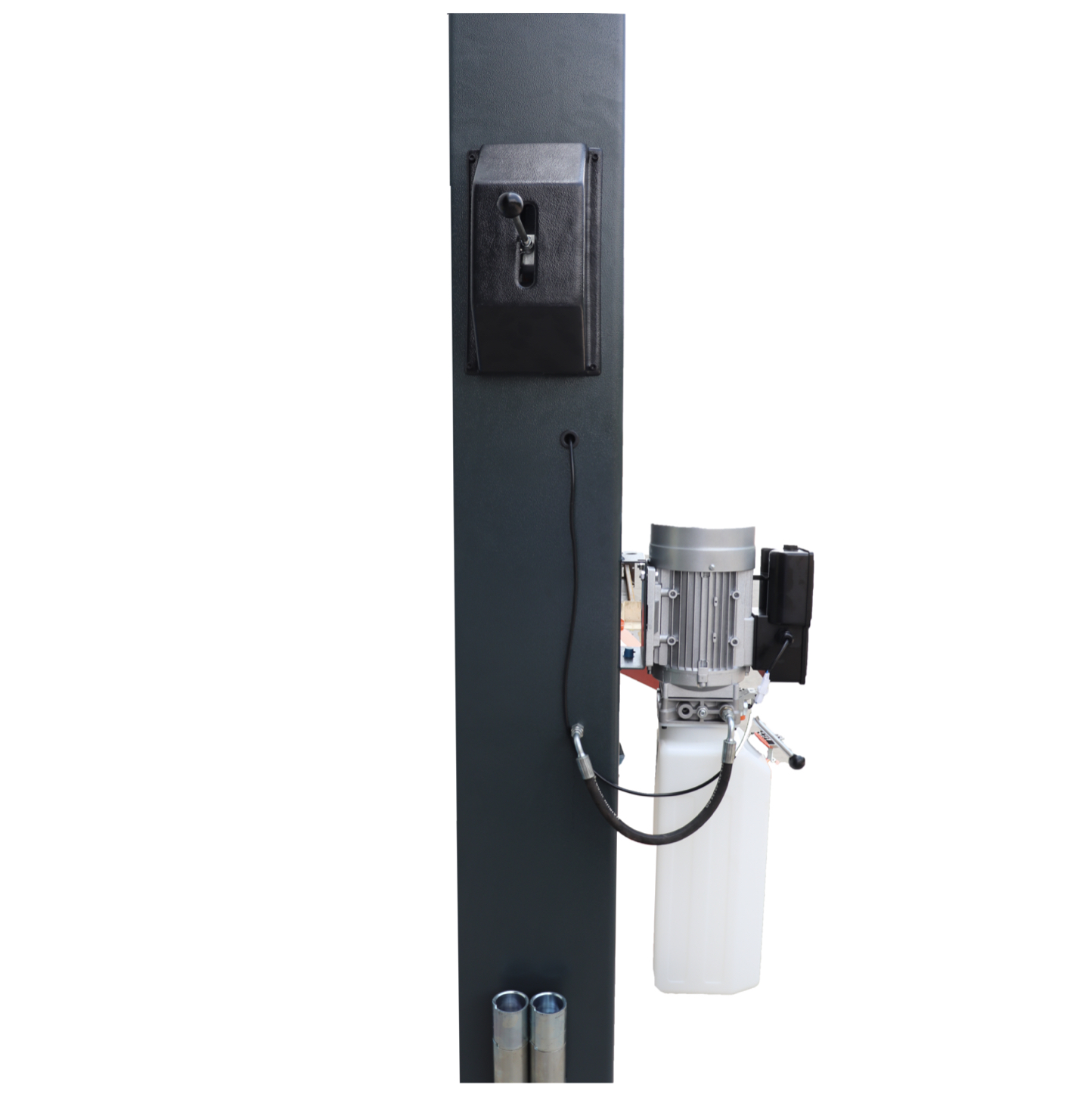

Motor Power: 3 HP
Motor Voltage: 220 V (Recommend 30A Breaker)
Rated Frequency: 60 HZ
Phase: 1 PH
Hydraulic Oil: Recommend AW46/AW32
Column Thickness of Steel: 5MM
Carriage Thickness of Steel: 6MM
Arms Thickness of Steel: 6MM
Cable Diameter: 0.354"
Shipping Weight: 1,455 LBS

Manufacturer Warranty:

5 Years Lifting Structure
3 Years Hydraulic
2 Years Electrical
Note: **Parts only!! Labor costs for someone to install replacement parts are NOT covered. The hydraulic cylinders come with a 30 day full warranty and after 30 days, Stratus will provide a seal kit**

Shipping Surcharge: $425 freight surcharge applied to shipping this item in the following states: OR, WA, ID, MT, ND, SD, ME.

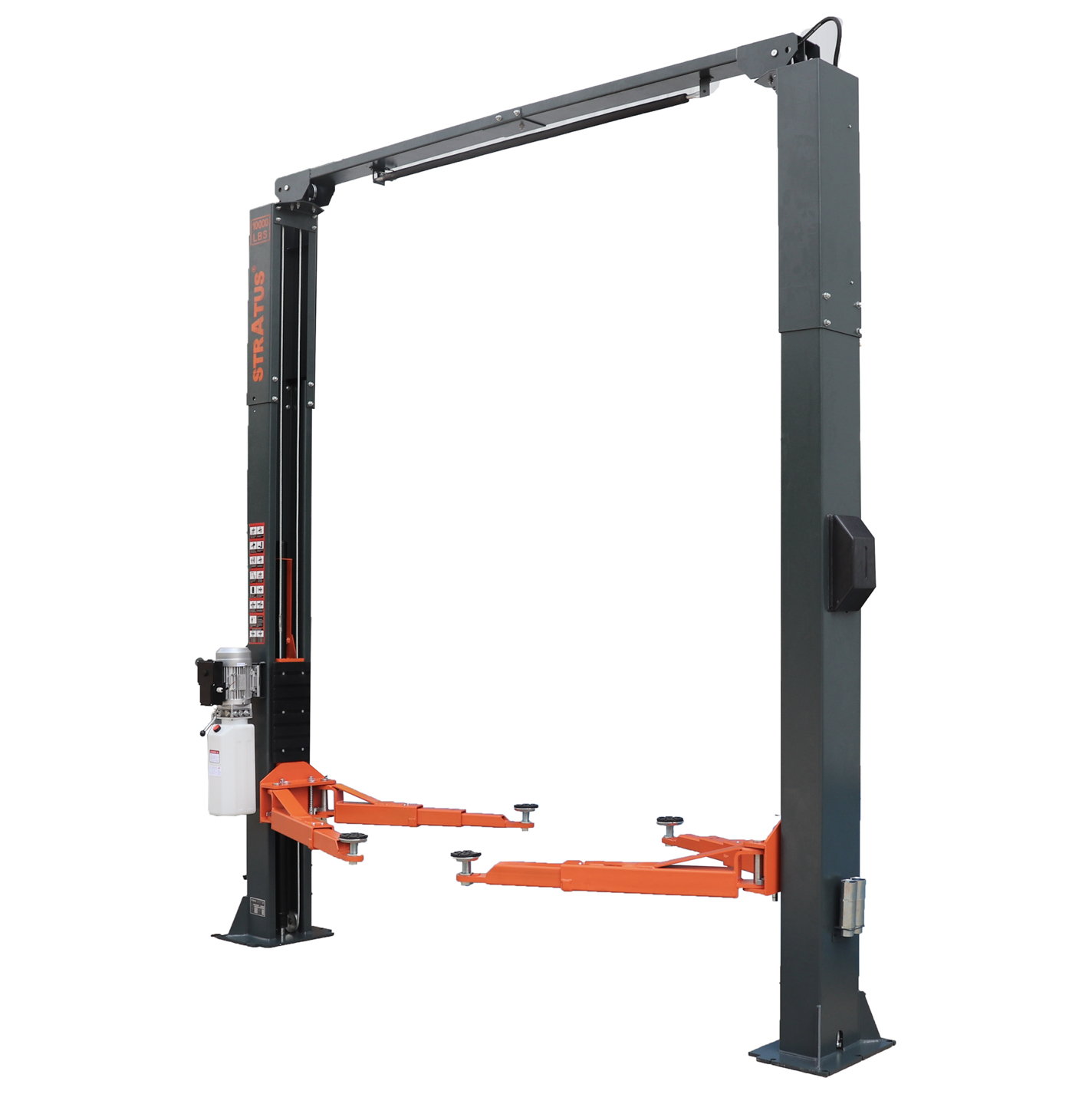

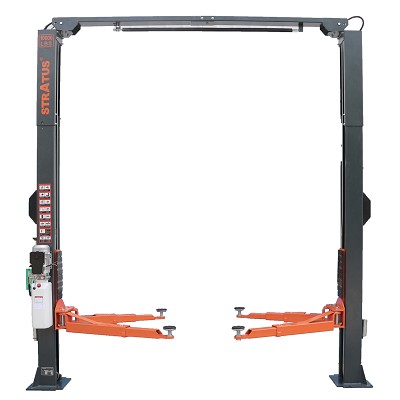

Stratus SAE-C10P - Pro Asymmetric & Symmetric Convertible Clear Floor 10,000 LBS Capacity Two Post Car Lift

Part #: SAE-C10P

Availability: In Stock

Retail Price:$6,000.00

Your Savings:$1,565.00(26%)

Our Price: $4,435.00

Free Shipping
