Product Features & Benefits
WARNING: California’s Proposition 65

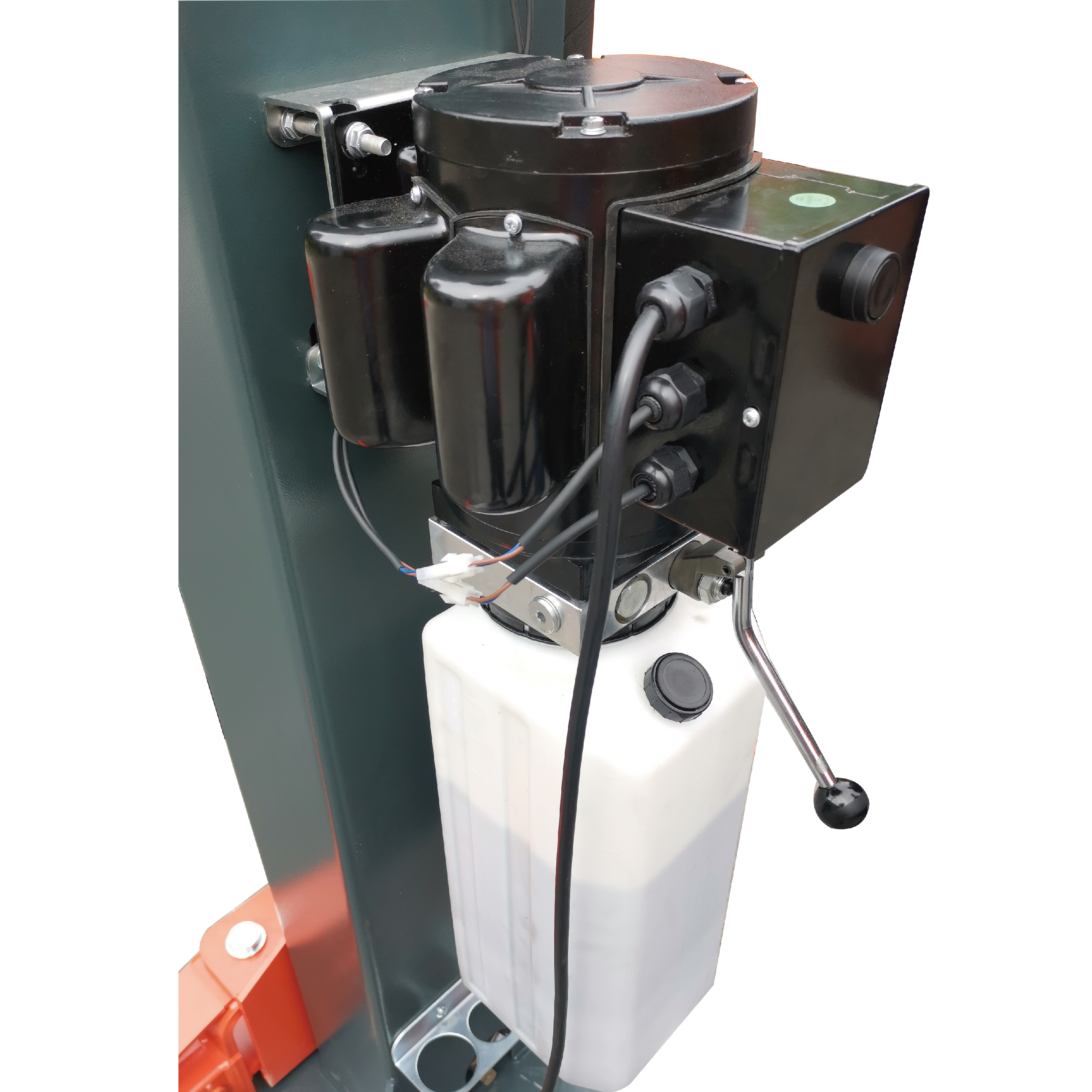

ETL Certified Power Unit

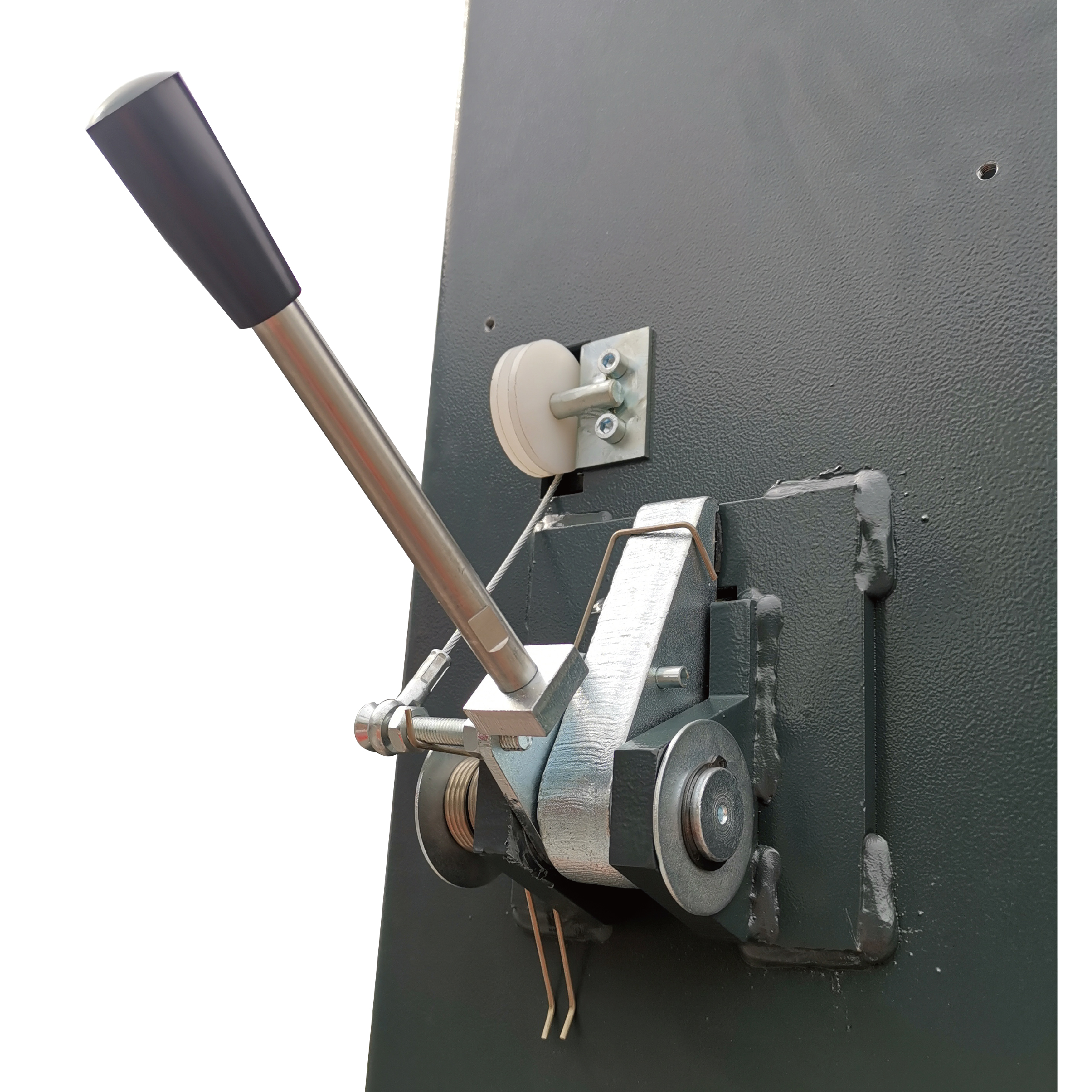

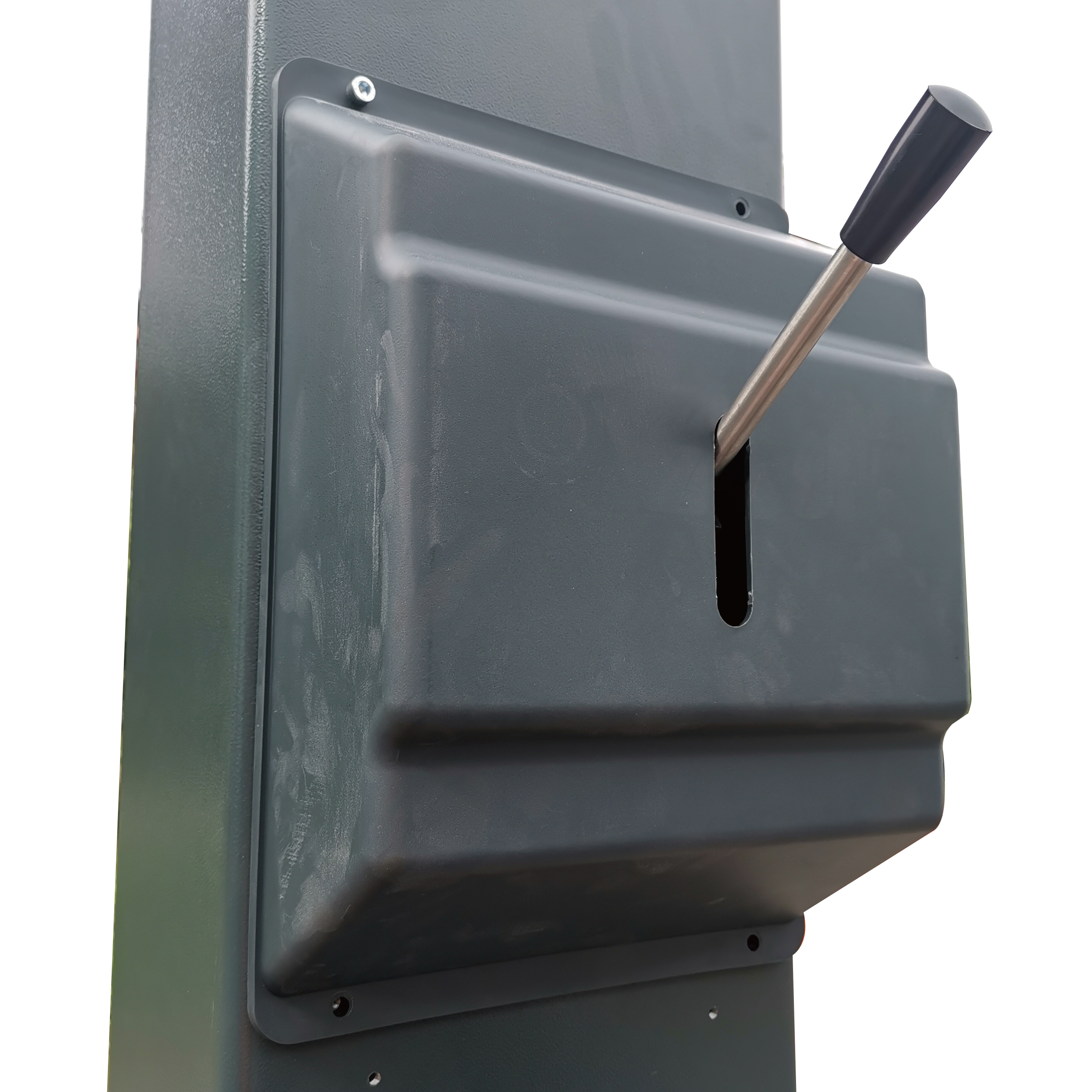

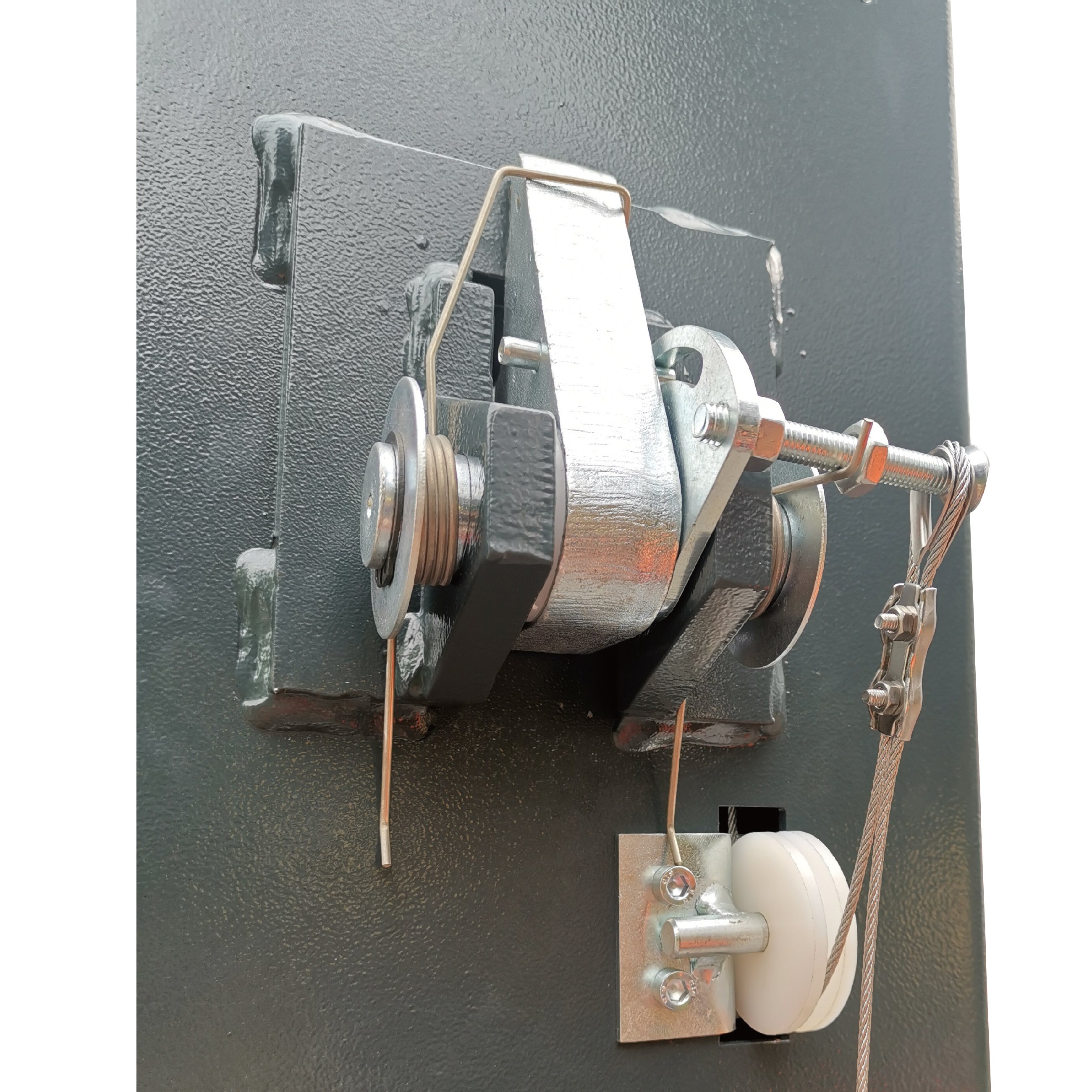

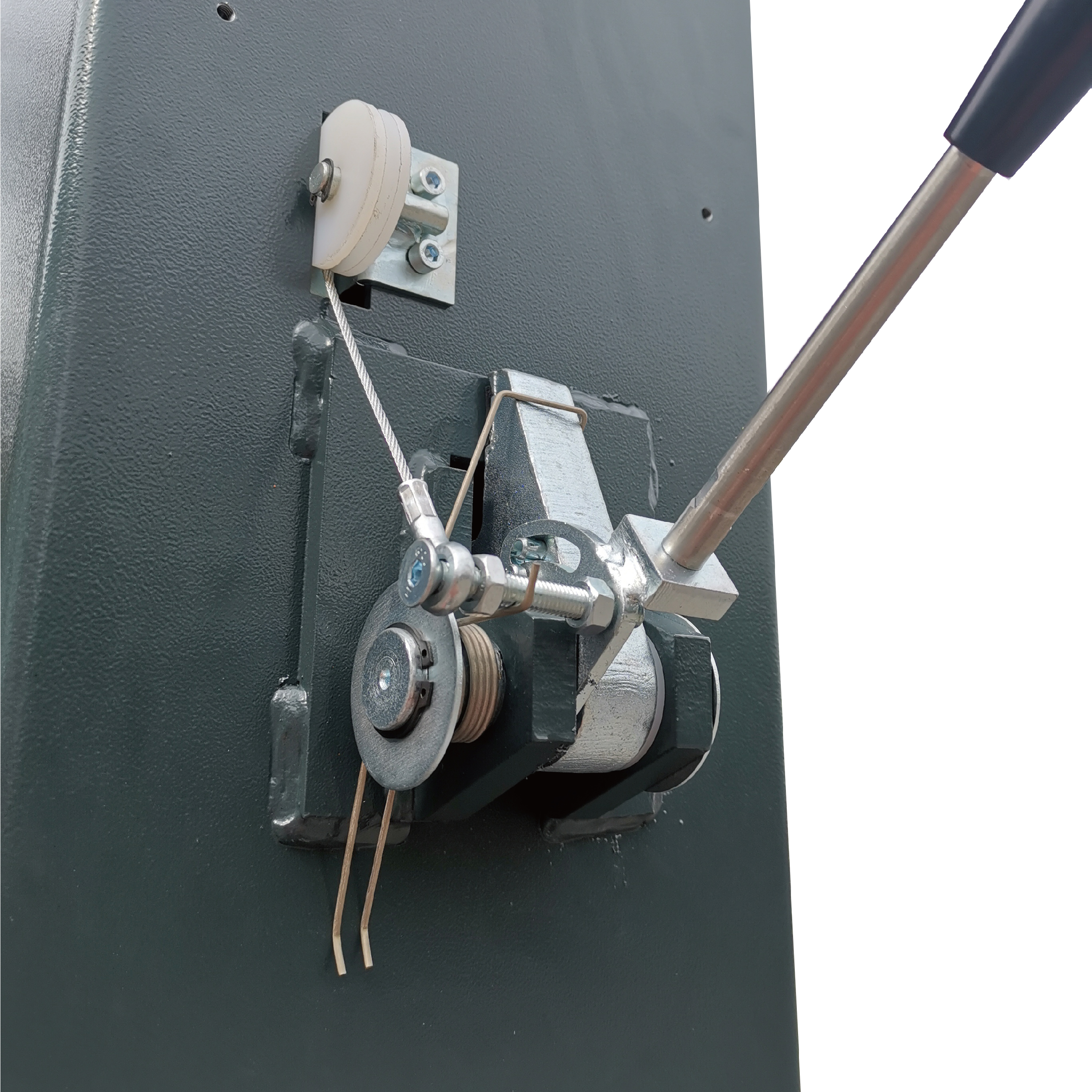

Single point manual release
Direct Drive

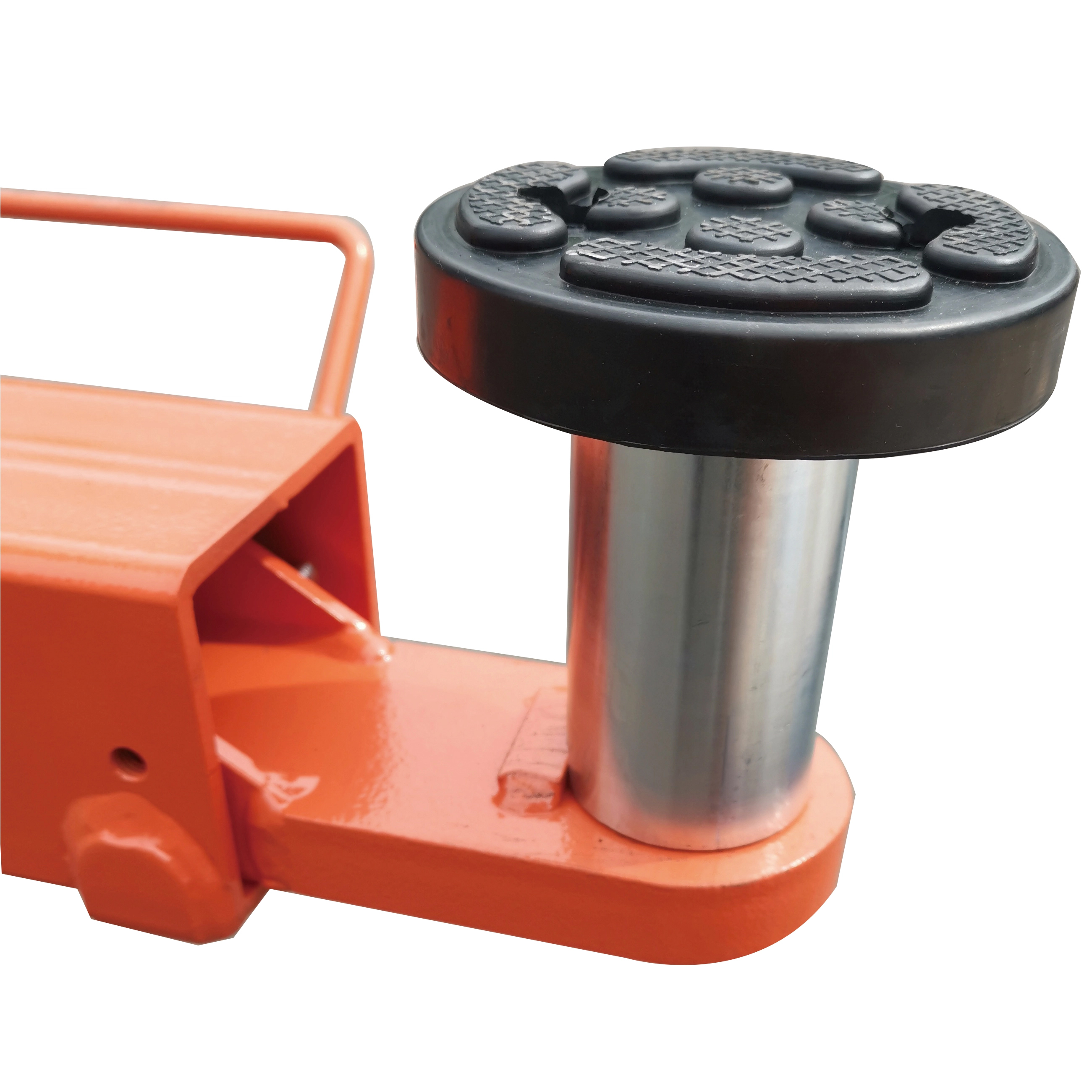

4 Screw-up rubber pads
4 of 4" truck adapters included.

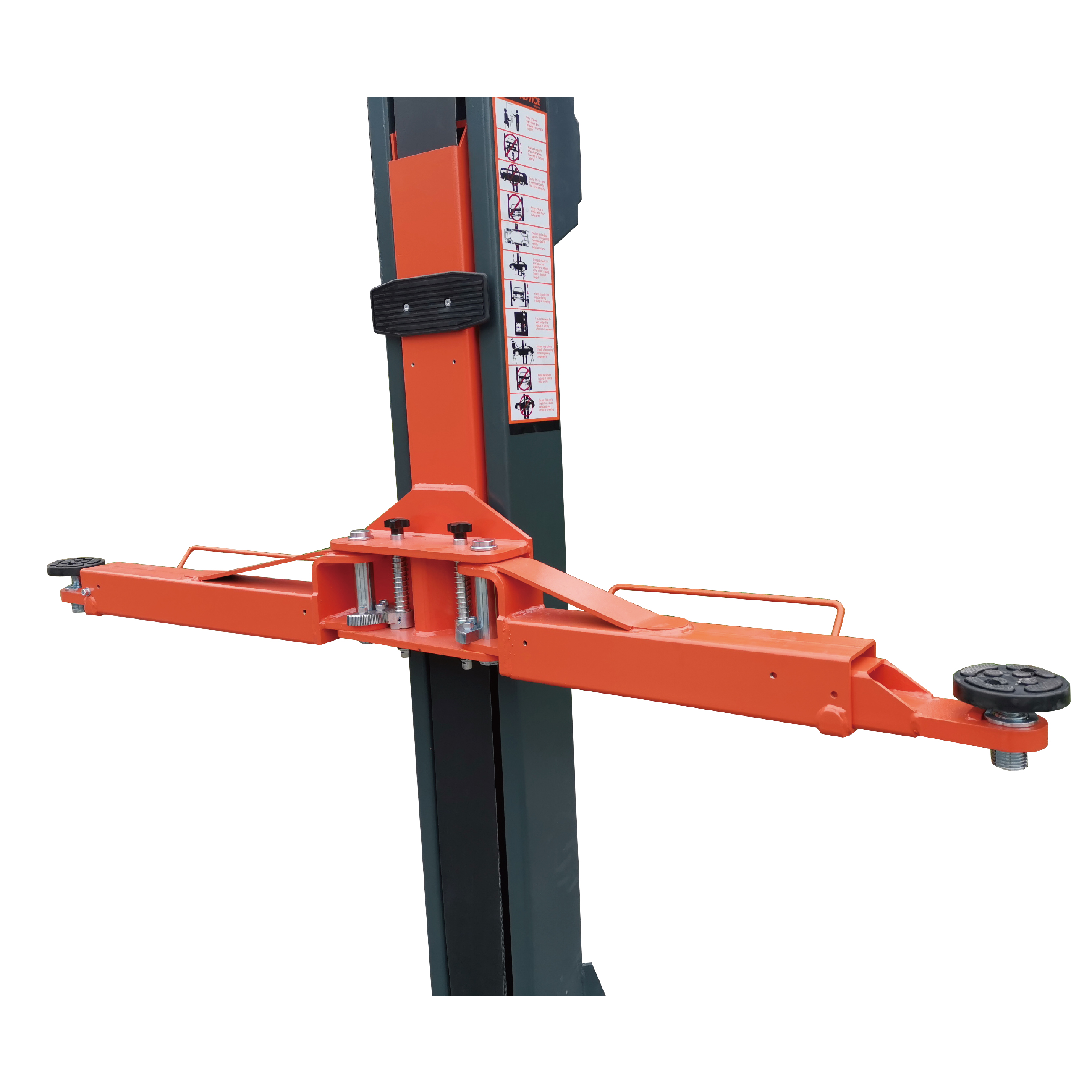

4 of 2-stage arms

rear long arm: 35 1/16" - 54 11/16"
front short arm: 29 3/16" - 45 1/4"

2 top limiter switches
Anti-surge valves

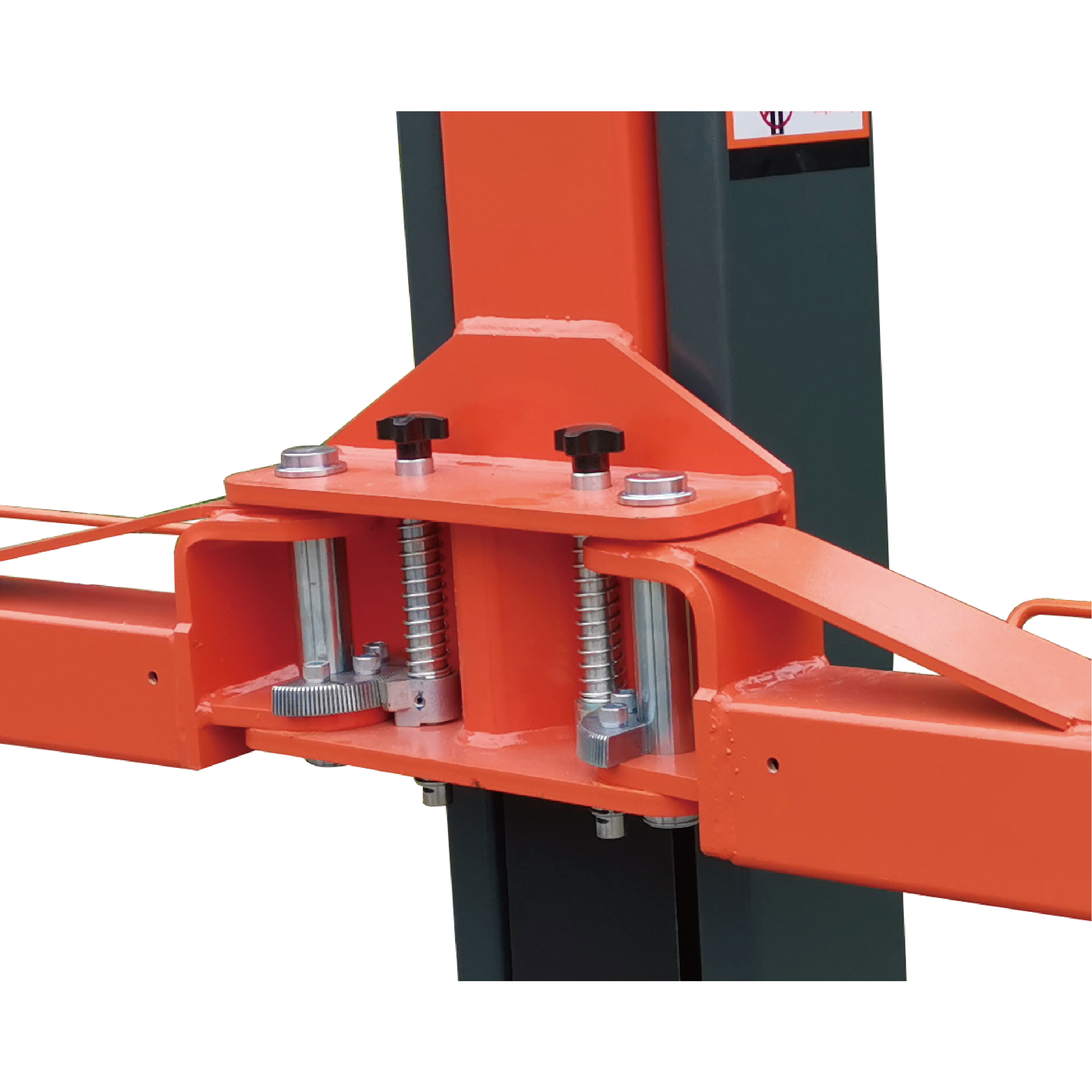

Automatic arms restraints
Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)

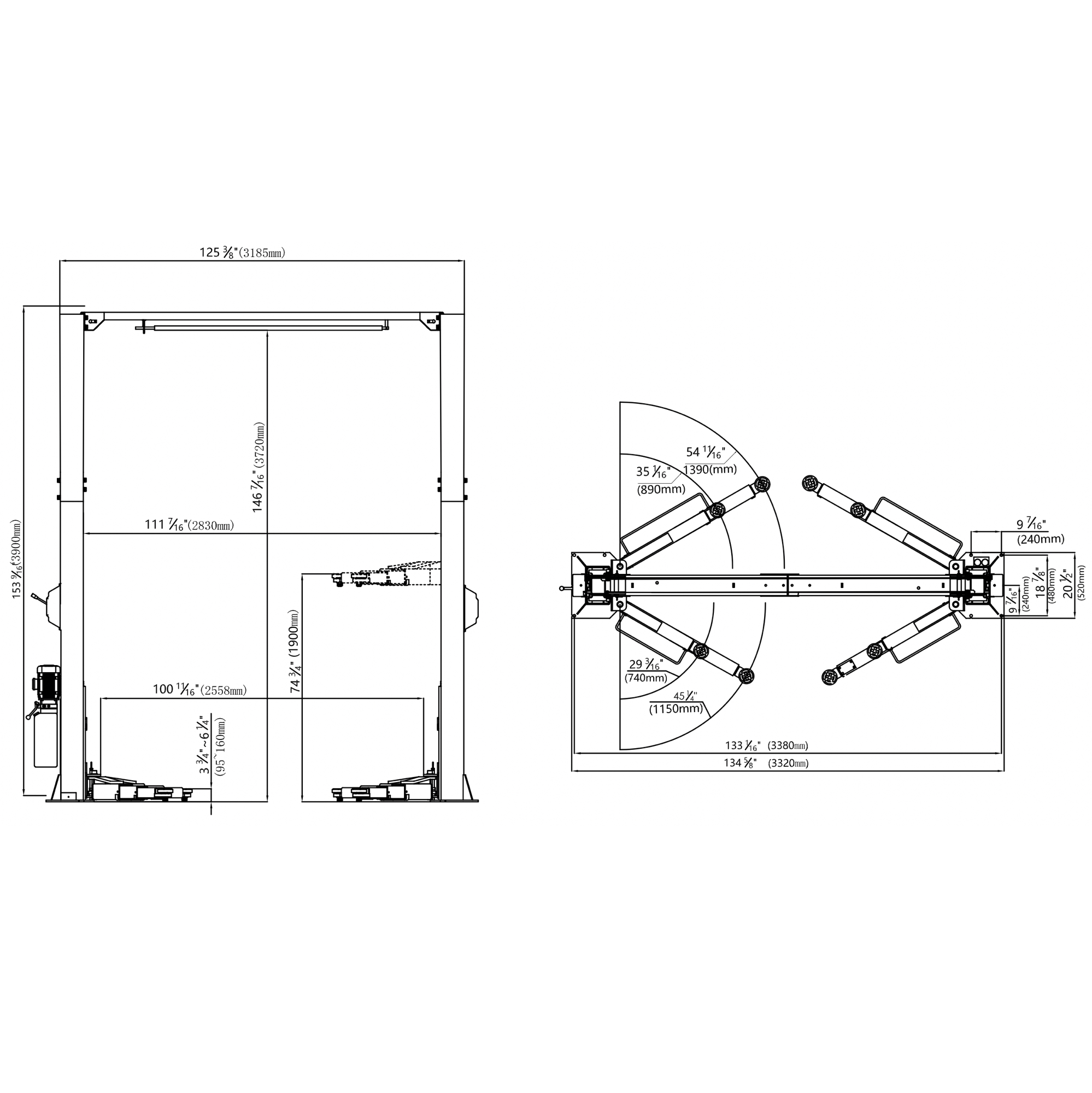

Stratus SAE-C9P 2-Post Lift Specifications:

Lifting Capacity: 9,000 LBS
Overall Height: 153 9/16"
Overall Width: 134 5/8"
Width Inside Column: 111 7/16"
Max Lifting Height: 74 3/4" without truck adaptor
Min Height: 3 3/4" - 6 1/4"
Drive Through: 100 1/16"
Lifting Time: About 50 SEC
Lowering Time: About 40 SEC
Motor Power: 3 HP
Motor Voltage: 220 V (Recommend 30A Breaker)
Rated Frequency: 60 HZ
Phase: 1 PH
Hydraulic Oil: Recommend AW46/AW32
Column Thickness of Steel: 4mm
Carriage Thickness of Steel: 6mm
Arms Thickness of Steel: 6mm
Cable Diameter: 0.366" (9.3mm)
Shipping Weight: 1,433 LBS
Shipping Size: 113 "L * 23"W * 41"H

Manufacturer Warranty:

5 Years Lifting Structure
3 Years Hydraulic
2 Years Electrical
Note: **Parts only!! Labor costs for someone to install replacement parts are NOT covered. The hydraulic cylinders come with a 30 day full warranty and after 30 days, Stratus will provide a seal kit**

Shipping Surcharge: $425 freight surcharge applied to shipping this item in the following states: OR, WA, ID, MT, ND, SD, ME.

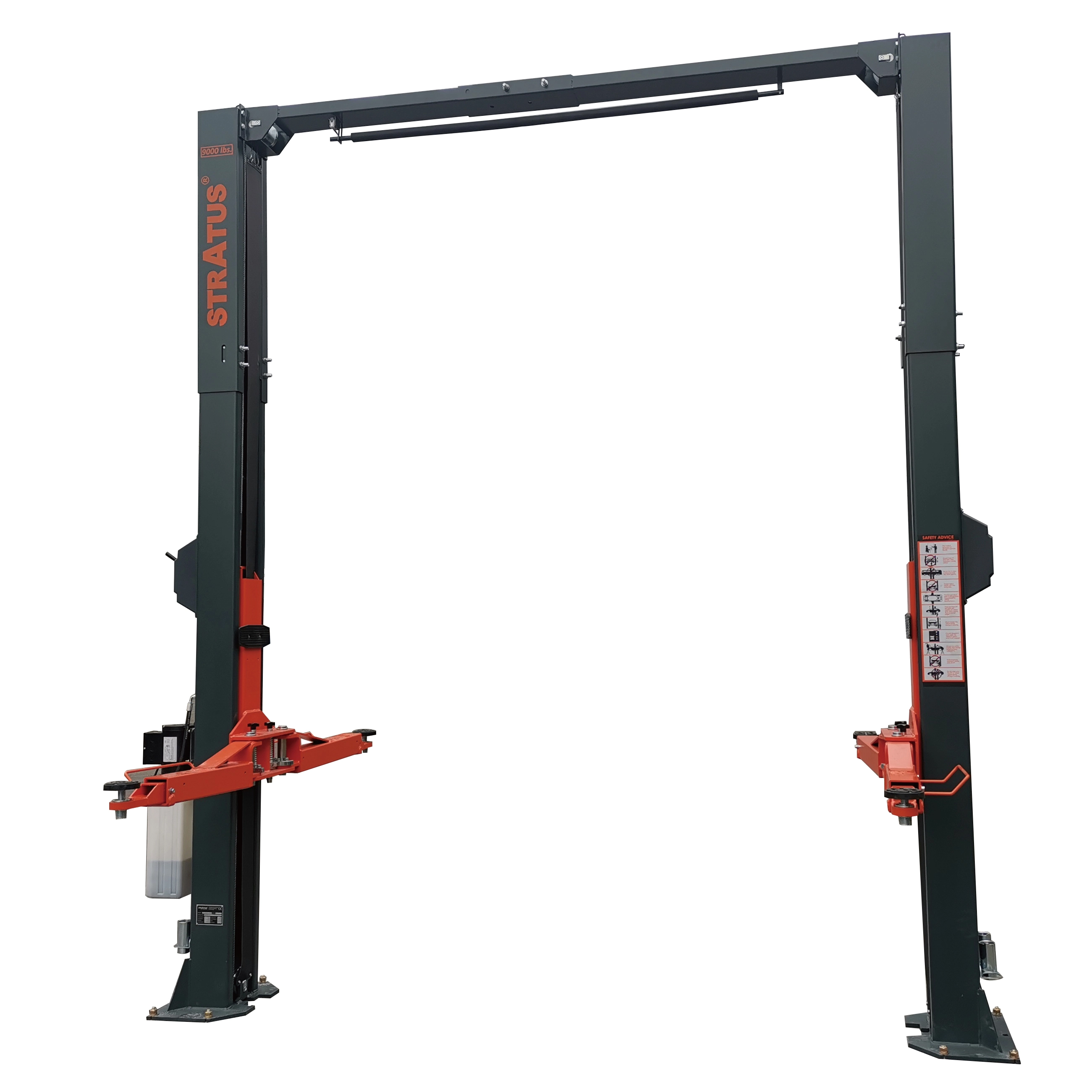

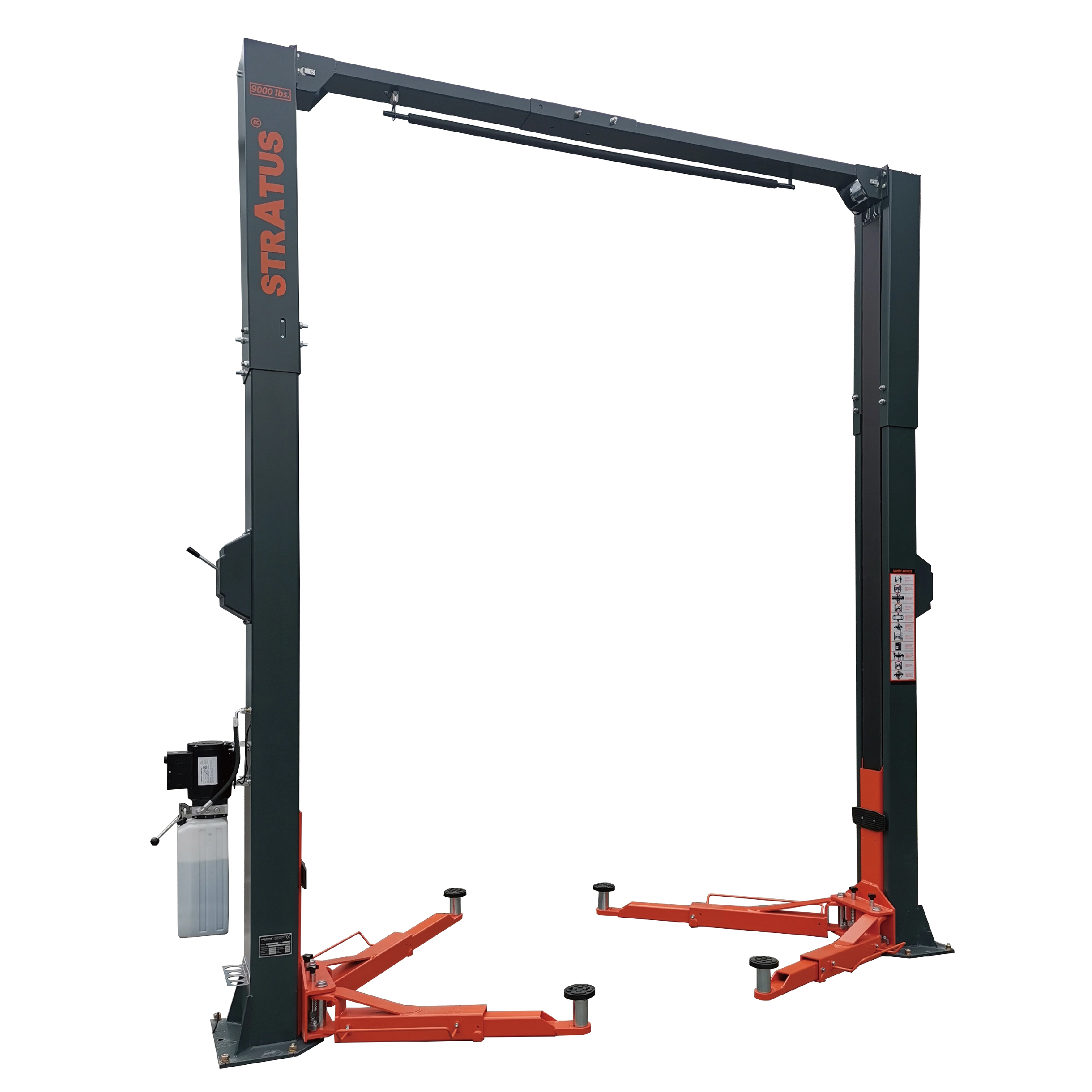

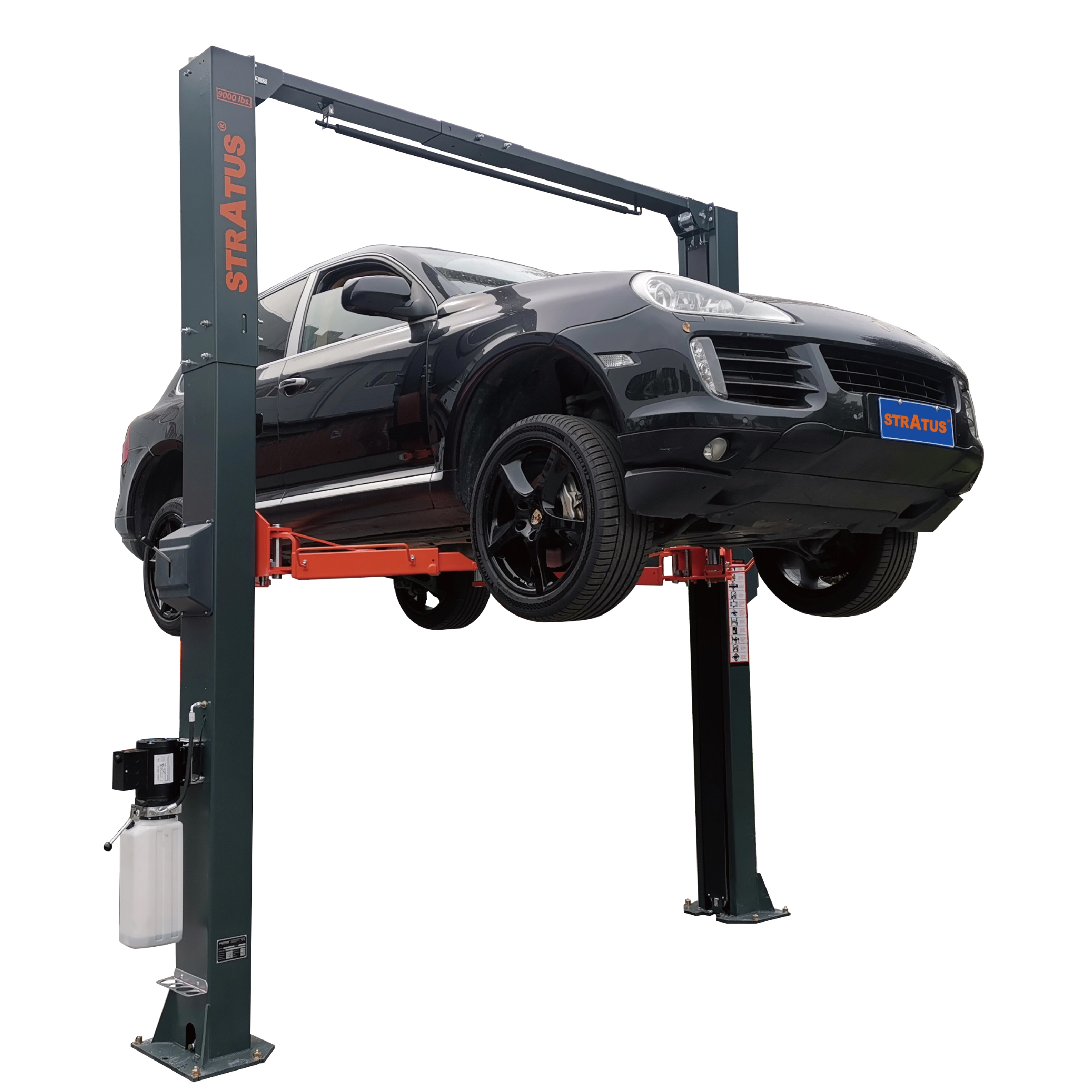

Stratus SAE-C9P - 9,000 LBS Capacity Two Post Overhead Car Lift with Manual Safety Lock Release - 220V

Part #: SAE-C9P

Availability: In Stock

Stratus SAE-C9P - 9,000 LBS Capacity Two Post Overhead Lift with Manual Safety Lock Release - 220V

Retail Price:$5,000.00

Your Savings:$1,401.00(28%)

Our Price: $3,599.00

Free Shipping
