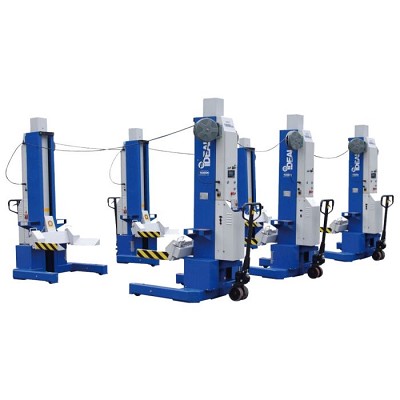

Need serious lifting power without giving up floor space? The iDEAL MSC-18K-X-6108 Mobile Single Column Lift System delivers massive capability with a 108,000-lb total capacity across six ALI-Certified columns built for heavy trucks, buses, and fleet vehicles. Advanced PLC and optical encoder technology keeps every column lifting smoothly in perfect sync, giving you confident, level raises every time. When the job’s done, the columns roll away and store neatly out of the way, maximizing your shop space. Powerful, precise, and incredibly flexible, the ideal MSC-18K-X-6108 turns your shop into a heavy-duty lifting powerhouse—only when you need it.

18,000 lb lifting capacity per column. 6 Columns total capacity 108,000 lbs
24VDC Battery Operation with Onboard Charging System Batteries are NOT Included
Communication Cable with Retractable Cable Reels
U-Shape Wiring Configuration for quick vehicle entry & exiting
Convenient Operation from any Column
Independent Mechanical Locking System
PLC & Optical Encoder provides continuous synchronization for Columns
Easily positioned with Pallet Jack type device with Poly Caster Wheels
Adjustable Lifting Forks for the widest range of Wheel Diameters
Emergency Switch per each Column, provides the highest safety assurance
Easy to use Master Control Panel for Individual or Paired Synchronized Operation
LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
Conveniently stored out of the way when not in use to maximize work space
New! LED Light with Magnetic Base!!
One Year Manufacturer Warranty on Parts.
Five Years Manufacturer Warranty on Lifting Structure.

The iDeal MSC-18K-X is available in sets of two, four and six columns to provide up to 108,000lbs. of lifting capacity. The MSC-18K-X is designed to lift fire trucks, school buses and other large commercial vehicles by the wheels. Optional accessories provide the flexibility to lift pickup trucks and wheels free lifting for expanded service. Technicians realize improved productivity through safe, simple operation of the lift at each column using the well-designed control panel. The mobile design and quick set up of the MSC-18K-X allows technicians to easily transform a flat bay to a lift bay for improved use of shop space. The small foot print of the MSC-18K-X allows for storage without impacting valuable shop space.

Specifications:

Column Configurations: 6 Column
Capacity: 108,000 lbs.
Charging Voltage: 100-140VAC, 60HX, Single Phase
Lifting Height: 67.1"
Column Heights – Min/Max: Min. 88.6" / Max 155.5"
Column Width: 44.1"
Fork Adjustable Range: 12.6" – 22"
Fork Length: 17.9"
Fork to Column Clearance: 10"
Rise Time: 100 Seconds
Max Distance between Columns: 32.8'
Min. Concrete Surface Strength: 3,000PSI
Set-Up / Operation: Indoors
Battery Type (Recommended): 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 – Not Included

View iDEAL MSC-18K-X-6108 Mobile Single Column Lift User Manual

iDEAL MSC-18K-X-6108 - Set of 6 "ALI Certified" Mobile Single Column Lifts (18,000 lbs Capacity Each)

Part #: MSC-18K-X-6108

Availability: In Stock
