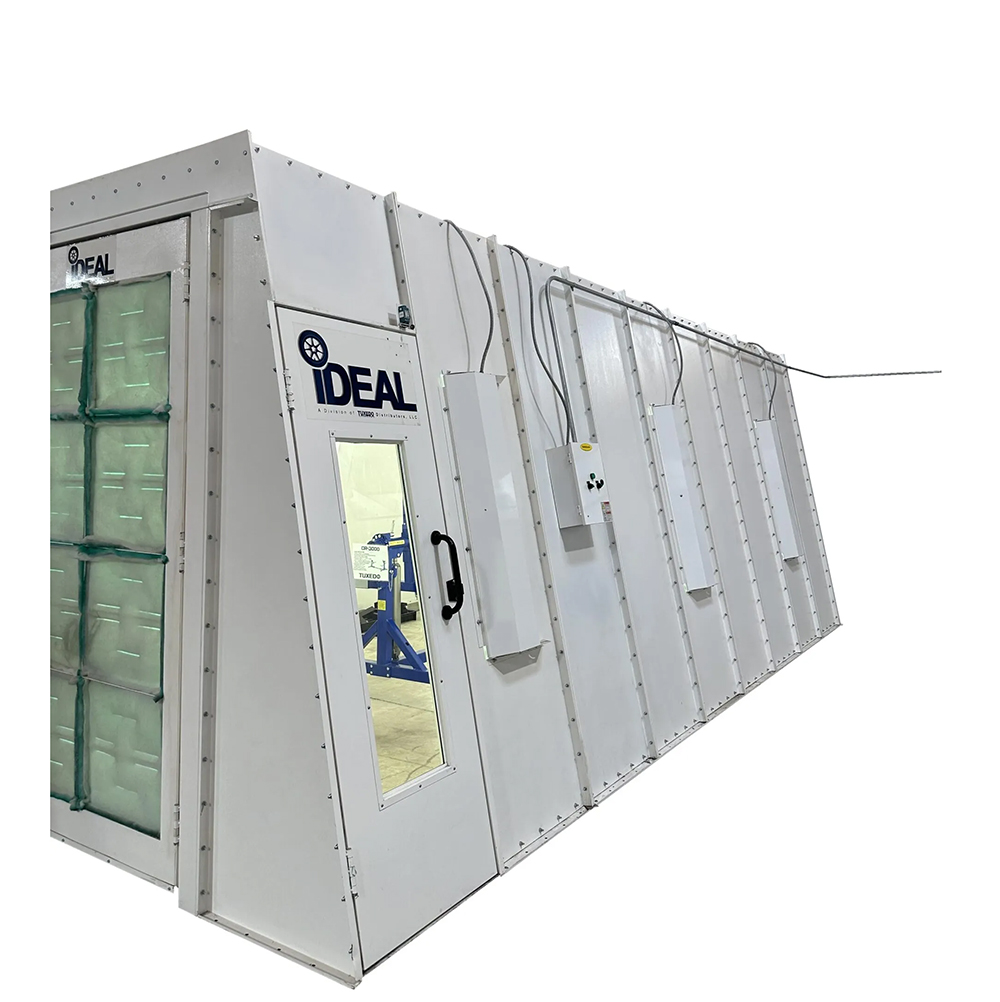

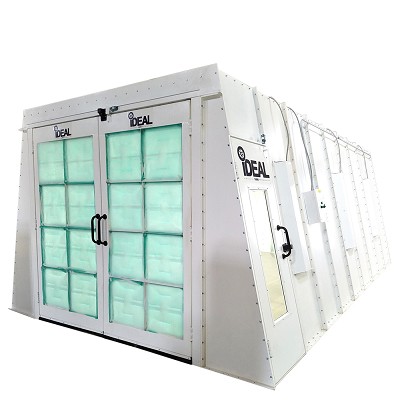

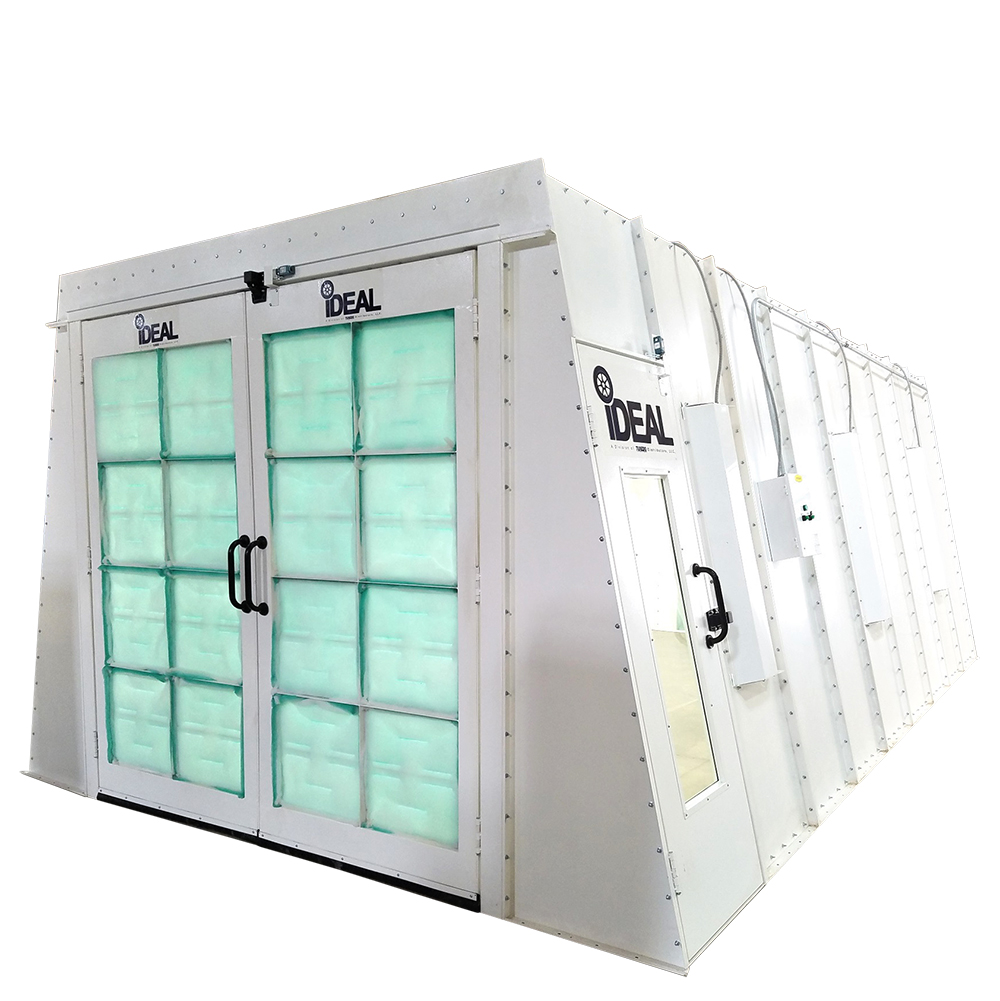

iDEAL PSB-AFCF23B-AK - Cross Flow Draft Spray Paint Booth-PS

Product Features & Benefits
WARNING: California’s Proposition 65

Looking for clean airflow and professional results without the complexity? The iDEAL PSB-AFCF23B-AK Cross Flow Draft Spray Paint Booth delivers smooth, consistent ventilation in a shop-friendly design built for productivity. The tilt panel layout provides excellent lighting coverage, while the spacious 22'-6" × 13' × 8'-6" interior gives you room to work comfortably on a wide range of projects. With easy 5/16" bolt-and-nut assembly, a deluxe control panel, and a bright white powder-coat finish inside and out, this booth keeps visibility high and installs hassle-free. Clean airflow, smart design, and professional-grade performance—this booth is ready to help your work shine.

Typically ships within 48 hours!

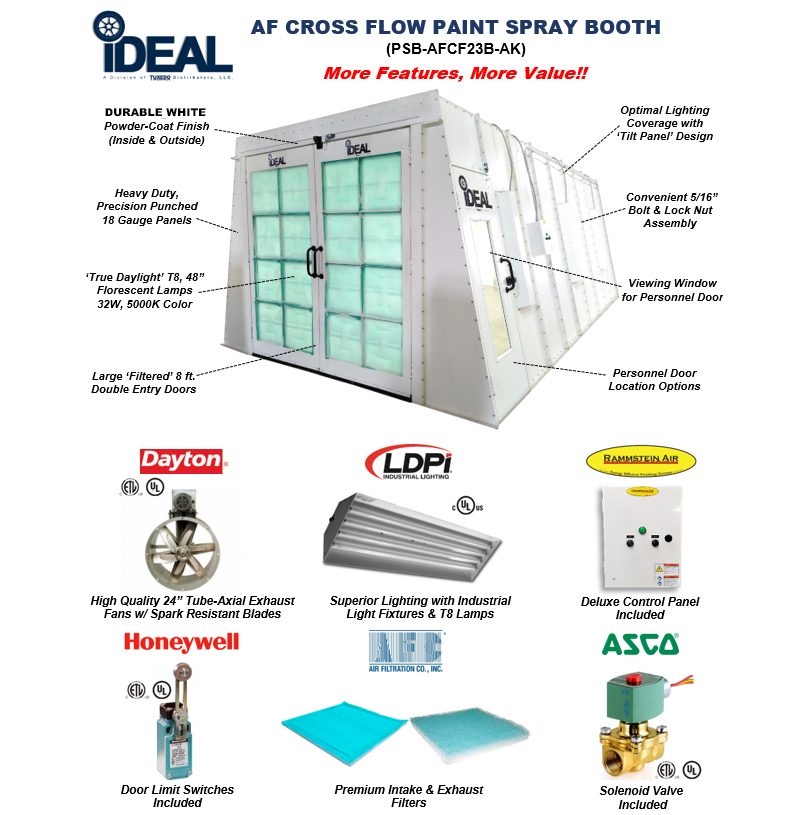

Heavy duty precision punched 18 Gauge panel construction

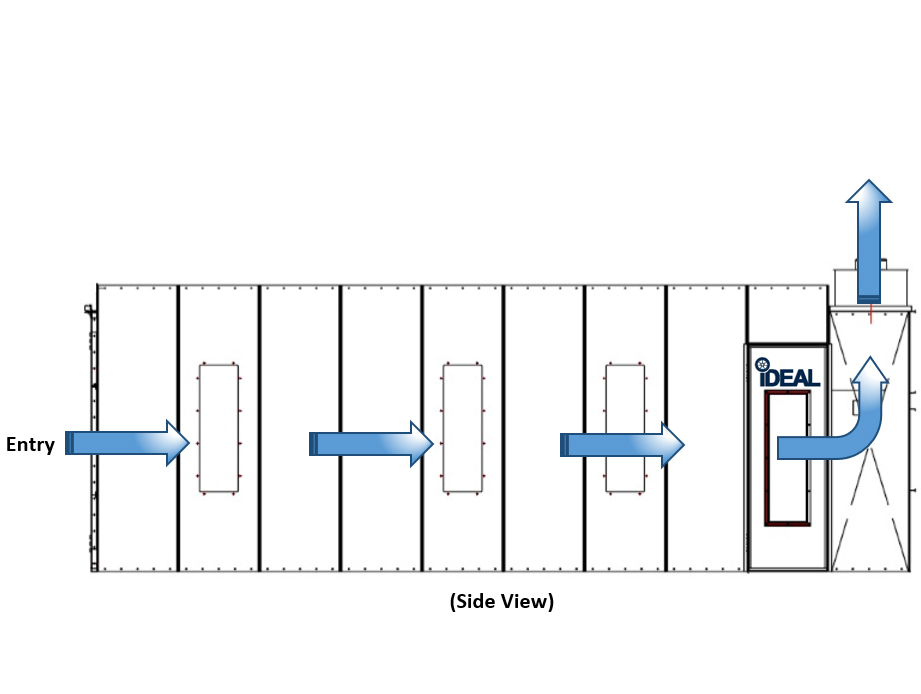

Optimal ‘cross draft’ air flow w/ CFM 9,500 @ .5 static pressure
Tilt panel design for optimal lighting coverage

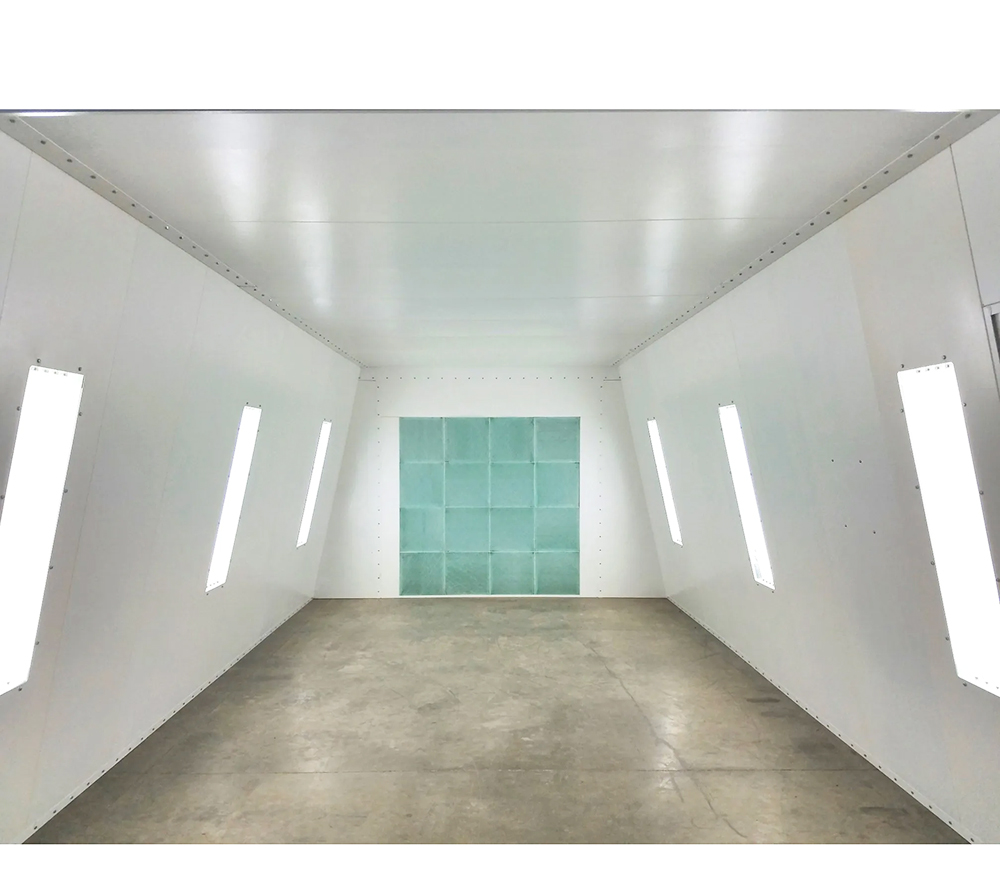

Inside Dimensions: 22'-6" L X 13' W X 8'-6" H

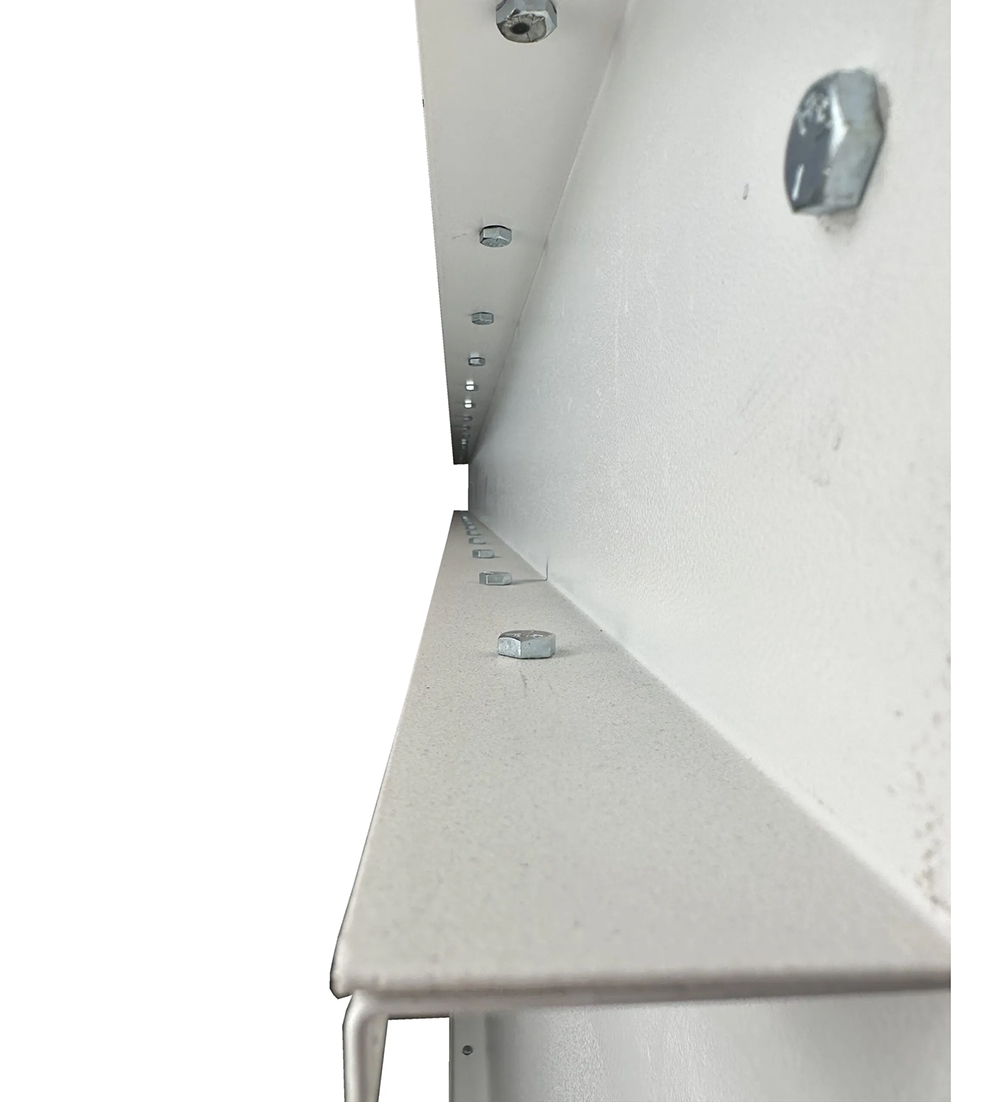

Convenient 5/16” bolt & nut assembly

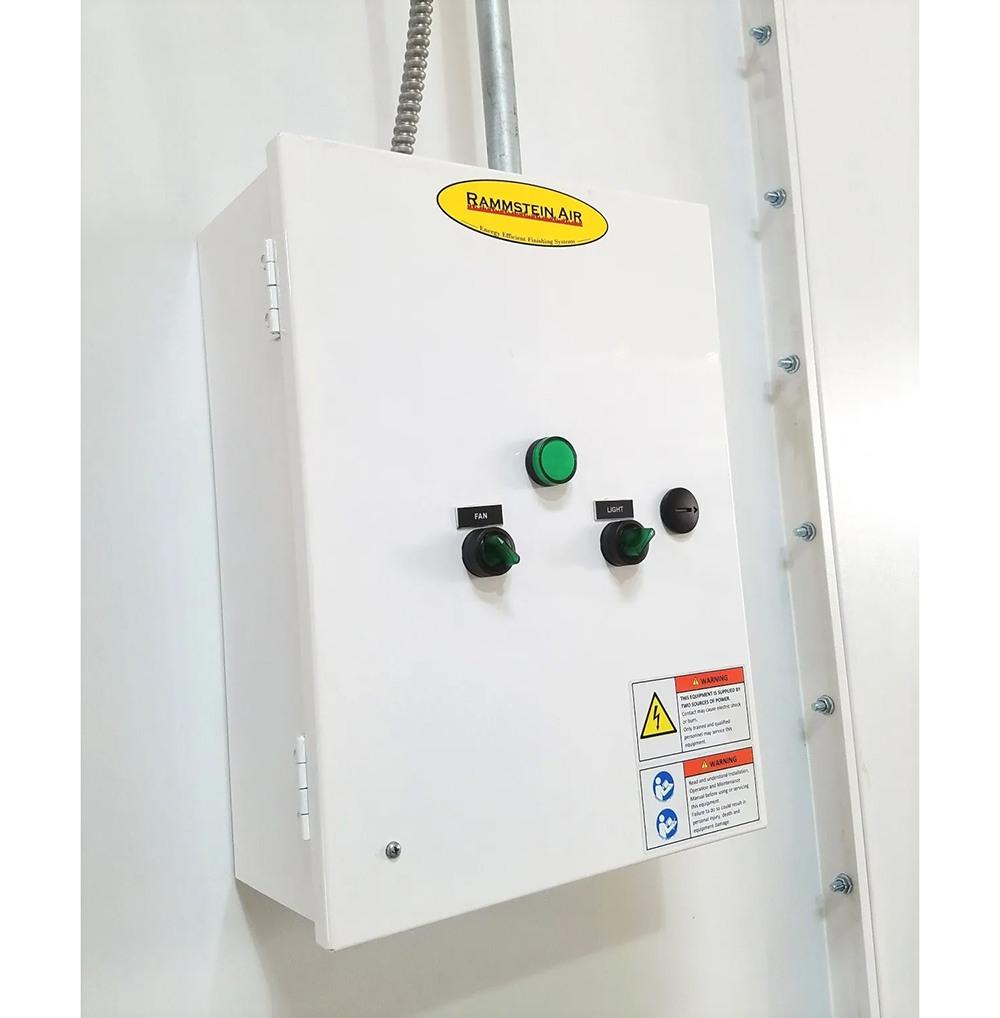

Deluxe Control Panel included
Bright White Powder Coat panel Finish – (inside & outside)
Manometer, Solenoid Valve, Hardware & Sealant Included
UL Listed Dayton 24” tube-axial exhaust fan w/ spark resistant fan blades
NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
Premium AFC intake & exhaust filters

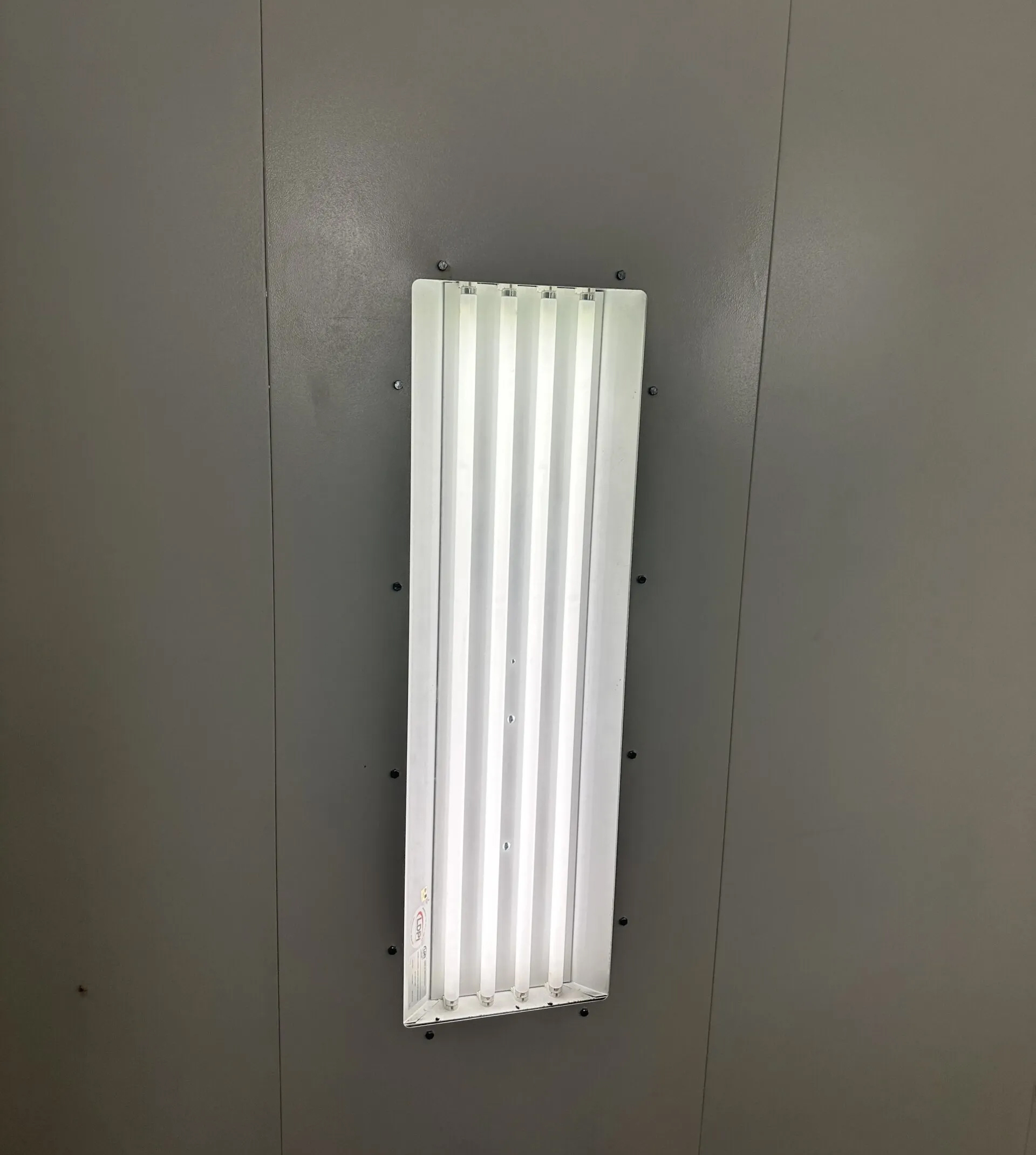

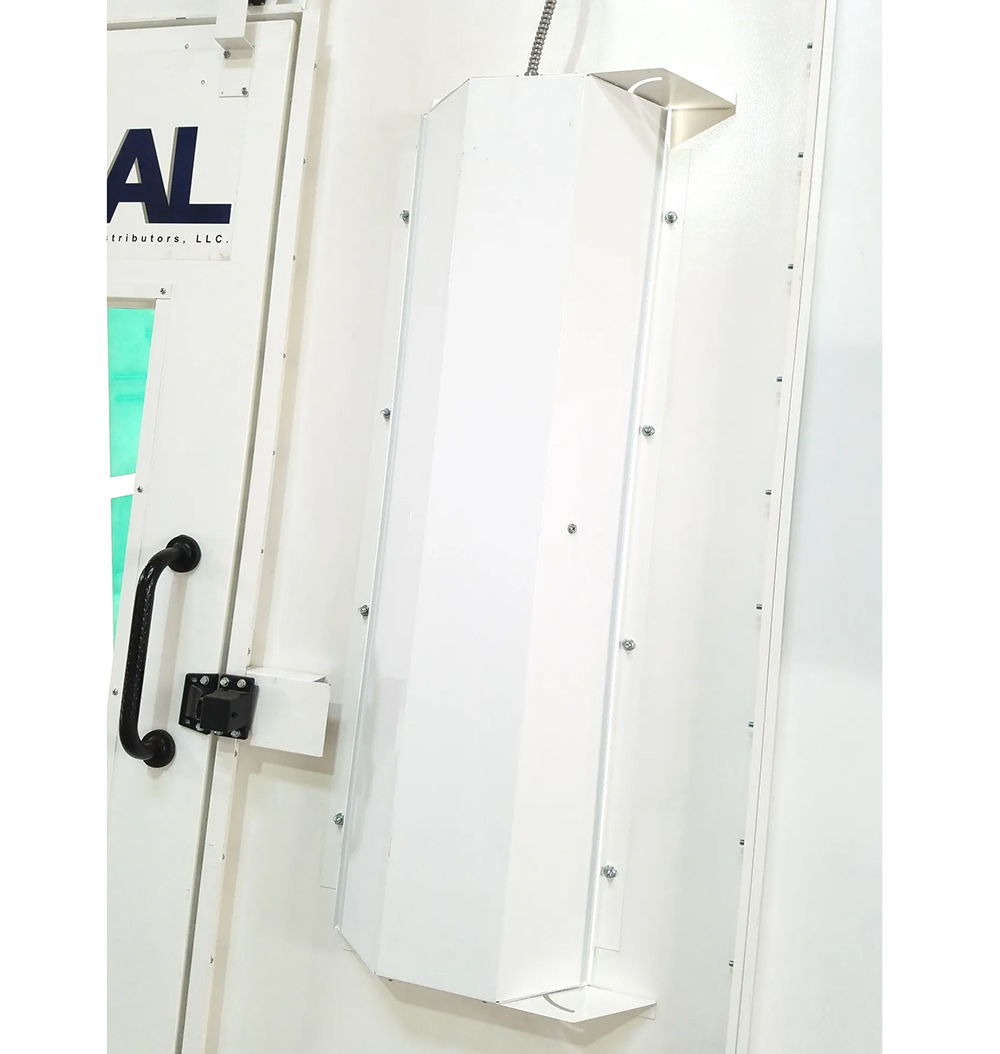

(6ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
(24ea) GE T8 Florescent Lamps – 32W, 5000K 4' length

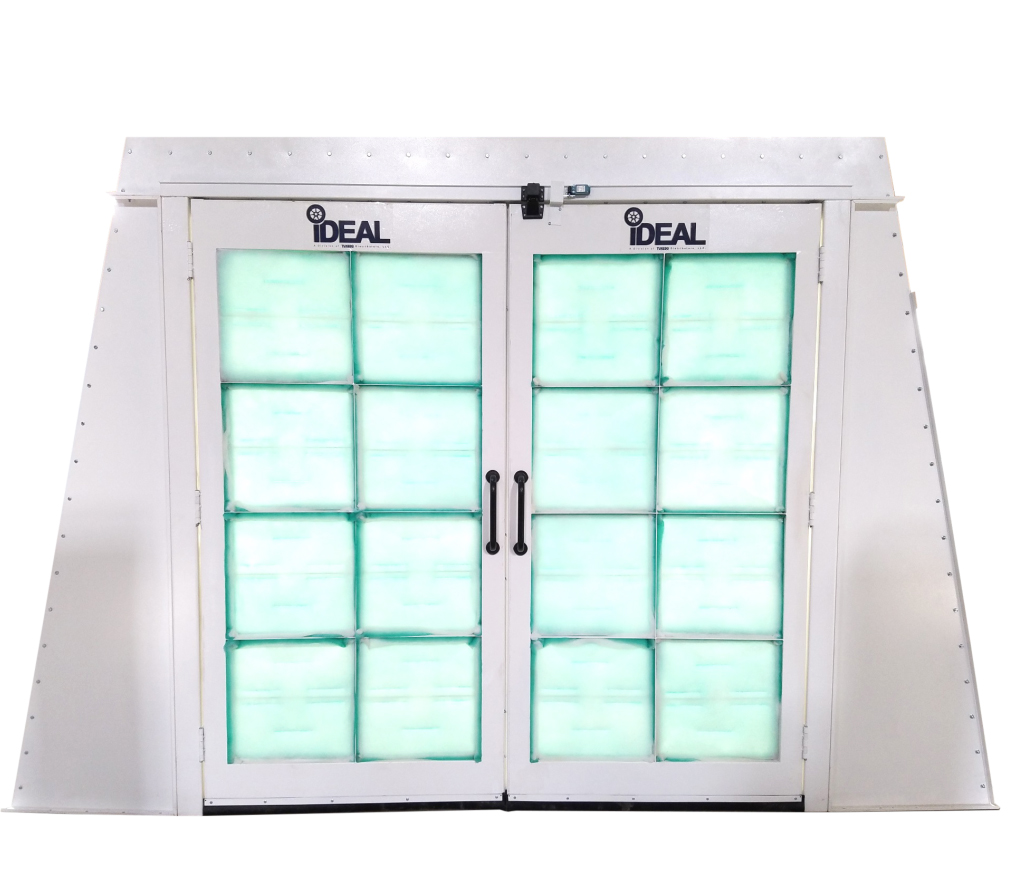

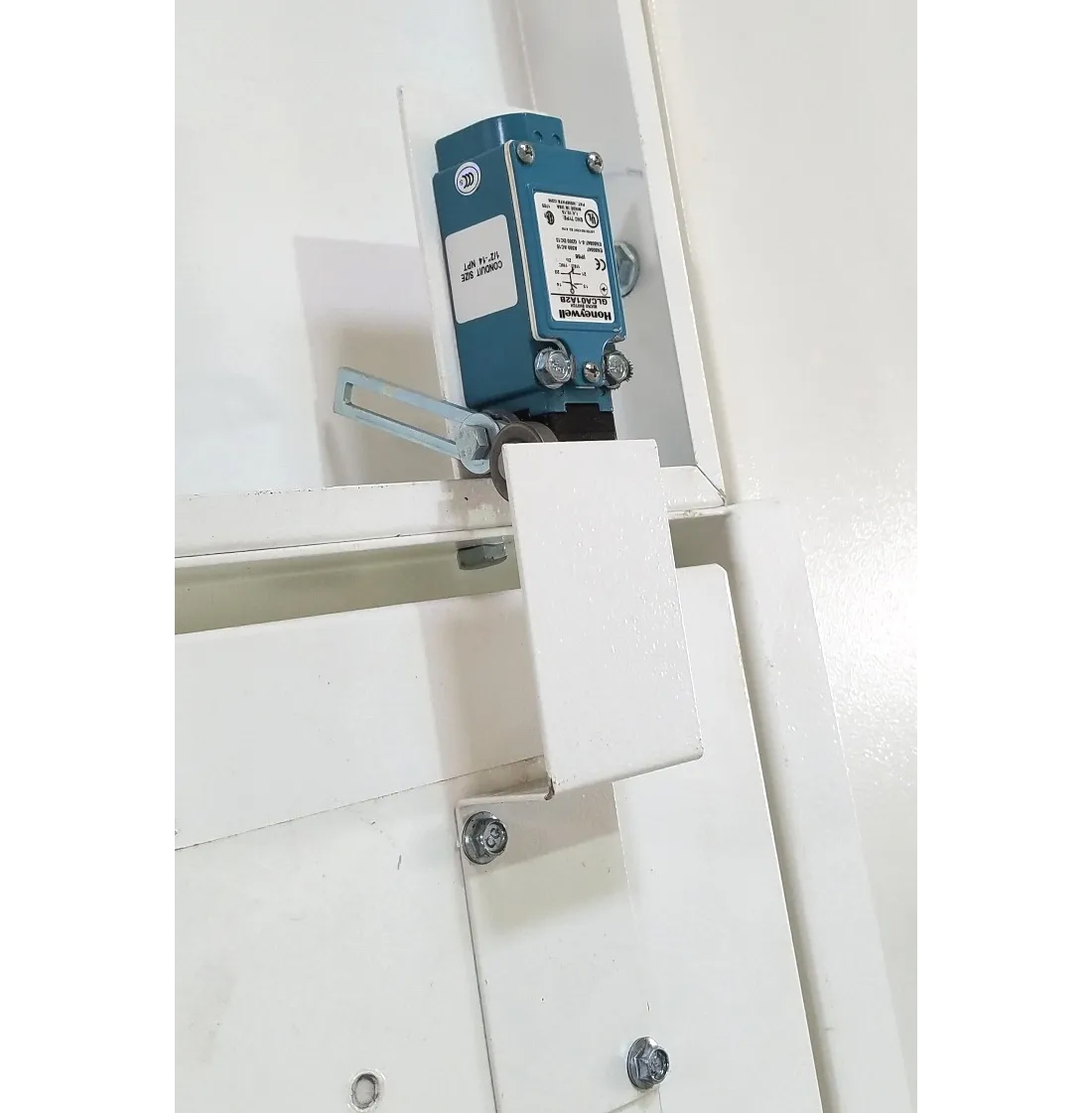

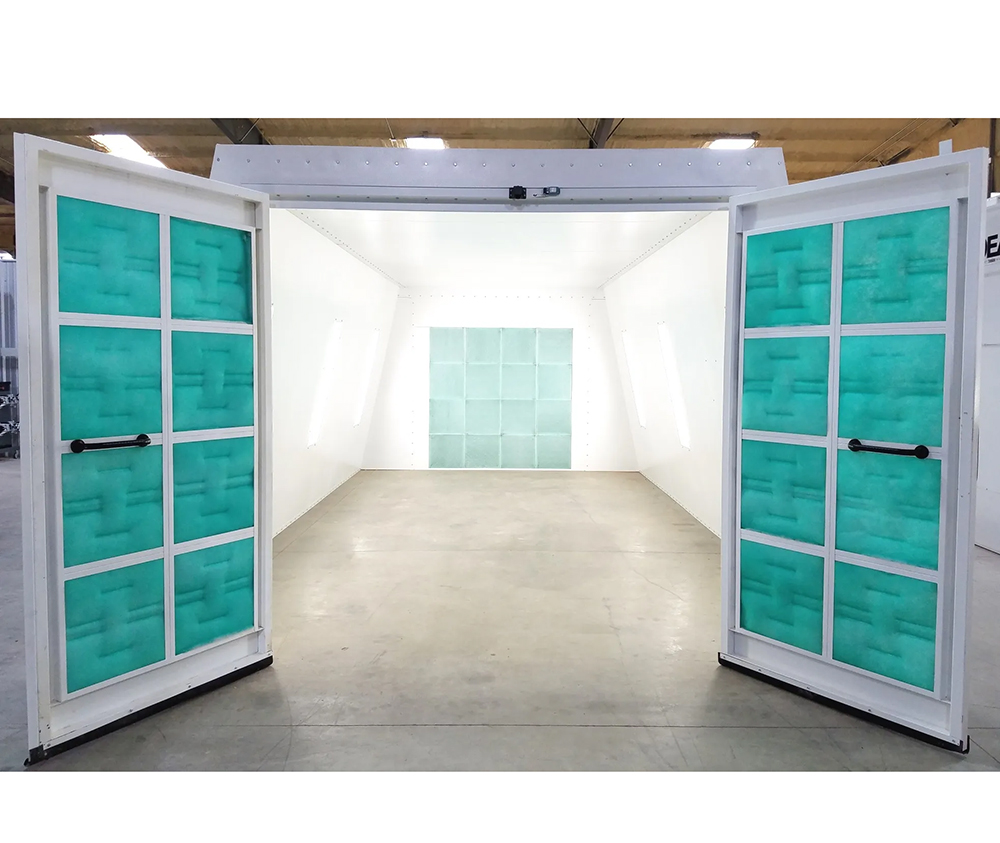

Double Entry Doors w/ shutoff switches

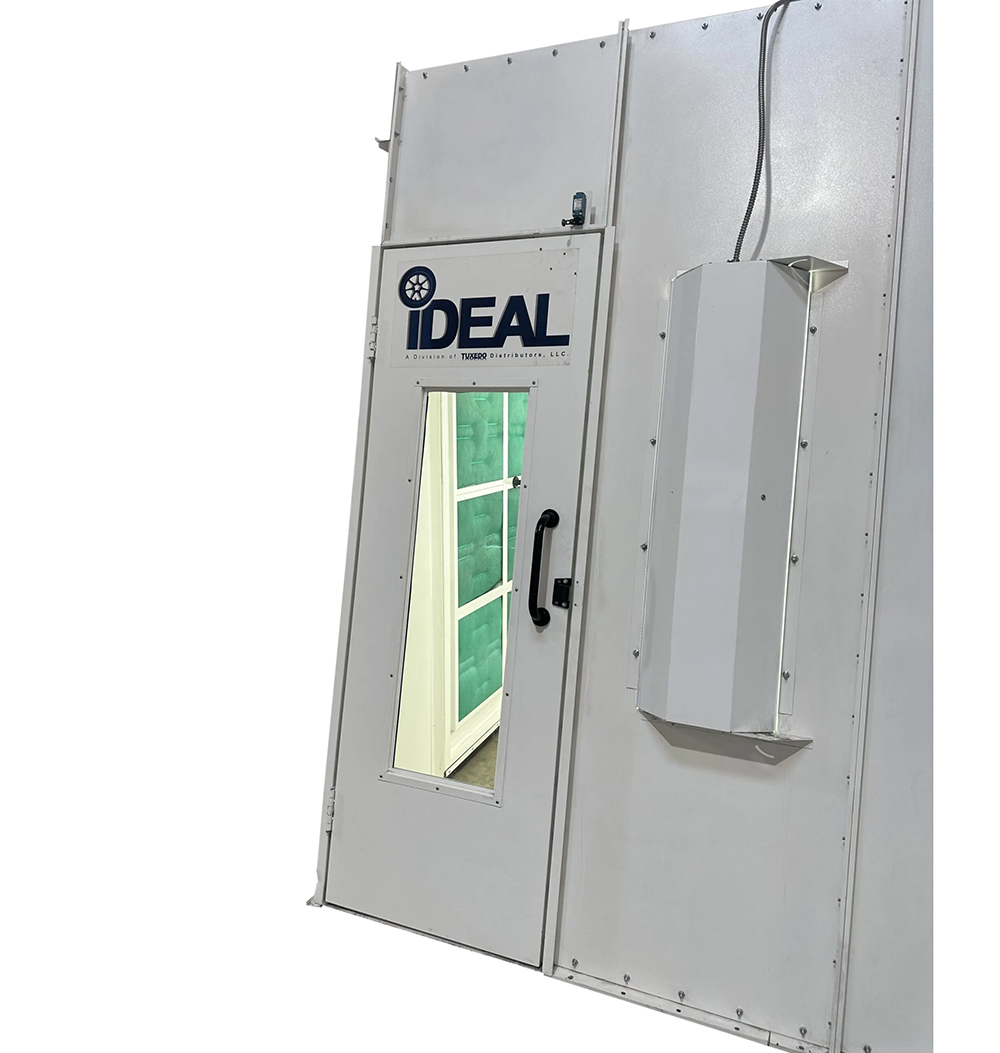

Personnel Door w/ viewing window & shutoff switch
Meets NFPA 33 standards

Think your current paint booth is state-of-the-art? Well, prepare to have your mind blown by the PSB-AFCF23B-AK Paint Spray Booth. This bad boy boasts a cavernous 22'6" x 13' x 8'6" interior that'll make your old booth look like a matchbox. And let's talk about that 24" tube axial fan – with 9,500 CFM, it creates a 'cross draft' so perfect, your paint might just apply itself.

But wait, there's more! (As if you needed it, right?) This booth is built tougher than your last New Year's resolution, with 18-gauge panels and a white powder finish that'll blind you with its brilliance. NFPA 33 compliant? Check. Premium AFC filters? You bet. Deluxe control panel? It's practically royalty. With optional LED lighting and electric heaters that'll make you sweat, this booth ships faster than your lunch break - typically within 48 hours. It's so efficient, you might actually finish your projects on time for once.

iDEAL Cross Flow Paint Booth Specifications:

Paint Booth Model: PSB-AFCF23B-AK
Inside Dimensions: 22'-6" L X 13’W X 8'-6" H
Outside Dimensions: 25'-4" L X 13'-4" W X 8'-10" H
Fan / Motor
24" Tube Axial Fan
3HP-3PH-230/460VAC-60HZ
Non-Spark, NEMA Rated
CFM: 9,500 @ .5 Static Pressure
Lighting: 6 Each T-8 / 4 Bulb Light Fixtures
Optional Items (Sold Separately):
8' Exhaust Duct Kit (25" Diameter)
Side Personnel Door Kit
30" Lighted Extension Panel Kit
30" Solid Extension Panel Kit
Electric Booth Heater 3 Phase
Electric Booth Heater 1 Phase
LED Lighting Upgrade Kit
Weight: 3,620 lbs
Pallet Dimensions: 121"L X 89"W X 66"H

View Cross Flow Draft Spray Paint Booth User & Installation Manual

View iDEAL PSB-AFCF23B-AK Paint Booth
