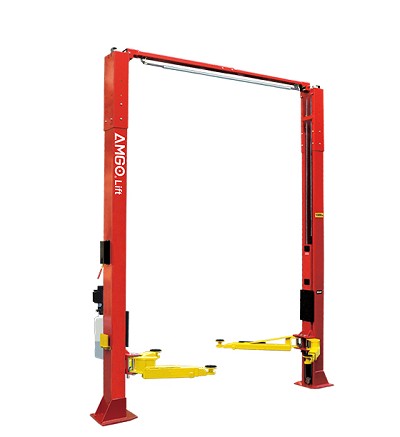

Amgo OHX-10H Extra-Tall Extra-Wide 10K Overhead 2 Post Car Lift at ToolPan

Product Features & Benefits
WARNING: California’s Proposition 65

Ready to lift bigger, wider, and taller vehicles with total confidence? The Amgo OHX-10H Overhead Two-Post Car Lift brings serious shop muscle with a 10,000-lb capacity and an extra-tall design built for modern vehicles. Its Super-Asymmetric layout lets you load cars in either symmetric or asymmetric configurations, giving you flexibility for everything from compact cars to long-wheelbase rides. A 3/8" aircraft-quality synchronization cable keeps lifting smooth and level, while the adjustable height and width let you dial in the perfect fit for your bay. Strong, adaptable, and shop-smart, the Amgo OHX-10H is built to handle the tough jobs and keep your workflow flying.

10,000lbs capacity.
The height and width are adjustable
Dual hydraulic direct-drived cylinders made on high standard.
"Super-Asymmetric" to load different vehicles in an asymmetric or symmetric configuration.
3/8" aircraft quality cable is used for synchronization.
Self-lubricating UHMW Polyethylene sliders and bronze bush.
Single-point safety release, and dual safety design.
Clearfloor design, provide unobstructed floor space.
Overhead safety stop device.
Automatic arm restraints keep the arms locked in their proper positions.
Adjustable heights for OHX-10H.
Stackable adapters 1.5", 2.5", 5" as standard.
Manufacturer Warranty:

2 Years on Electrical Components
3 Years on Hydraulics
5 Years on Steel Lifting Structure

AMGO OHX-10H is designed for extremely high lifting up to a maximum of 87 3/4?, offering greater comfort when working beneath a vehicle. It offers two height settings, reaching up to 14ft, and is fitted with extremely long carriages, ensuring strong performance, stability, and minimal maintenance. This 10,000lbs capacity lift is the ideal choice to fulfill your professional lifting requirements.

Specifications:

Lifting Capacity: 10,000 lbs
Max. Lifting Height (Without Extension Adapters): 73 3/4"
Max. Lifting Height (With Extension Adapters): 87 3/4"
Overall Height: 157" ~ 168" (Adjustable Height)
Overall Width: 134 15/16" ~ 140 7/8" (Adjustable Width)
Drive-Thru Clearance: 99 13/16" ~ 105 11/16" (Adjustable Width)
Width Between Columns: 112 19/32" ~ 118 1/2"
Minimum Pad Height: 3 3/8"
Lifting Time: 63 S
Motor: 2 HP, 220V/60Hz, Single Phase
Gross Weight: 1,739 lbs
Shipping Dimension: 145-1/16" L X 17-3/4" W X 33" H

Amgo OHX-10H - Extra Tall 10,000-lbs Capacity Symmetric/Asymmetric Overhead 2 Post Car Lift
