Product Features & Benefits
WARNING: California’s Proposition 65

ETL Certified Power Unit

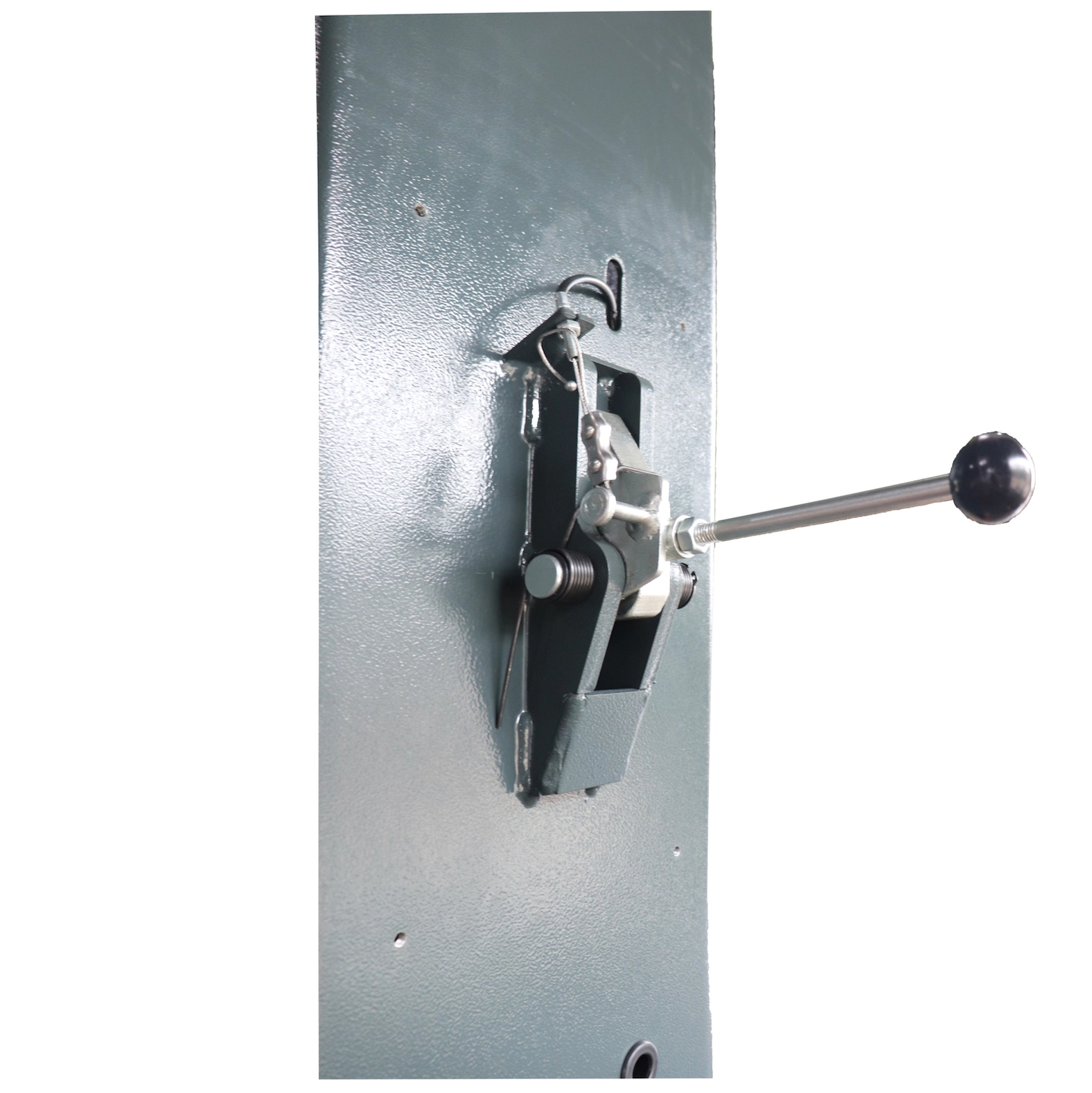

Base plate open top single point manual release

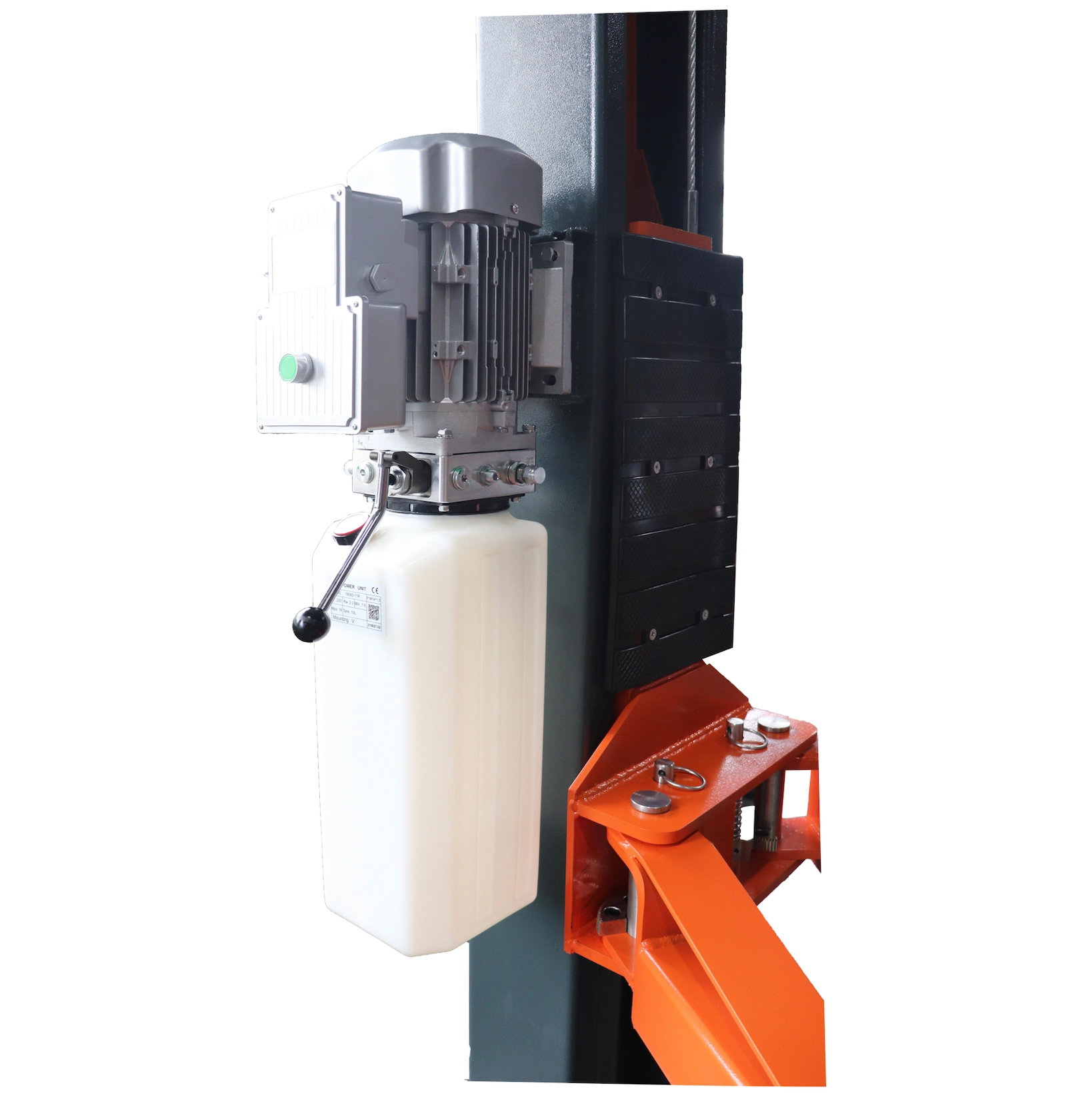

Aluminum motor power unit
Built-in anti-surge valves

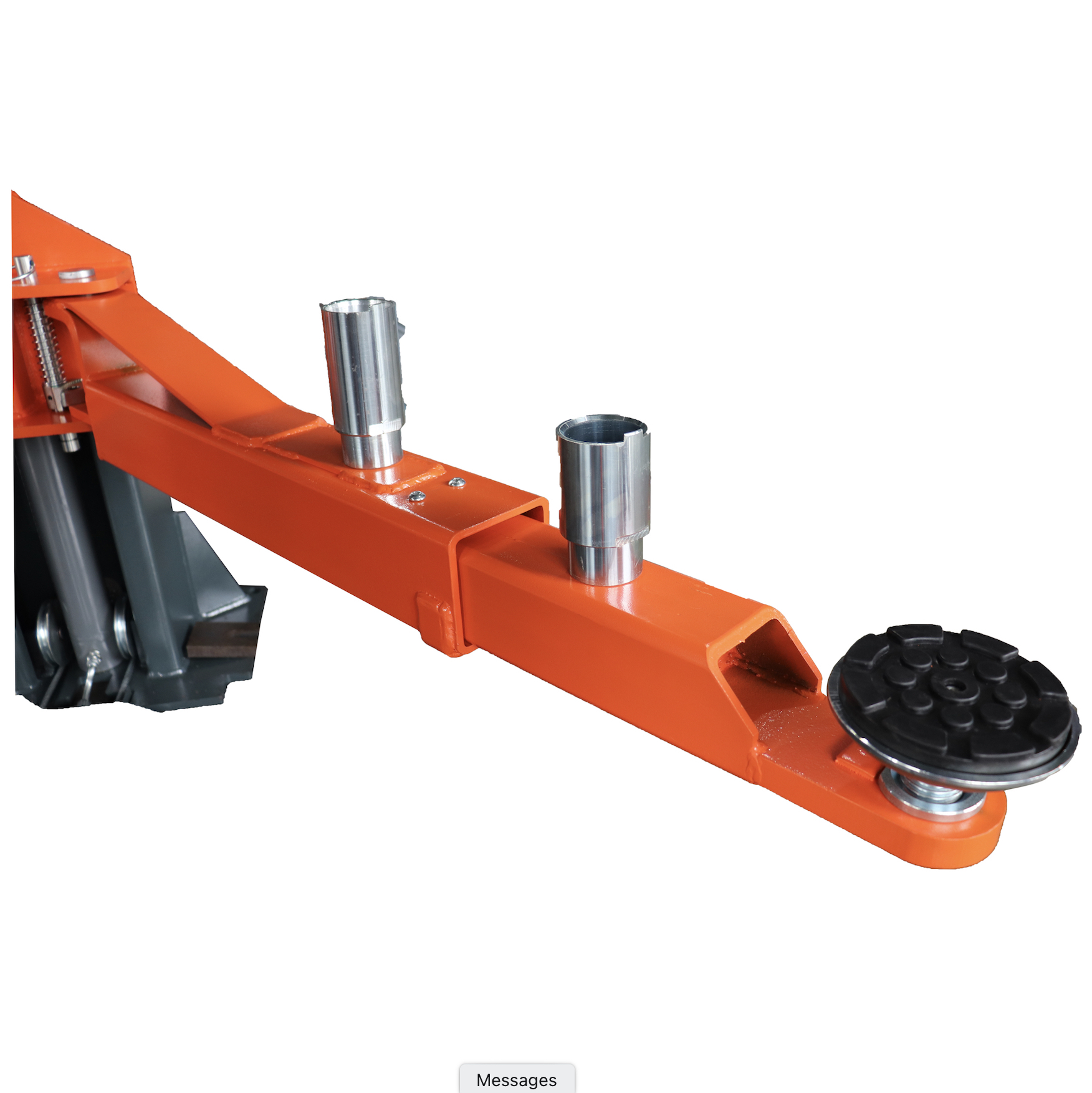

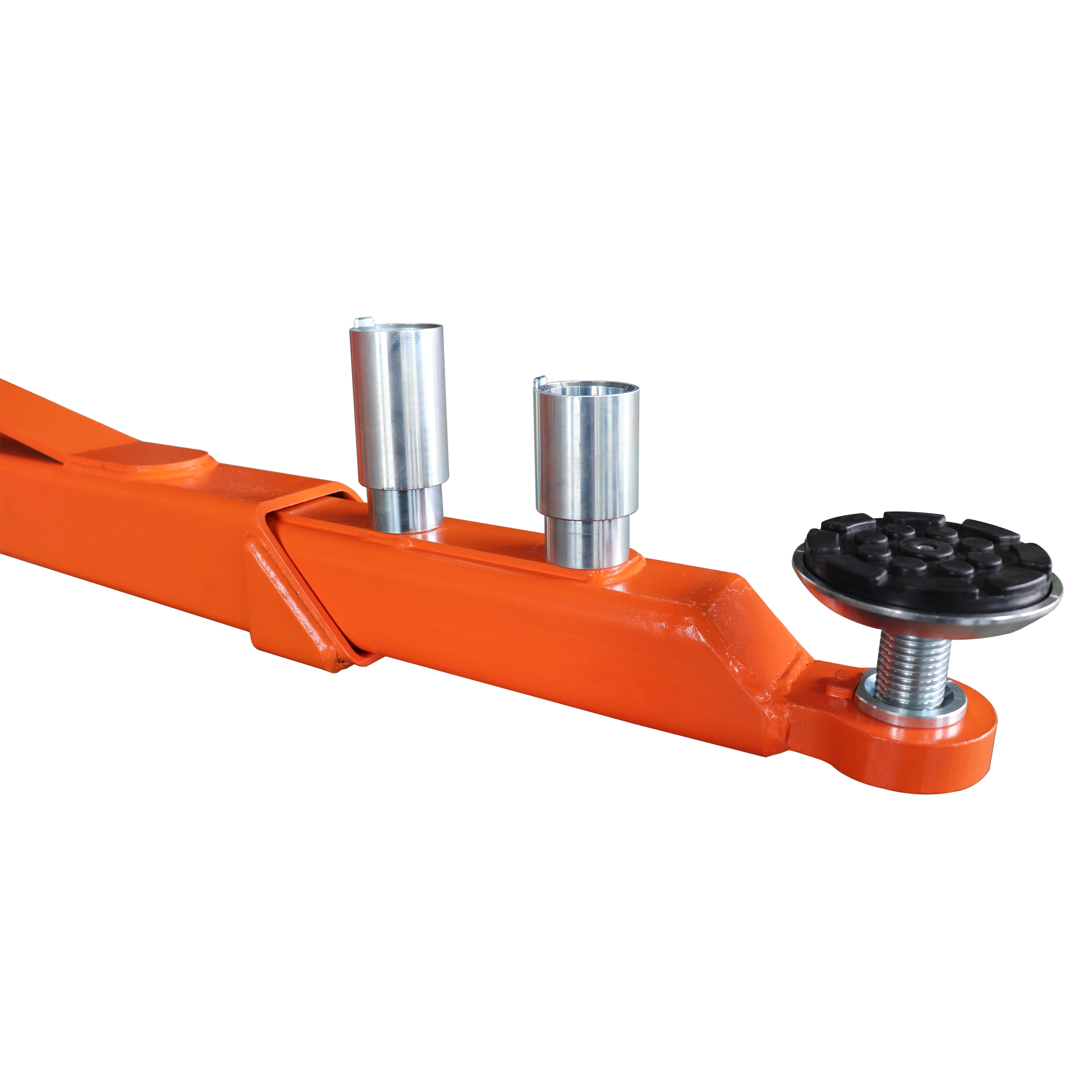

4 screw-up rubber pads and 8pcs truck adapters
Truck adapter size: 4 of each 2 3/4" and 4"

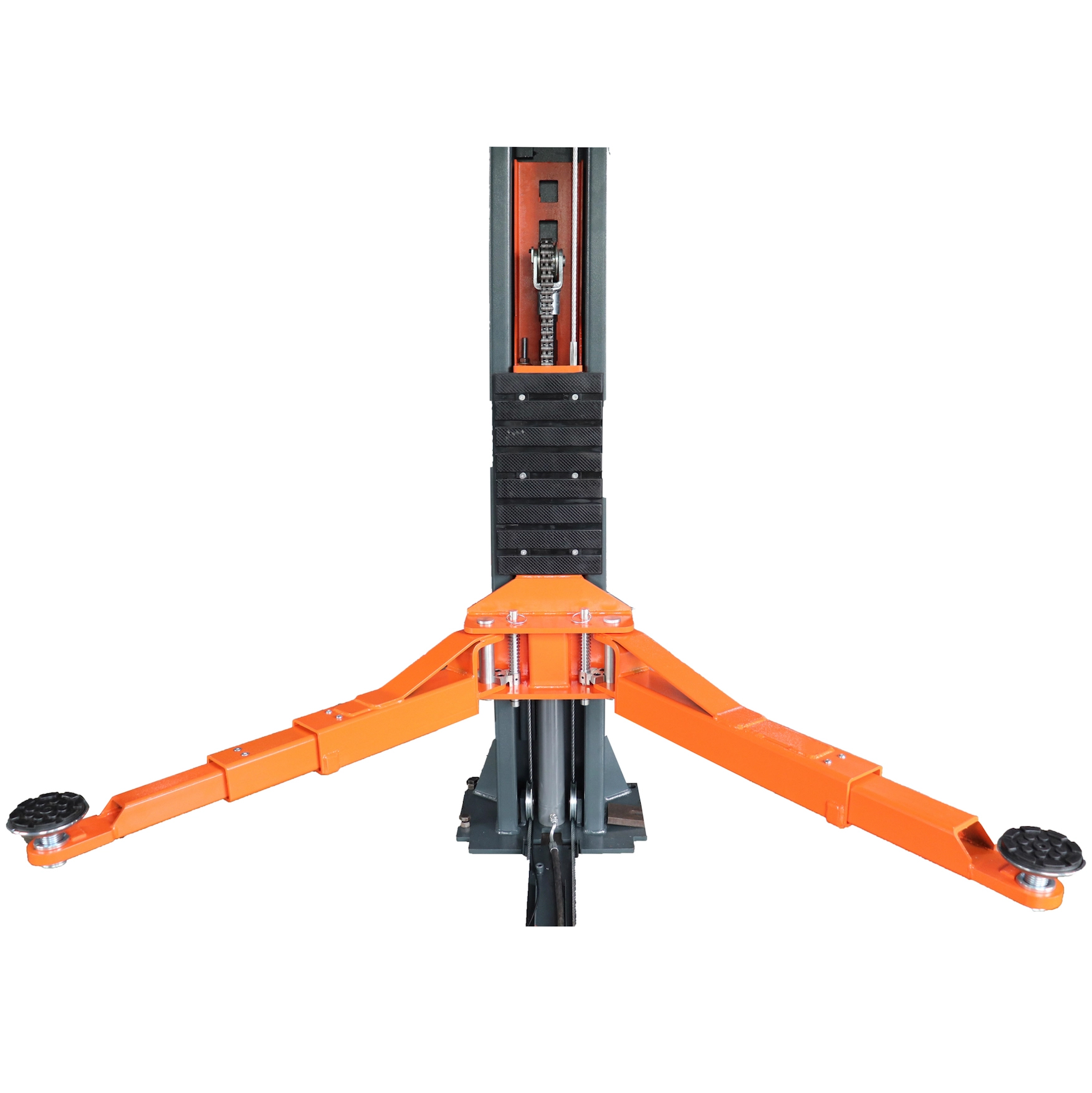

2 of 2-stage arms & 2 of 3-stage arms
Top limiter switch

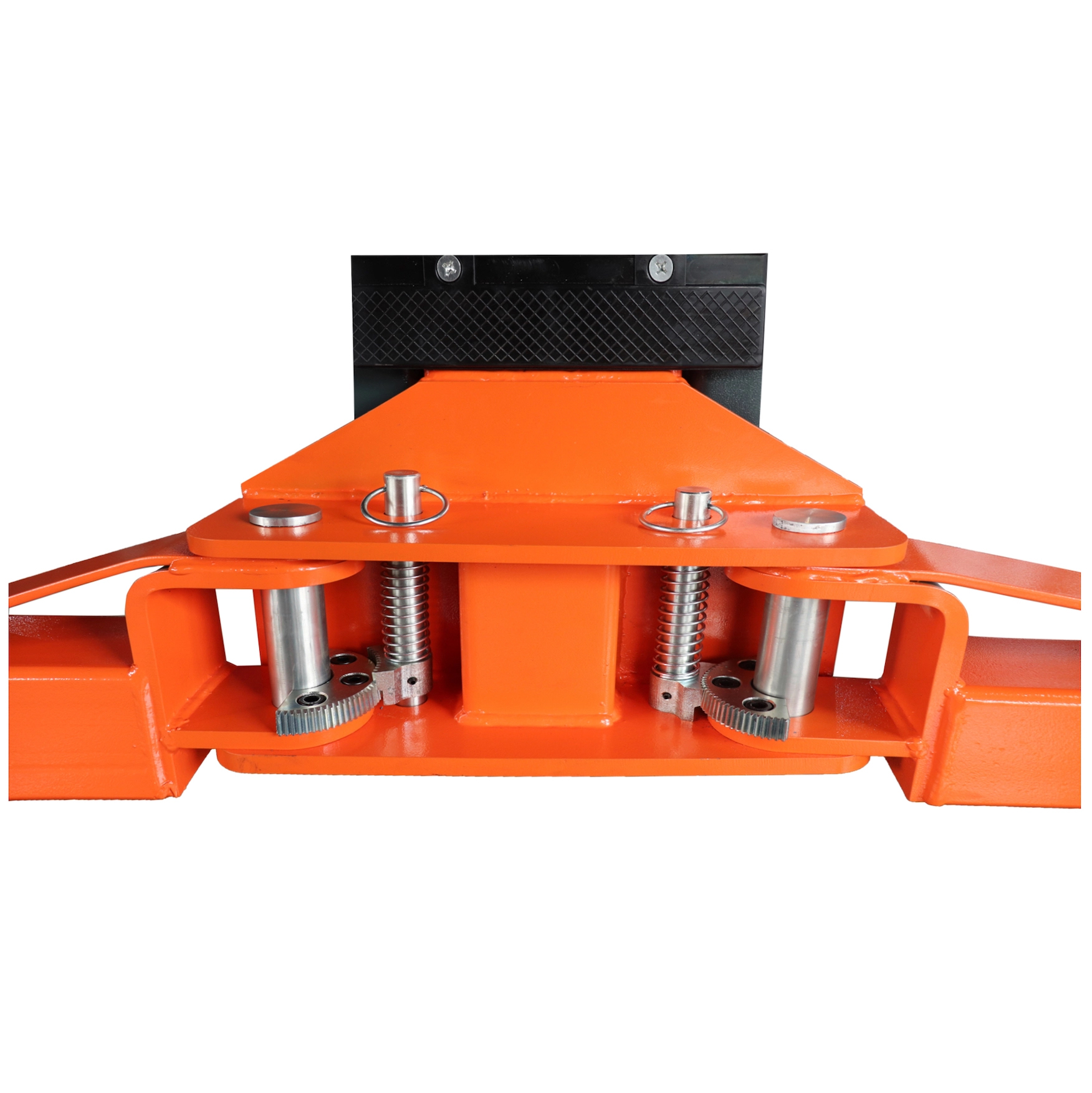

Automatic arm restraints
Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)

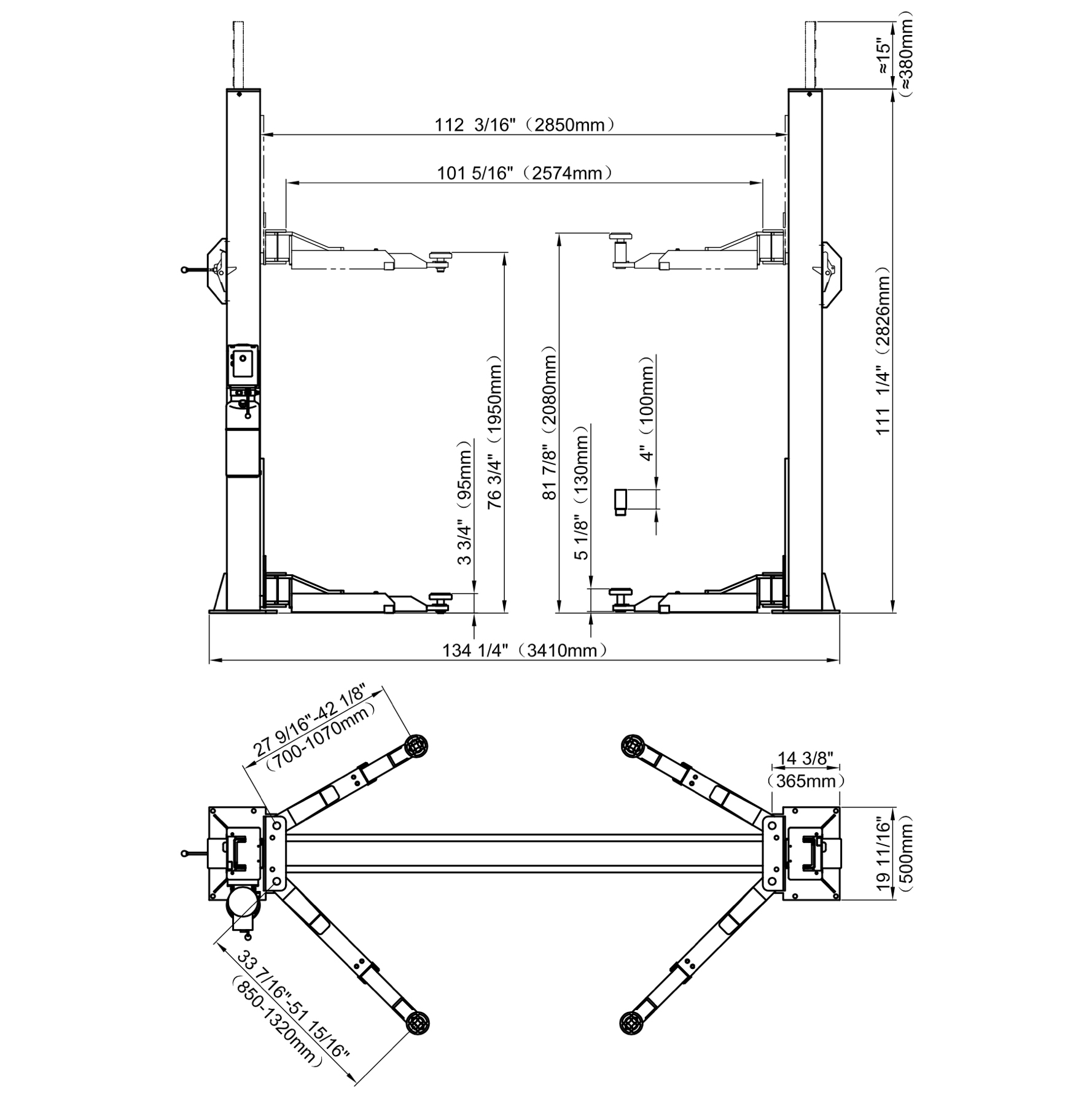

Stratus SAE-F10P 2-Post Lift Specifications:

Lifting Capacity: 10,000 LBS
Overall Height: 111 1/4"
Overall Width: 134 1/4"
Width Inside Column: 112 3/16"
Max Lifting Height with truck adaptor: 81 7/8"
Max Lifting Height without truck adapter, 76 3/4"
Min Height: 3 3/4"
Drive Through: 101 5/16"
Lifting Time: =40S=50S
Lowering Time: =30S=40S
Motor Power: 3 HP
Motor Voltage: 220 V (Recommend 30A Breaker)
Rated Frequency: 60 HZ
Phase: 1PH
Hydraulic Oil: Recommend AW46/AW32
Column Thickness of Steel: 5MM
Carriage Thickness of Steel: 5MM
Arms Thickness of Steel: 6MM

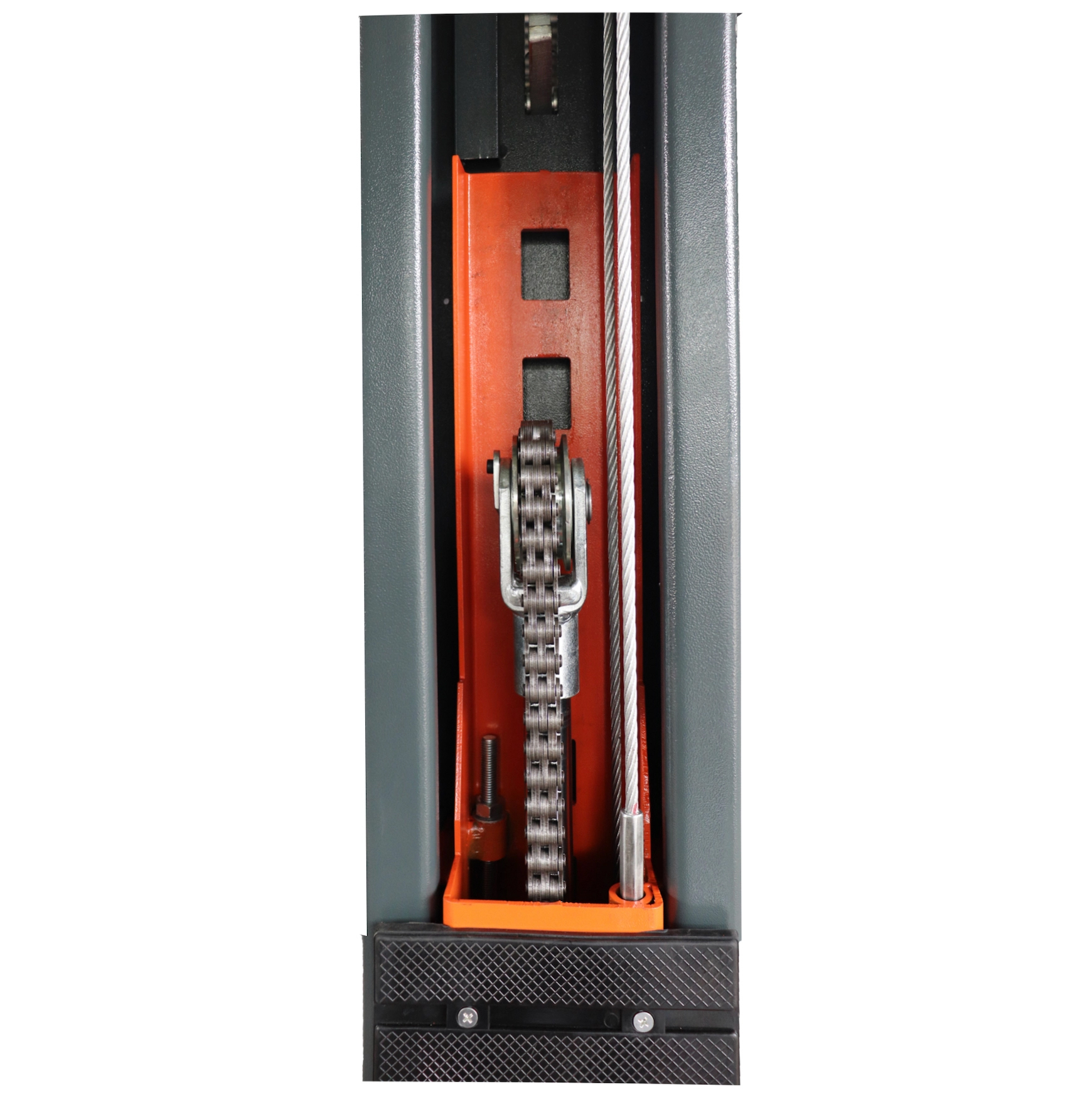

Cable Diameter: 0.354"(9MM)
Shipping Weight: 1,411 LBS
Shipping Size: 115"L * 24"W * 35"H

Manufacturer Warranty:

5 Years Lifting Structure
3 Years Hydraulic
2 Years Electrical
Note: **Parts only!! Labor costs for someone to install replacement parts are NOT covered. The hydraulic cylinders come with a 30 day full warranty and after 30 days, Stratus will provide a seal kit**

Shipping Surcharge: $425 freight surcharge applied to shipping this item in the following states: OR, WA, ID, MT, ND, SD, ME.

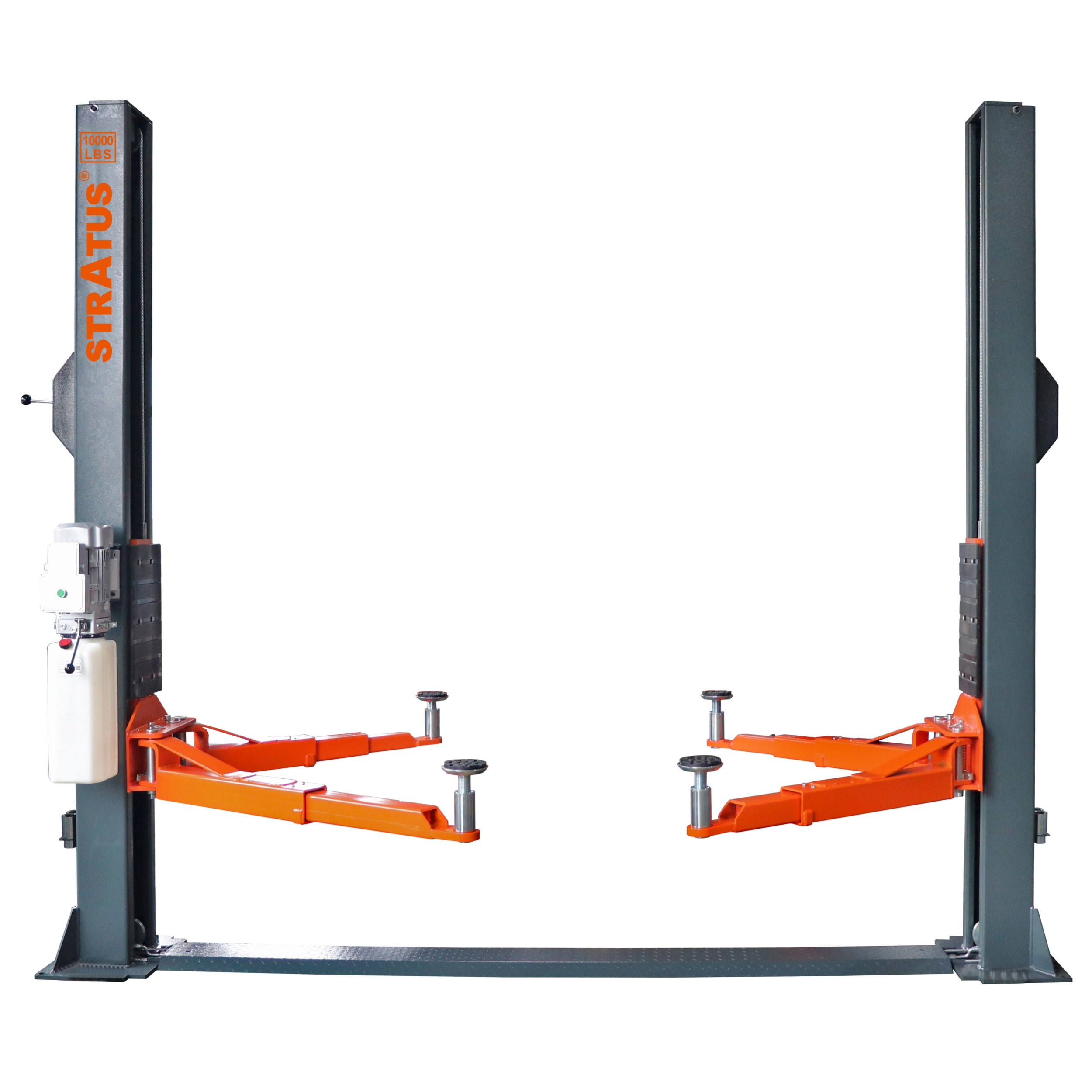

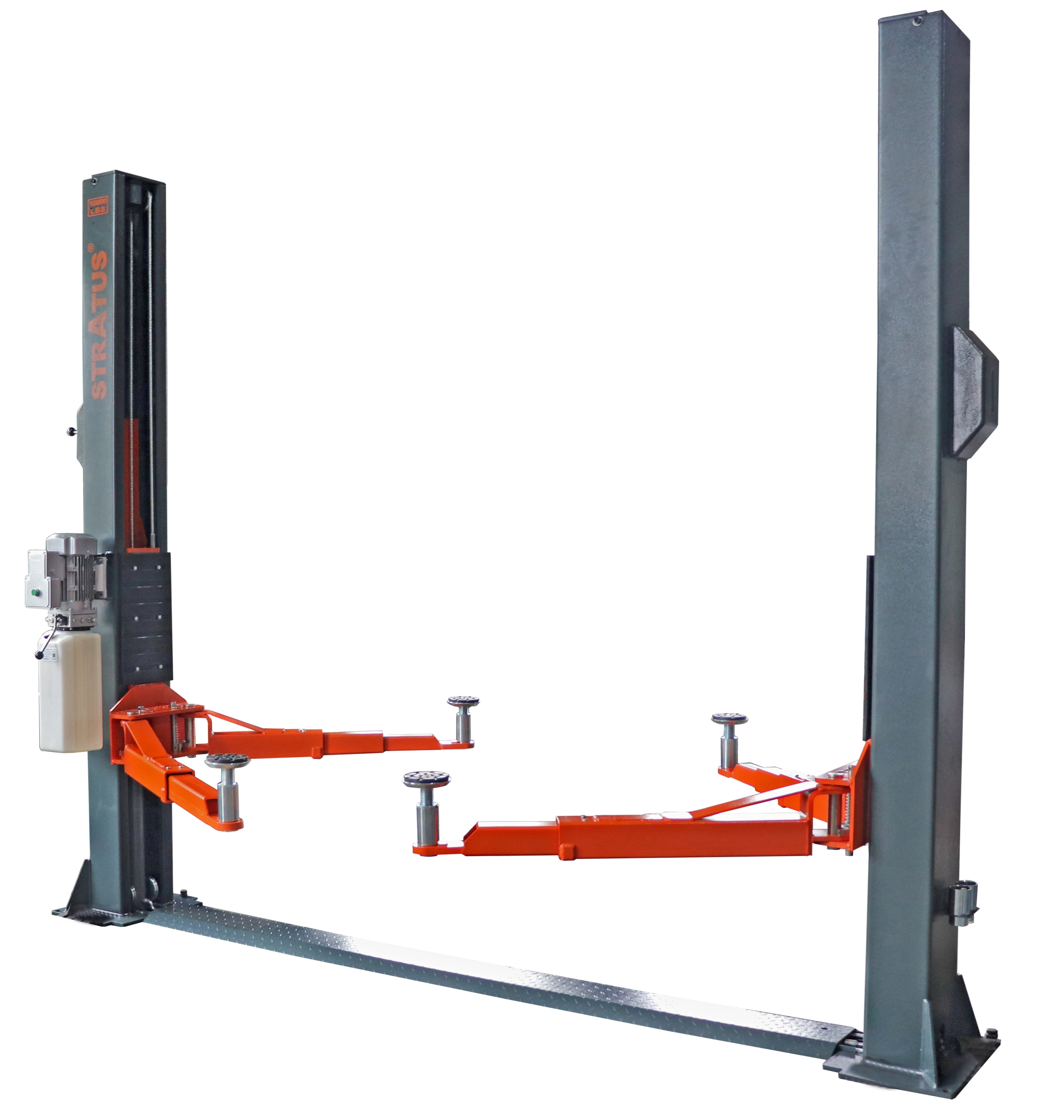

Stratus SAE-F10P - PRO 10,000-lbs Capacity Floor Plate Two Post Car Lift with Single Point Manual Release - 220V

Part #: SAE-F10P

Availability: In Stock

Stratus SAE-F10P - PRO 10,000-lbs Capacity Floor Plate Two Post Lift with Single Point Manual Release - 220V

Retail Price:$6,000.00

Your Savings:$1,862.00(31%)

Our Price: $4,138.00

Free Shipping
