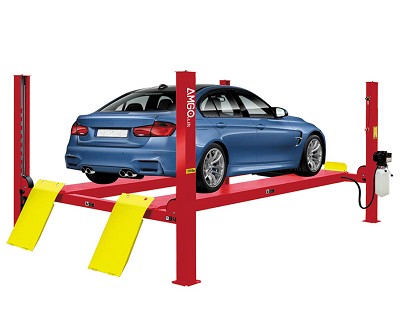

Ready to lift bigger, wider, and smarter? The AMGO PRO-12SX Four-Post Car Lift brings serious shop muscle with a 12,000-lb capacity built for cars, SUVs, and light trucks that don’t mess around. Its stepless adjustable platform width lets you dial in the perfect fit for any vehicle, while aircraft-grade, high-quality cables deliver smooth, confidence-inspiring lifting every time. Strong, flexible, and built to perform day in and day out, the Amgo PRO-12SX turns heavy-duty jobs into smooth, satisfying wins—and makes your shop look

12,000 lbs capacity.
AMGO ETL certified power unit comes as standard.
Mechanical self-locking safety device with air-driven lock release.
Both primary multiple safety locks and cable-slack protection system are equipped as standard.
Cable-driven, utilizing aircraft standard high quality cables.
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
Non-skid diamond platforms.
Stepless adjustable width between platforms.
Manufacturer Warranty:

2 Years on Electrical Components
3 Years on Hydraulics
5 Years on Steel Lifting Structure

The Pro-12SX enhances the comfort to drive an vehicle on the non-skid platforms by offering a drive-through width of over 100". It surpasses most similar options available in the market. The PRO-12SX, with a capacity of up to 12000 lbs to accommodate various vehicles, is undoubtedly the ideal companion for garage and shop owners.

Specifications:

Lifting Capacity: 12,000lbs
Lifting Time: 45s
Overall Length (Inc Ramps): 232 11/16"
Overall Length (No Ramps): 196 3/4"
Overall Width: 132 1/8"
Width Between Columns: 118 1/8"
Max. Lifting Height: 74"
Max. Lock Height to top of runway: 70 7/8"
Overall Height: 86"
Minimum Height: 6 5/8"
Max. Underneath Height: 68 1/2"
Max. Lock Underneath runway: 65 3/8"
Drive-Thru Clearance: 104 3/16"
Width Between Runways:

43 1/4"
Min. 3 3/8"
Max. 53 3/4"

Outside Edge of Runways:

83 1/4"
Min. 43 3/8"
Max. 93 3/4"

Gross Weight: 2,251lbs
Motor: 2,0HP, 220V / 60Hz, Single Phase
Shipping Dimension: 201" L X 22 1/4" W X 60" H
