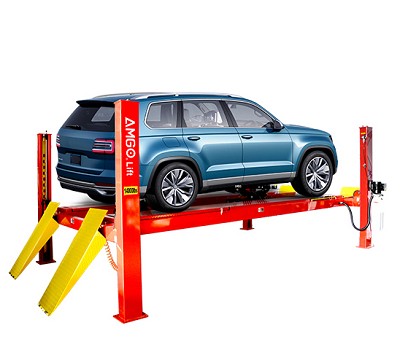

Amgo PRO-14AE Extra-Long 14,000-lbs Capacity 4 Post Car Alignment Lift at ToolPan

Product Features & Benefits
WARNING: California’s Proposition 65

Ready to align bigger vehicles with confidence and style? The Amgo PRO-14AE Four-Post Alignment Lift is built to handle serious lifting with confidence with a 14,000-lb capacity and extended runways built to handle everything from passenger cars to commercial vehicles. Integrated slip plates and adjustable turnplate pockets make precise alignments smooth and hassle-free, while the rock-solid four-post design keeps every vehicle steady from start to finish. Built for accuracy, versatility, and nonstop productivity, the PRO-14AE turns demanding alignment jobs into clean, professional wins—every single time.

14,000 lbs capacity.
AMGO ETL certified power unit comes as standard.
Mechanical self-locking safety device with air-driven lock release.
Both primary multiple safety locks and cable-slack protection system are equipped as standard.
Cable-driven, utilizing aircraft standard high quality cables.
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
Non-skid diamond platforms.
Turnplates & Rolling Jacks are NOT Included.
Stepless adjustable width between platforms.
Integrated slip plates and adjustable turnplate pockets.
Manufacturer Warranty:

2 Years on Electrical Components
3 Years on Hydraulics
5 Years on Steel Lifting Structure

AMGO PRO-14AE is excellent in scaling up your business with its supreme-long runways capable of managing both general services and alignment works for a range of vehicles from passenger cars to commercial vehicles. It excels in being sturdy and flexible that offering the optimal performance, longevity durability and safety.

Specifications:

Lifting Capacity: 14,000 lbs
Lifting Time: 81s
Overall Length (Inc Ramps): 285 1/2"
Overall Length (No Ramps): 245 1/16"
Overall Width: 130 7/8"
Width Between Columns: 116"
Max. Lifting Height: 77 3/16"
Max. Lock Height to top of runway: 74"
Overall Height: 86 3/16"
Minimum Height: 9 7/8"
Max. Underneath Height: 68 1/2"
Max. Lock Underneath runway: 65 3/8"
Drive-Thru Clearance: 102 1/16"
Width Between Runways:

47"
Min. 3 3/8"
Max. 54 1/2"

Outside Edge of Runways:

87"
Min. 43 3/8"
Max. 94 1/2"

Gross Weight: 3,377 lbs
Motor: 2,0HP, 220V / 60Hz, Single Phase
Shipping Dimension: 246 1/4" L X 22 1/4" W X 61 1/2" H

Amgo PRO-14AE - 14,000-lbs Capacity 4 Post Car Alignment Lift with Extended Runway
