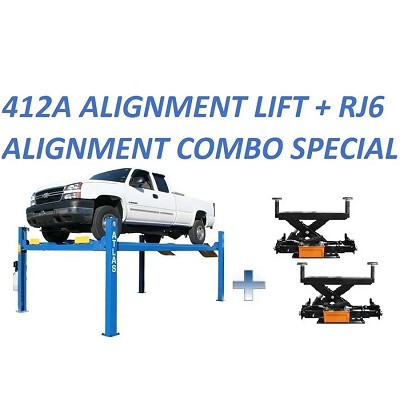

This Combo Package Incudes Atlas 412A Alignment Lift + RJ6BK Rolling Jacks

Atlas 412A Alignment 4 Post Car Lift:

Commercial Grade
Powder Coat Finish
Alignment Slip Plates And Turntables
Pneumatic Single-Point Lock Release
Diamond Plated Runway Surface
Mounting Hardware
5-Year Structural, 2-Year Power Unit & Cylinder Manufacturer Warranty

The Atlas® 412A 12,000 pound capacity four post alignment lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas® lifts offer many exclusive features not found on many other competitor's lifts.

Besides having all the heavy duty features of the Atlas® 412, such as “tracks” between the runways to allow the use of a rolling bridge jack on the lift the 412A features slip plates and alignment turntables. The slip plates are built in and are assured to be level with the turntables. The turntables can be set in different positions on the runway to accommodate a wide variety of wheelbases. The 412A also features metal cover plates to replace the turntables when not in use and so the lift can be used for more than just alignments.

This combo package also includes two of the the popular Atlas® RJ6BK rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Specifications:

Capacity: 12,000 lb.
Lifting Height: 75 1/2" (6' 3 1/2")
Overall Width Of Columns (Without Motor): 126" (10' 6")
Overall Width Of Columns (With Motor): 135" (11' 3")
Overall Length With Approach Ramp: 230" (19' 2")
Overall Length Without Approach Ramp: 200" (16' 8")
Length Between Columns: 184 1/4" (15' 4 1/4")
Runway Length: 186 1/2" (15' 6 1/2")
Runway Width: 22" (1' 10")
Thickness Of Runway: 7"
Width Between Runways: 44 1/2" (3' 8 1/2")
Width Between Runway Rails: 42" (3' 6")
Outside Runway To Outside Runway: 84 3/4" (7' 3/4")
Clearance Under Runways: 68 1/4" (5' 8 1/4")
Clearance Between Columns: 112 1/4" (9' 4 1/4")
Height Of Columns: 82" (6' 10")
Maximum Wheel Base: 185" (15' 5")
Drive Thru: 98 1/2" (8' 2 1/2")
Motor/Electrical Requirement: 220 Volt, Single Phase;A 30 amp Breaker Is Recommended.
Shipping Weight: 2,700 lb.

Atlas RJ6BK Specifications:

Capacity: 6,000 lbs
Minimum Width: 35"
Maximum Width: 55"
Distance Between Runway Capability: 32" - 52"
Minimum Lifting Height: 8 1/4"
Maximum Lifting Height (w/ Adapters): 21"
Air Requirement: 70-115 PSI
Shipping Weight: 350 lbs
Adapter Heights: 2 Each 2", 3"
Arm Hole/Adapter Peg Size: 1 1/2"

Atlas Equipment ATTD-412A-COMBO - Atlas 412A Alignment 4 Post Lift & RJ6BK Rolling Jacks Combo

Part #: ATEATTD-412A-COMBO

Availability: Out of Stock

Retail Price:$18,898.25

Your Savings:$8,099.25(43%)

Our Price: $10,799.00
