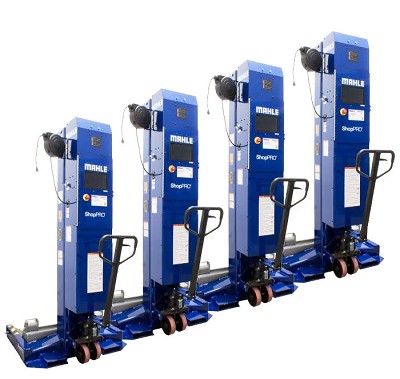

Meet serious lifting power without the hassle of cords or fixed bays—the Mahle CML-9X4 Wireless Mobile Column Lift Set delivers a massive 19,000 lbs capacity per column with the freedom to work anywhere in your shop. Powered by the industry’s original wireless communication system and a sleek touch-screen graphic control panel, these 24-volt mobile columns keep every movement perfectly synchronized. The patented self-centering adjustable carriage grips oversized tires with confidence, creating one of the safest and most stable lifting environments on the market.

Designed for real-world versatility, the system offers an adjustable lift height up to 69 inches, giving you wide-open access for brakes, suspension, transmission, and full under-vehicle service. The wide, adjustable carriage handles today’s larger commercial wheels with ease, while the cordless design eliminates trip hazards and bay limitations. Whether you’re servicing buses, fire apparatus, vocational trucks, or heavy fleet vehicles, the Mahle CML-9X4 turns any flat surface into a high-performance service bay—fast, flexible, and built to make every job smoother.

• Certification: ALI Certified
• Capacity: (Each) 19,000 lb (8,165 kg)
• Max. Hydraulic Operating Pressure: 2,600 psi (17.9 MPa)
• Min/Max Wheel Diameter:  5 in / 24.5 in (127 mm / 622 mm)
• Min (2)/Max (4) Lift Height:  32 in / 69 in (813 mm / 1,753 mm)
• Lift Speed (Max Load): 60 in/min (1,524 mm/min)
• Weight: 1,510 lb (685 kg)
• Height: 88.5 in (2,248 mm)
• Height at Full Lift: (157.13 in (3,991 mm)
• Operating Peak Power: 4 HP (3 kW)
• Operating Voltage: 24 VDC Nominal
• Charger Voltage Required: 70-130 VAC @50-60 Hz
