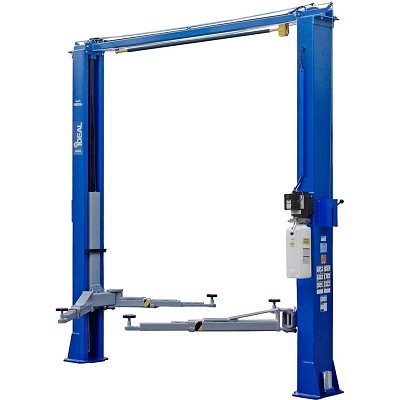

Ready to lift with confidence and style? The iDEAL TP10KAC-DX Two-Post Overhead Lift brings 10,000 lbs of ALI-certified lifting power to your shop in a sharp blue finish that looks as good as it performs. The bi-symmetric arm design with 3-stage front arms makes vehicle positioning easy, while the low-profile swing arms slide under low-clearance vehicles without a fight. With a 71" lift height and an overhead clear-floor setup, you get wide-open access underneath for faster, more comfortable work. Strong, smart, and shop-ready, the TP10KAC-DX is built to lift your workflow to the next level.

10,000 LBS Capacity
Bi-Symmetric Arm Design
3 Stage Front Arms
Low Profile Swing Arm Design
Adjustable Spin Up Pads
2" & 4" Stackable Truck Adapters Included
Single Point Lock Release
Automatic Arm Restraints
Rigid Single Piece Column
Direct Pull Hydraulic Cylinder
Rubber Door Guards
Padded Overhead Shutoff
ALI Certified
MET UL/CSA Certified Duro Power Unit
One Year Manufacturer Warranty on Parts (No Labor)
Five Years Manufacturer Warranty on Lifting Structure.

The iDEAL TP10KAC-DX 10,000 lbs. ALI Certified two post car lift is a premium Bi-Symmetric design clear floor vehicle lift. Offset three stage short arms and a low pad height of 4” make this lift perfect for a wide range of vehicles. Our rigid single piece column and direct pull cylinder combined with single point lock release and clean design make this lift one of our most popular models.

Specifications:

Capacity: 10,000 lbs.
Overall Width: 137 3/16"
Overall Width w/Power Unit: 145 1/2"
Overall Height: 144"
Minimum Ceiling Height: 12'
Low Pad Height: 4"
Max. Lift Height: 71"
Max. Lift Height w/Tallest Adapter: 76 1/2"
Width Between Columns: 116"
Drive Thru Width: 104"
Floor to Overhead Shutoff: 136"
Arm Reach Front: 23" – 45"
Arm Reach Rear: 41" – 57"
Maximum Load Per Arm: 2,500 lbs
Electric Power Unit: 220VAC, 20 Amp, 1 Phase
Rise Speed: 50 Seconds
Minimum Concrete: 4 1/4" / 3000PSI
Operating Pressure: 3,050 PSI
Shipping Weight: 1,705 lbs.
Shipping Dimensions: 140" L X 19" W X 40" T

iDEAL TP10KAC-DX - 10,000 lbs Capacity ALI-Certified 2-Post Overhead Lift - Blue - 220V

Part #: TP10KAC-DX

Availability: In Stock

iDEAL TP10KAC-DX - 10,000 lbs Capacity Ali-Certified 2-Post Overhead Lift - Blue - 220V

Retail Price:$6,500.00

Your Savings:$1,500.00(23%)

Our Price: $5,000.00
