Ready to lift heavy without the heavy attitude? This 52,000 lb mobile column lift set brings serious muscle to your shop floor, letting you roll four rugged columns right where you need them and raise trucks, vans, and fleet vehicles with confidence. With adjustable forks to fit a variety of wheel sizes, smart synchronized control for smooth, level lifting, and a tough hydraulic system built to take on daily use, this lift makes hard work feel a whole lot lighter.

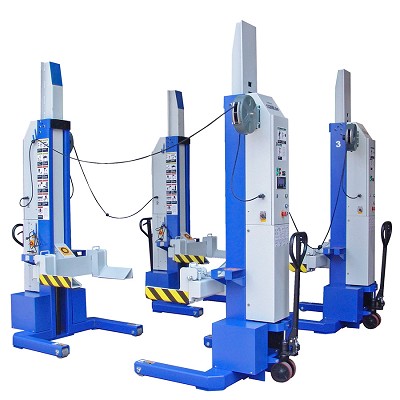

13,000 lbs Capacity (each) Mobile Single Column Lift (Set of 4)
Total Capacity of 52,000 lbs
Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
Large carriage bearings provide durable, fast and easy lifting
Easy to use master controller for individual or paired synchronized operation
Adjustable lifting forks accommodate the widest range of wheels
Easily positioned with pallet jack style wheel
Heavy-duty hydraulic system
LCD screen with keyboard offers easy to read visuals of settings and lifting height
Independent mechanical locking system
Emergency switch on each column provide highest safety assurance
One Year Manufacturer Warranty on Parts.
Five Years Manufacturer Warranty on Lifting Structure.

Specifications:

Lift Model: MSC-13K-B-452
Column Configurations: 4 Column
Total Capacity: 52,000 lbs
AC Power (Input, Per Column): 100-140VAC, 60Hz, 1 PH
DC Power (Output, Per Column): 24VDC
Lifting Height: 67.1"
Column Heights – Min/Max: Min. 88.6" / Max 155.5"
Overall Width: 44.1"
Fork Adjustable Range: 6.3" – 22"
Fork Length: 14"
Fork to Column Clearance: 9.3"
Rise Time: 75 S
Descent Time: 60 S
Maximum Distance between Columns: 32.8'
Minimum Concrete Surface Strength: 3000 PSI
Noise Level: 70 dB(A)
Set-Up / Operation: Indoors
Battery Type (Not included): 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105)
Ship Weight: 1,210 lbs per Column

View iDEAL MSC-13K-B-452 Mobile Single Column Lift User Manual

iDEAL MSC-13K-B-452 - Set of 4 Mobile Single Column Lifting System (13,000 lbs Capacity Each)

Part #: MSC-13K-B-452

Availability: In Stock

iDEAL MSC-13K-B-452 - 13,000 lbs Capacity Mobile Single Column Lifting System (Set of 4)

Retail Price:$45,000.00

Your Savings:$11,410.00(25%)

Our Price: $33,590.00
