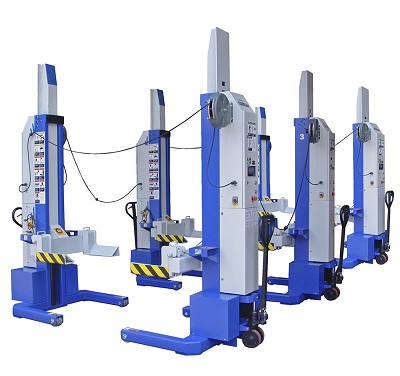

Ready to lift big, heavy vehicles with total control? The iDEAL MSC-13K-B-678 Mobile Single Column Lift System brings serious shop power with six columns rated at 13,000 lbs each, working together in perfect sync. A Siemens PLC and electro-optical encoders keep every column lifting smoothly and level, while large carriage bearings ensure fast, durable performance day after day. Each column features an easy-to-read LCD screen with keyboard, so settings and lift height (up to 67.1") are always clear and simple to manage. Mobile, precise, and built for heavy-duty work, this system turns lifting large trucks and fleets into a smooth, confidence-boosting operation.

13,000 lbs Capacity (each) Mobile Single Column Lift (Set of 6)
Total Capacity of 78,000 lbs
Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
Large carriage bearings provide durable, fast and easy lifting
Easy to use master controller for individual or paired synchronized operation
Adjustable lifting forks accommodate the widest range of wheels
Easily positioned with pallet jack style wheel
Heavy-duty hydraulic system
LCD screen with keyboard offers easy to read visuals of settings and lifting height
Independent mechanical locking system
Emergency switch on each column provide highest safety assurance
One Year Manufacturer Warranty on Parts.
Five Years Manufacturer Warranty on Lifting Structure.

Specifications:

Lift Model: MSC-13K-B-678
Column Configurations: 6 Column
Total Capacity: 78,000 lbs
AC Power (Input, Per Column): 100-140VAC, 60Hz, 1 PH
DC Power (Output, Per Column): 24VDC
Lifting Height: 67.1"
Column Heights – Min/Max: Min. 88.6" / Max 155.5"
Overall Width: 44.1"
Fork Adjustable Range: 6.3" – 22"
Fork Length: 14"
Fork to Column Clearance: 9.3"
Rise Time: 75 S
Descent Time: 60 S
Maximum Distance between Columns: 32.8'
Minimum Concrete Surface Strength: 3000 PSI
Noise Level: 70 dB(A)
Set-Up / Operation: Indoors
Battery Type (Not included): 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105)
Ship Weight: 1,210 lbs per Column

View iDEAL MSC-13K-B-678 Mobile Single Column Lift User Manual

iDEAL MSC-13K-B-678 - Set of 6 Mobile Single Column Lifting System (13,000 lbs Capacity Each)

Part #: MSC-13K-B-678

Availability: In Stock

Retail Price:$65,000.00

Your Savings:$13,490.00(21%)

Our Price: $51,510.00
