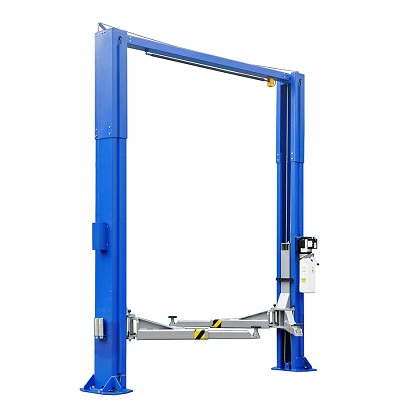

Ready to lift bigger vehicles with total confidence? The iDEAL TP12KSC-DX Two-Post Overhead Lift brings serious shop muscle with a 12,000-lb capacity and ALI certification to back it up. Built with a heavy-duty arm restraint system and spin-up lift pads with a low 5" minimum pad height, it makes positioning quick, safe, and frustration-free. With a towering 75" max lift height, a wide 122" between the columns, and a generous 109" drive-thru clearance, this lift is made for trucks, vans, and demanding daily service. Strong, smooth, and shop-ready, the TP12KSC-DX turns heavy jobs into confident, no-stress lifts.

ALI Certified
12,000 lbs capacity
Symmetric Arms
Rubber Door Guards
Direct Drive push Cylinders
Single Point Lock Release
Heavy Duty Arm Restraint System
Spin Up Lift Pads 5” min. Pad Height
Stackable Adapters Included
External hose guards
Duro Certifed Power Unit – MET, UL, CSA
One Year Manufacturer Warranty on Parts (No Labor)
Five Years Manufacturer Warranty on Lifting Structure.

The New iDEAL TP12KSC-DX 12,000 lb. ALI Certified Heavy Duty Two Post Lift is a premium symmetric design clear floor vehicle lift with the latest design features, now including low profile swing arms, adjustable swivel pads & single point cable lock release. The symmetric arm configuration provides stable lifting, making it perfect for super duty & light duty trucks along with most passenger cars. The direct ‘push’ drive cylinders, hose & door guards and automatic arm restraints complete the package for a premium, high quality lift, all at a great value!

Specifications:

Capacity: 12,000 lbs.
Height Overall: 168-1/2"
Width Overall w/ Power Unit: 151-5/16"
Max Lift Height: 75"
Width Between Columns: 122"
Min. Pad Height: 4-7/8"
Drive Thru Clearance: 109"
Lifting Speed: 50S
Asymmetric/Symmetric: Symmetric
Clear Floor/Floor Plate: Clear Floor
Short Arm Reach – min/max: 37-5/8" – 57"
Long Arm Reach – min/max: 37-5/8" – 57"
Max Load Per Arm: 3,000 lbs
Ship Weight: 2,295 lbs
Power:220V – 20 AMP – 1 PH

iDEAL TP12KSC-DX - 12,000 lbs Capacity ALI-Certified 2-Post Overhead Lift - Blue - 220V

Part #: TP12KSC-DX

Availability: In Stock

Retail Price:$9,000.00

Your Savings:$2,100.00(23%)

Our Price: $6,900.00
